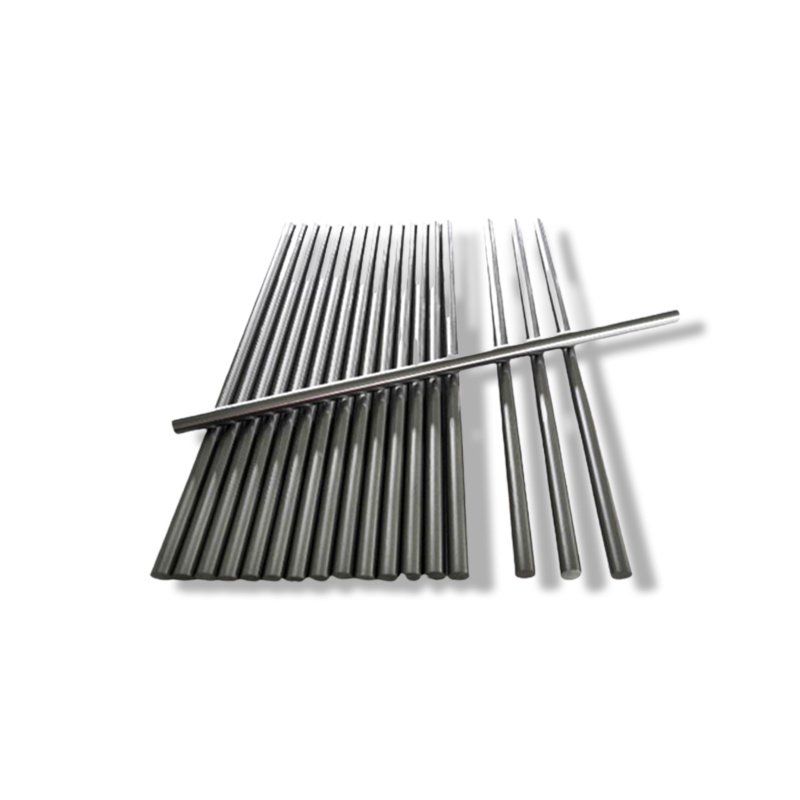

Hastelloy B-2 Bar

The chemical composition of Hastelloy B2 bar mainly includes nickel, chromium, molybdenum and a small amount of iron, tungsten and other elements. The combination of these elements gives the material remarkable corrosion resistance and high-temperature strength. The nickel element leads to good corrosion resistance, the chromium element enhances the material's corrosion resistance in an oxidizing environment, and the molybdenum element improves the material's corrosion resistance in a reducing environment. The addition of elements such as iron and tungsten further enhances the strength and hardness of the material. Hastelloy B2 bar has good processing properties and can be used for hot processing and cold processing.



Product Parameters

Product Name		Hastelloy B-2 Bar
Outer Diameter	Round Bar	4mm-500mm
	Hexagon Bar	18mm-57mm (11/16″ to 2-3/4″)
	Square Bar	18mm-47mm (11/16″ to 1-3/4″)
	Flat Steel	1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling



Chemical Composition

C	Si	P	S	Cr	Mn	Fe	Co	Ni	Mo
0.02 max	0.1 max	0.04 max	0.03 max	1.0 max	1.0 max	2.0 max	1.0 max	Remainder	26.0 - 30.0



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
110	51	40



Physical Performance

	Units	Temperature in°C
Density	9.22 g/cm³	22°C
Specific Heat	0.089 Kcal/kg.C	Room
Melting Range	1370-1418°C	-
Modulus of Elasticity	217 KN/mm²	Room
Electrical Resistivity	137 µΩ.cm	0 °
Coefficient of Expansion	10.3 µm/m °C	20-93°
Thermal Conductivity	11.1 w/m-° K	0°



Scope of Application

B- 2 is used in chemical processes, vacuum furnaces, mechanical parts in reduced pressure environments, etc.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
