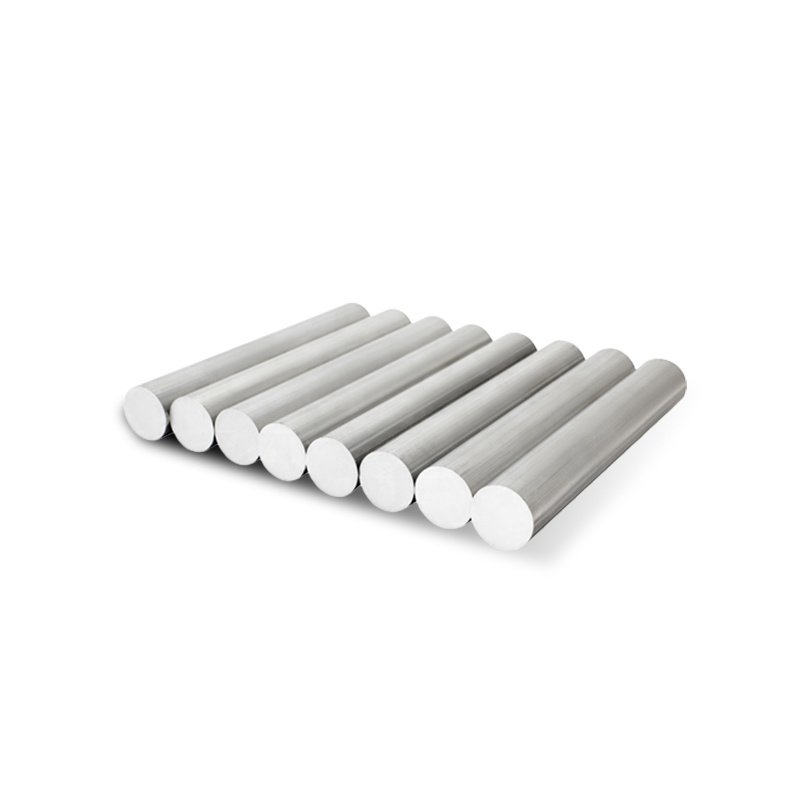

Incoloy 925 Bar

Incoloy 925 alloy is primarily composed of nickel, chromium, iron and other elements, and also contains a certain amount of aluminum, titanium. This alloy has good corrosion resistance and can maintain stable performance in oxidizing and reducing environments. In addition, Incoloy 925 also has good high-temperature strength and creep properties, and can maintain good mechanical properties in high-temperature environments. Other excellent properties include excellent welding and manufacturing processability. Besides, Incoloy 925 bars can resist oxidation and hot corrosion in high-temperature oxidizing environments. One thing to note is Incoloy 925 bar shows good resistance to stress corrosion cracking in chlorine-containing media and is suitable for seawater environments and chemical process applications containing chlorides.



Product Parameters

Product Name		Incoloy 925 Bar
Outer Diameter	Round Bar	4mm-500mm
	Hexagon Bar	18mm-57mm (11/16″ to 2-3/4″)
	Square Bar	18mm-47mm (11/16″ to 1-3/4″)
	Flat Steel	1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling



Chemical Composition

C

Al

Si

P

S

Ti

Cr

Mn

Fe

Ni

Cu

Nb

Mo

0.03 max

0.1 - 0.5

0.5 max

0.03 max

0.03 max

1.9 - 2.4

19.5 - 22.5

1.0 max

22.0 min

42.00-46.00

1.5 - 3.0

0.5 max

2.5 - 3.5



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
85	35	30



Physical Performance

	Units	Temperature in°C
Density	8.14 g/cm³	Room
Specific Heat	0.105 Kcal/kg.C	Room
Melting Range	1370-1400°C	-
Modulus of Elasticity	196 KN/mm²	20°
Electrical Resistivity	113 µΩ.cm	25°
Coefficient of Expansion	14.1 µm/m °C	25 - 100°
Thermal Conductivity	11.1 w/m-° K	25°



Scope of Application

This superalloy is used in a variety of industries, such as aerospace, chemical processing, marine engineering, pollution control equipment and nuclear reactors.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
