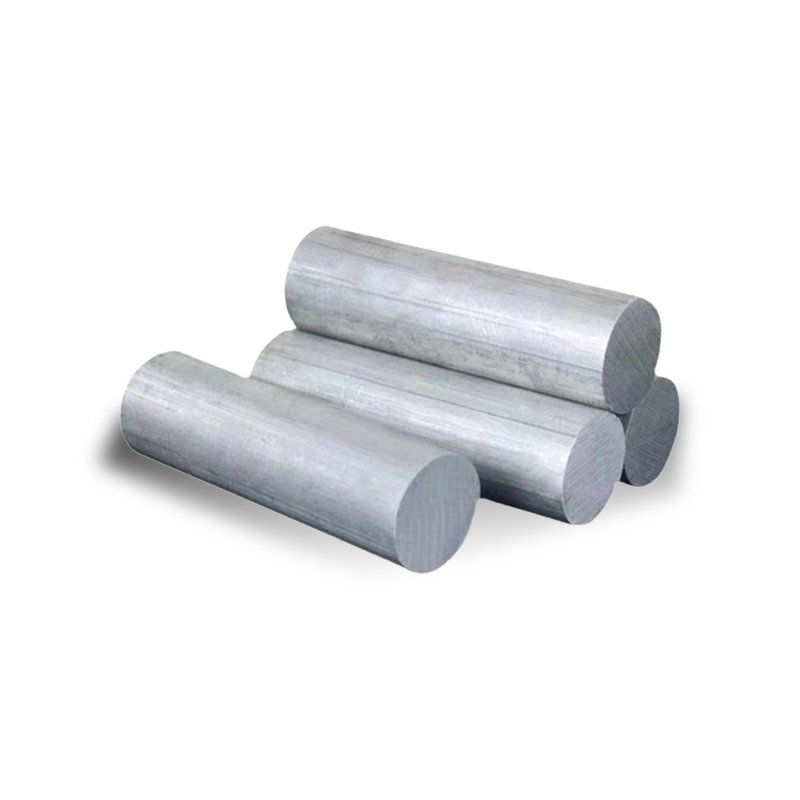

Monel R-405 Bar

Monel R405 is a chromium-cobalt based superalloy with high strength and good corrosion resistance. It consists of elements such as chromium, cobalt, tungsten and aluminum. In addition, it contains small amounts of elements such as carbon, niobium, iron, and copper. These elements make it have excellent corrosion resistance and high strength. Monel R405 bar shows good corrosion resistance in strong alkali and medium strength sulfuric acid, hydrochloric acid, nitric acid and other solutions. Moreover, it has excellent corrosion resistance in seawater and chloride environments. Therefore, Monel R405 bar is often used in offshore engineering, such as offshore oil drilling platforms, seawater desalination equipment and so on. Lastly, It is able to maintain high strength and good oxidation resistance at high temperatures.



Product Parameters

Product Name		Monel R-405 Bar
Outer Diameter	Round Bar	4mm-500mm
	Hexagon Bar	18mm-57mm (11/16″ to 2-3/4″)
	Square Bar	18mm-47mm (11/16″ to 1-3/4″)
	Flat Steel	1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling



Chemical Composition

C	Si	S	Mn	Fe	Ni	Cu
0.3 max	0.5 max	0.025 - 0.060	2.0 max	2.5 max	63.0 min	28.0 - 34.0



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
85	50	15



Physical Performance

	Units	Temperature in°C
Density	8.80 g/cm³	Room
Specific Heat	0.102 Kcal/kg.C	21°
Melting Range	1300-1350°C	-
Modulus of Elasticity	179 KN/mm²	Room
Electrical Resistivity	51.1 µΩ.cm	21°
Coefficient of Expansion	14.2 µm/m °C	21 - 100°
Thermal Conductivity	22.0 w/m-° K	21°



Scope of Application

Used in marine engineering, chemical and hydrocarbon processing equipment, gasoline tanks and fresh water tanks, crude oil distillers, degassing heaters, boiler feed water heaters and other heat exchangers, valves, pumps, shafts, accessories and fasteners, Industrial heat exchangers, chlorinated solvents, crude oil distillation columns, etc.
