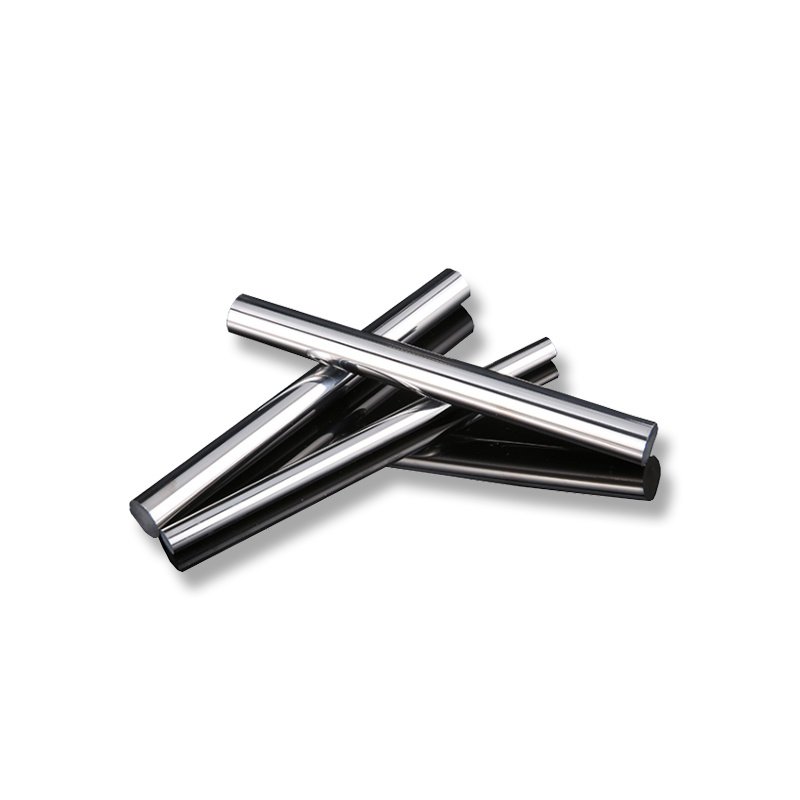

Titanium Grade 9 Bar

Grade 9 titanium bar can maintain stable performance under high temperature and high pressure conditions, having remarkable strength and toughness. It is suitable for aerospace and aerospace engines and other fields. Besides, Grade 9 titanium bars can resist the erosion of corrosive media such as sea water and salt water, so they are widely used in marine engineering and chemical equipment. For another, Grade 9 titanium alloy has good weldability and is suitable for conventional welding, arc welding, laser welding and other processes. Lastly, Grade 9 titanium has a lower density and is lighter than many other metals, giving it an advantage in parts requiring lightweight designs. Grade 9 titanium bar is widely used in aerospace, marine engineering, chemical equipment and other fields.



Product Parameters

Product Name		Titanium Grade 9 Bar
Outer Diameter	Round Bar	4mm-500mm
	Hexagon Bar	18mm-57mm (11/16″ to 2-3/4″)
	Square Bar	18mm-47mm (11/16″ to 1-3/4″)
	Flat Steel	1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling



Chemical Composition & Mechanical Properties

STM/ASME		GB	JIS	Element Content（wt%）						Mechanical Properties
				N,max	C,max	H,max	Fe,max	O,max	Others	Strength Of Extension	Ductility
										Mpa,min	%，min
Pure Titanium	Gr.1	TA1	Class1	0.03	0.08	0.015	0.2	0.18	-	240	24
	Gr.2	TA2	Class2	0.03	0.08	0.015	0.3	0.25		345	20
	Gr.3	TA3	Class3	0.05	0.08	0.015	0.3	0.35		450	18
	Gr.4	TA4	Class4	0.05	0.08	0.015	0.5	0.4		550	15
Titanium Alloy	Gr.5	TC4	Class60	0.05	0.08	0.015	0.4	0.2	AI:5.5-6.75	895	10
		Ti-6A1-4V							V:3.5-4.5
	Gr.7	TA9	Class12	0.03	0.08	0.015	0.3	0.25	Pd:0.12-0.25	345	20
	Gr.9	TC2	Class61	0.03	0.08	0.015	0.25	0.15	AI:2.5-3.5	620	15
									V:2.0-3.0
	Gr.11	TA9-1	Class11	0.03	0.08	0.015	0.2	0.18	Pd:0.12-0.25	240	24
	Gr.23	TC4 ELI	Class60E	0.03	0.08	0.0125	0.25	0.13	AI:5.5-6.5	828	10
									V:3.5-4.5



Scope of Application

Used in aircraft turbines, engine components, aircraft structural components, aerospace fasteners, high-performance automation parts, marine applications, sports equipment, etc.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
