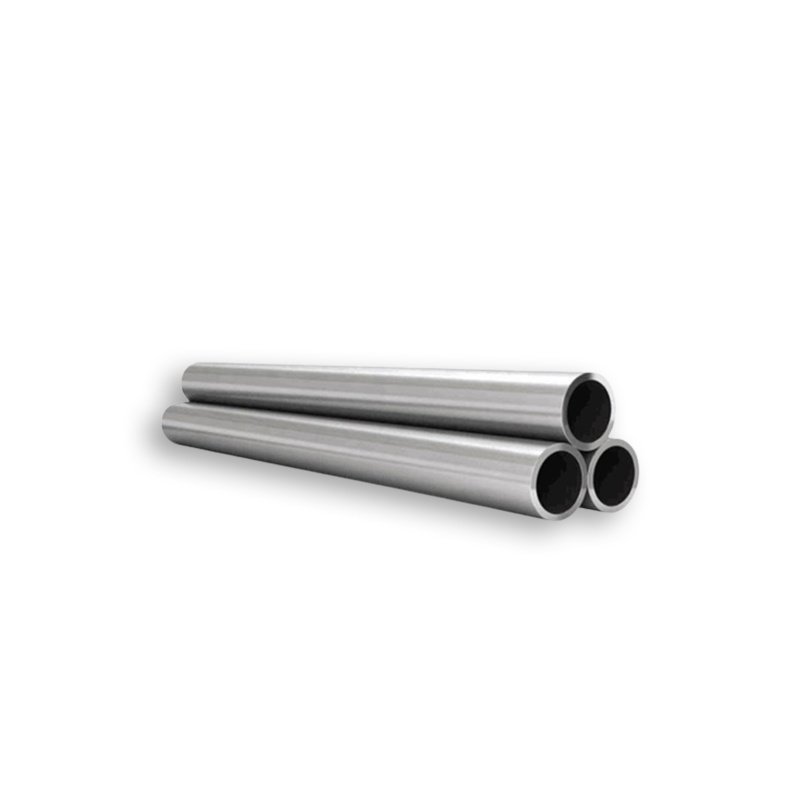

Hastelloy X Pipe

Hastelloy X pipes have excellent corrosion resistance and can be used for a long time in various corrosive environments. This is because a large number of alloying elements are added to the alloy, such as nickel, chromium, molybdenum, etc. These elements form a dense oxide film on the surface of the alloy, which can effectively resist the erosion of various chemical substances. Hastelloy X pipe has excellent high-temperature strength and can maintain high strength and hardness in high-temperature environments. This is because the alloying elements in the alloy can form strengthening molybdenum, which improves the tensile strength and yield strength of the alloy. Lastly, Hastelloy X has good processing properties and can be used for casting, forging, rolling and other processing processes. During the processing process, the fluidity and plasticity of the alloy are relatively good.



Product Parameters

Product Name		Hastelloy X Pipe
Outer Diameter	Round Pipe	4mm-200mm
	Square Pipe	10*10mm-100*100mm
	Rectangular Pipe	10*20mm-50*100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling



Chemical Composition

C	Si	P	S	Cr	Mn	Fe	Co	Ni	Mo	W
0.05 - 0.15	1.0 max	0.04	0.03	20.5 - 23.0	1.0 max	17.0 - 20.0	0.5 - 2.5	Remainder	8.0 - 10.0	0.2 - 1.0



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
95	35	35



Physical Performance

	Units	Temperature in°C
Density	8.22 g/cm³	22°C
Specific Heat	0.116 Kcal/kg.	Room
Melting Range	1260-1355°C	-
Modulus of Elasticity	205 KN/mm²	Room
Electrical Resistivity	118.3 µΩ.cm	22°
Coefficient of Expansion	13.9 µm/m °C	26 - 93°
Thermal Conductivity	9.1 w/m-° K	21°



Scope of Application

Hastelloy X is used in gas turbines, petrochemicals, industrial furnaces, heat treatment equipment, nuclear engineering, jet engine combustion chambers, cabin heaters, turbine exhaust components, etc.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
