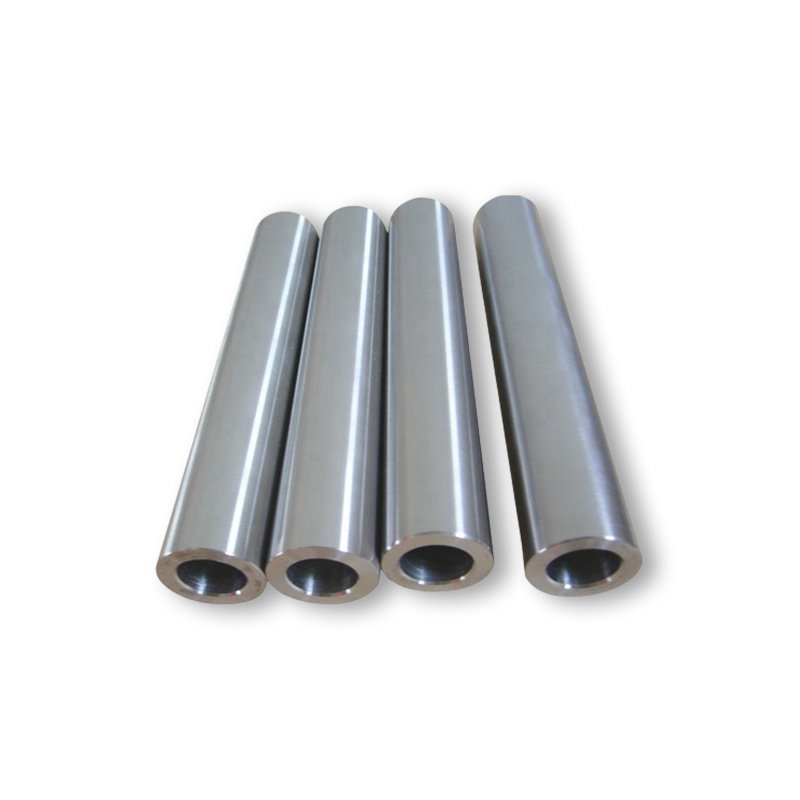

Incoloy 825 Pipe

Incoloy 825 pipe is made of a nickel-based alloy that exhibits good corrosion resistance in a variety of environments. The alloy contains 40% nickel, 22% chromium, 2.9% molybdenum and 28% iron, with small amounts of copper and titanium. The combination of these elements gives Incoloy 825 pipe excellent resistance to oxidation, acid, alkali and high temperatures. And, Incoloy 825 alloy also has good welding and processing properties. It can be connected through various welding processes without leaving obvious deformation or intergranular corrosion problems during the welding process. Incoloy 825 pipes have a high melting point and can maintain excellent mechanical properties and oxidation resistance at high temperatures. Lastly, Incoloy 825 pipe is easy to perform hot and cold processing, and can be processed into parts of various shapes.



Product Parameters

Product Name		Incoloy 825 Pipe
Outer Diameter	Round Pipe	4mm-200mm
	Square Pipe	10*10mm-100*100mm
	Rectangular Pipe	10*20mm-50*100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling



Chemical Composition

C	Al	Si	S	Ti	Cr	Mn	Fe	Ni	Cu	Mo
0.05 max	0.2 max	0.5 max	0.03 max	0.6 - 1.2	19.5 - 23.5	1.0 max	22.0 min	38.0 - 46.0	1.5 - 3.0	2.5 - 3.5



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
85	35	30



Physical Performance

	Units	Temperature in°C
Density	8.14 g/cm³	Room
Specific Heat	0.105 Kcal/kg.C	Room
Melting Range	1370-1400°C	-
Modulus of Elasticity	196 KN/mm²	20°
Electrical Resistivity	113 µΩ.cm	25°
Coefficient of Expansion	14.1 µm/m °C	25 - 100°
Thermal Conductivity	11.1 w/m-° K	25°



Scope of Application

Nickel steel alloys are used in acid making, chemical processing, oil and gas well pipelines, pollution control equipment, nuclear fuel reprocessing and pickling equipment.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
