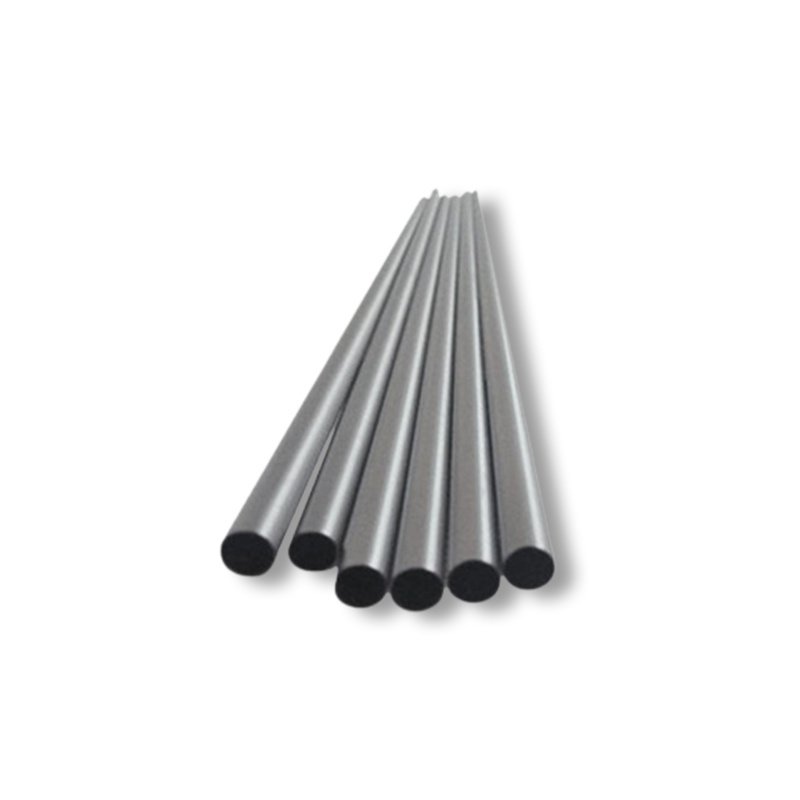

Monel K-500 Pipe

Monel K-500 alloy is primarily composed of nickel, copper, iron and a small amount of carbon. The nickel content constitutes a large part of the total mass of the alloy, which makes Monel K-500 pipe have good corrosion resistance. In addition, the addition of copper and iron further improves the strength and hardness of Monel K-500 pipes. The chemical composition of Monel K-500 contains relatively low carbon content, which gives the alloy good welding and processing properties. Monel K-500 pipes have excellent physical and mechanical properties. At normal temperature, the alloy has high strength and hardness, as well as good plasticity and toughness. In high-temperature environments, Monel K-500 pipes have good oxidation resistance and creep resistance, which enables the alloy to maintain stable performance in high-temperature and high-pressure environments. In addition, Monel K-500 pipe also has good corrosion resistance and can resist the erosion of a variety of chemical substances.



Product Parameters

Product Name		Monel K-500 Pipe
Outer Diameter	Round Pipe	4mm-200mm
	Square Pipe	10*10mm-100*100mm
	Rectangular Pipe	10*20mm-50*100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling



Chemical Composition

C	Al	Si	S	Ti	Mn	Fe	Ni	Cu
0.18 max	2.30 - 3.15	0.5 max	0.01 max	0.35 - 0.85	1.5 max	2.0 max	63.0 min	27.0 - 33.0



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
140	100	17



Physical Performance

	Units	Temperature in°C
Density	8.44 g/cm³	Room
Specific Heat	0.1 Kcal/kg.C	21°
Melting Range	1315-1350°C	-
Modulus of Elasticity	179 KN/mm²	Room
Electrical Resistivity	61.5 µΩ.cm	21°
Coefficient of Expansion	13.7 µm/m °C	20 - 100°
Thermal Conductivity	17.2 w/m-° K	21°



Scope of Application

Used in sour gas applications, oil and gas production safety elevators and valves, drill collars and other oil well tools and instruments, oil well industry, scrapers and scrapers, marine chains, cables, springs, valve trim, fasteners, marine pump shafts and Impellers, etc.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
