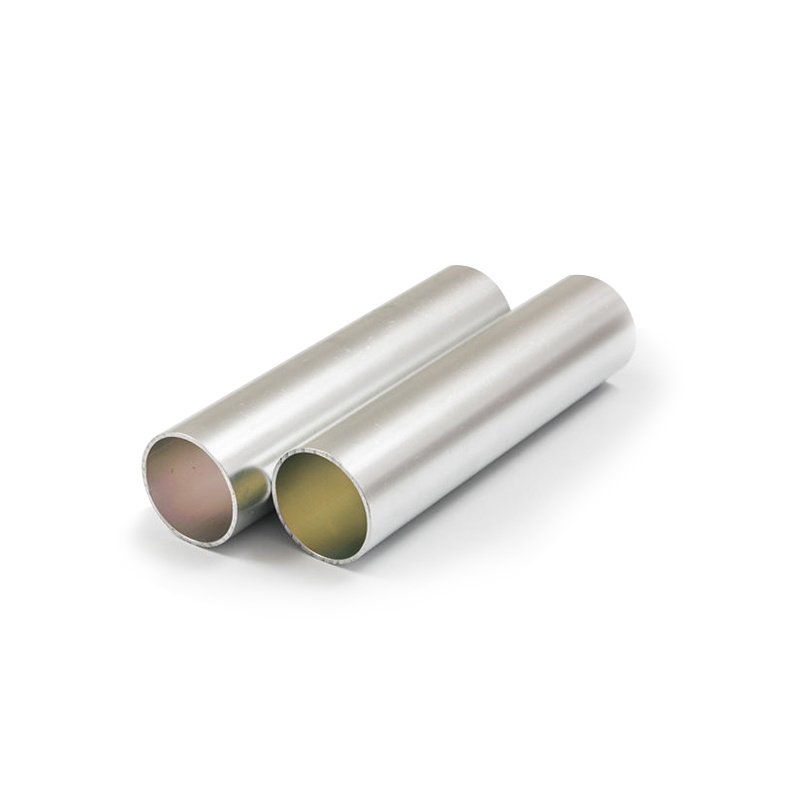

Nickel Alloy 201 Pipe

Nickel alloy 201 pipe has high strength and plasticity, and has been used in high temperature environments up to 1230°C. Especially at high temperatures above 800°C, it can still maintain excellent thermal stability and thermal strength, both in cold and hot conditions. It has excellent processing performance and is a metal material used in various harsh corrosive environments. Nickel alloy 201 has high resistivity and low thermal conductivity. It is easy to overheat during the welding process, causing the weld grains to grow rapidly. Once the grains of Nickel alloy 201 material are coarsened, it is difficult to improve them by heat treatment, which will seriously affect mechanical properties and corrosion resistance of welded joints. Nickel alloy 201 pipe has high thermal conductivity, electrical conductivity and high ductility mechanical properties over a wide temperature range.



Product Parameters

Product Name		Nickel Alloy 201 Pipe
Outer Diameter	Round Pipe	4mm-200mm
	Square Pipe	10*10mm-100*100mm
	Rectangular Pipe	10*20mm-50*100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling



Chemical Composition

C	Si	S	Mn	Fe	Ni	Cu
0.02 max	0.35 max	0.01 max	0.35 max	0.4 max	99.0 min	0.25 max



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
50	12	35



Physical Performance

	Units	Temperature in°C
Density	8.9 g/cm³	Room
Specific Heat	0.105 Kcal/kg.C	Room
Melting Range	1435-1445°C	-
Modulus of Elasticity	207 KN/mm²	Room
Electrical Resistivity	8.5 µΩ.cm	20°
Coefficient of Expansion	13.3 µm/m °C	20 - 100°
Thermal Conductivity	67.1 w/m-° K	20°



Scope of Application

Used in electrical industry, chemical industry, heat exchanger, synthetic fiber processing, food processing, etc.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
