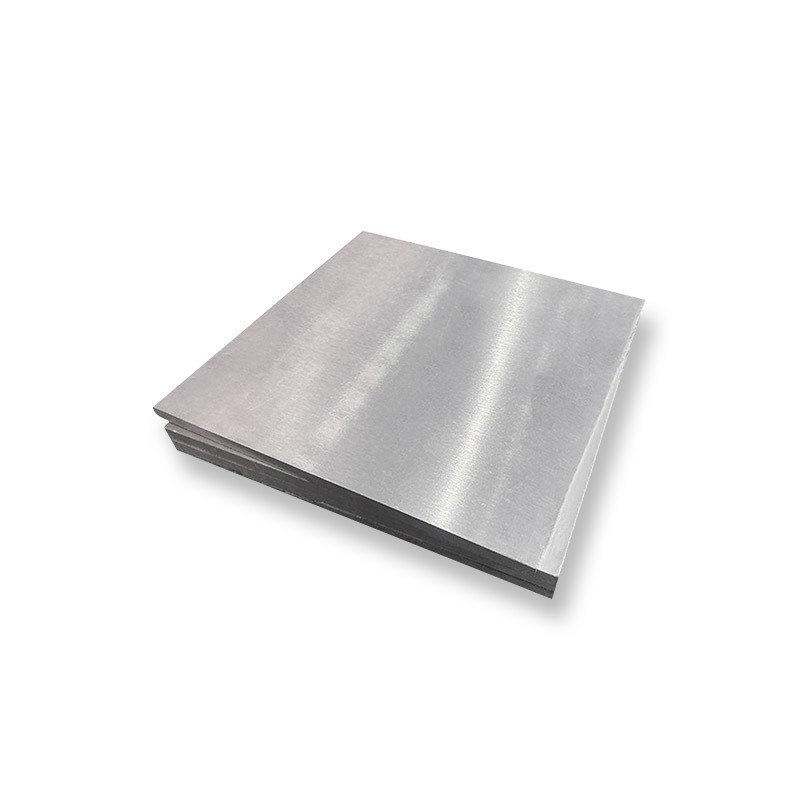

Incoloy 800H / 800HT Plate

Incoloy 800H is a nickel-based alloy containing approximately 22% chromium, 39% iron, and 33% nickel, with the balance being carbon, silicon, manganese and other elements. This alloy has excellent high temperature resistance, its maximum operating temperature can reach 1100°C, and it also has good toughness and ductility at room temperature. In addition, Incoloy 800H also has excellent oxidation resistance and corrosion resistance, and can maintain a long service life in high temperature environments. Incoloy 800H plate has good processing properties and can be used for hot and cold processing. During thermal processing, the heating temperature and cooling rate should be controlled to avoid cracks and deformation. During cold working, cutting, drilling, turning, etc. can be used.



Product Parameters

Product Name	Incoloy 800H / 800HT Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Certificate	ISO, SGS, BV
Production Technology	Hot Rolling, Cold Rolling



Chemical Composition

C	Al	Si	S	Ti	Cr	Mn	Fe	Ni	Cu
0.1 max	0.15 - 0.60	1.0 max	0.015 max	0.15 - 0.60	19.0 - 23.0	1.5 max	39.5 min	30.0 - 35.0	0.75 max



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
75	30	30



Physical Performance

	Units	Temperature in°C
Density	7.94 g/cm³	Room
Specific Heat	0.11 Kcal/kg.C	21°
Melting Range	1357-1385°C	-
Modulus of Elasticity	196.5 KN/mm²	20°
Electrical Resistivity	98.9 µΩ.cm	20°
Coefficient of Expansion	14.4 µm/m °C	20 - 100°
Thermal Conductivity	11.5 w/m-° K	20°



Scope of Application

Used in industrial furnaces, heat treatment equipment, chemical and petrochemical processing, superheaters and reheaters in power plants, pressure vessels, heat exchangers, etc.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
