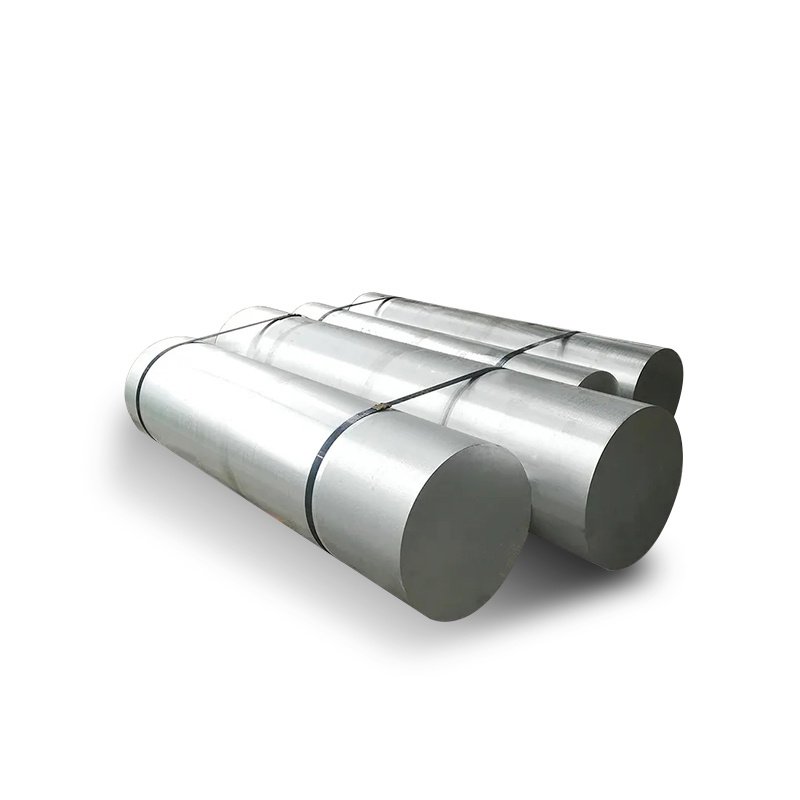

Having extremely high strength and tensile strength, 7075 aluminum bar can withstand large loads and stresses in many applications. Despite having higher strength, it is still less dense and relatively light. This makes 7075 aluminum bar an ideal option to ｒｅｐｌａｃｅ steel in many applications, thus reducing overall weight while maintaining strength. Besides, 7075 aluminum alloy is highly resistant to some common corrosive media, such as seawater and most chemical solutions. This gives 7075 aluminum bars advantages in applications used in marine environments and other harsh environments. Lastly, having good processability, wear resistance and heat resistance, 7075 aluminum bar is ideal for many industrial applications such as aerospace, mold processing, mechanical equipment, tooling and fixtures.
Product Parameters
Diameter | 5-650mm or customized | Length | 100-2000mm or customized |
Certificate | ISO, SGS, BV | ||
Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. | ||
Brand | 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075, etc. 8000 Series: 8A06, 8011, 8090, etc. | ||
Surface | Coating, Embossing, Drawing, Polishing, Anodizing, etc. | ||
OEM Service | Punching, Cutting special size, Making flat surface, Surface treatment, etc. | ||
Delivery Time | Received 30% after deposit 7-15 working days | ||
Application | Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields | ||
Sample | Free Offers Sample | ||
Packaging | Strapping, Plastic bag, Film, Wooden pallet Standard seaworthy export packing or according to customer requirement | ||
Chemical Composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | - | 0.04 | 0.03 | 0.05 | - | 99.70 |
1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 - 95.5 |
2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | Allowance |
3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | - | 0.15 | 0.1-0.2 | - | - | Allowance |
3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | Allowance |
3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Allowance |
3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Allowance |
5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | Allowance |
5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | Allowance |
5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Allowance |
5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | - | 0.20 | - | 0.05 | 0.05 | Allowance |
5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Allowance |
7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Allowance |
Mechanical Properties
Tensile Strength (MPa) | Yield Strength (MPa) | Elongation Rate (%) | Hardness (HV) |
572 | 503 | 11 | 175 |
Physical Performance
Density | Melting Point | Modulus of Elasticity | Thermal Conductivity |
2.81 Kg/m³ | 477-635 °C | 71.7 GPa | 130 W/m.K |
Annealing State
Brand | Annealing State |
1xxx: 1050, 1050A, 1060, 1100 | O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
3xxx: 3003, 3004, 3005, 3105 | |
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 | O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
6xxx: 6061, 6082 | T4, T6, T451, T651 |
2xxx: 2024 | T3, T351, T4 |
7xxx: 7075 | T6, T651 |
Scope of Application
Aluminum Uses And Application Area | |
Food Packaging | Beverage can ends, cans, bottle caps, etc. |
Building | Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
Transportation | Auto parts, passenger car bodies, aviation ships and air cargo containers. |
Electronic Equipment | Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
Consumer Goods | Umbrellas, cooking utensils, sports equipment, etc |
Other | Military, color coated aluminum plate |
