E-mail : PRODUCTS DESCRIPTION

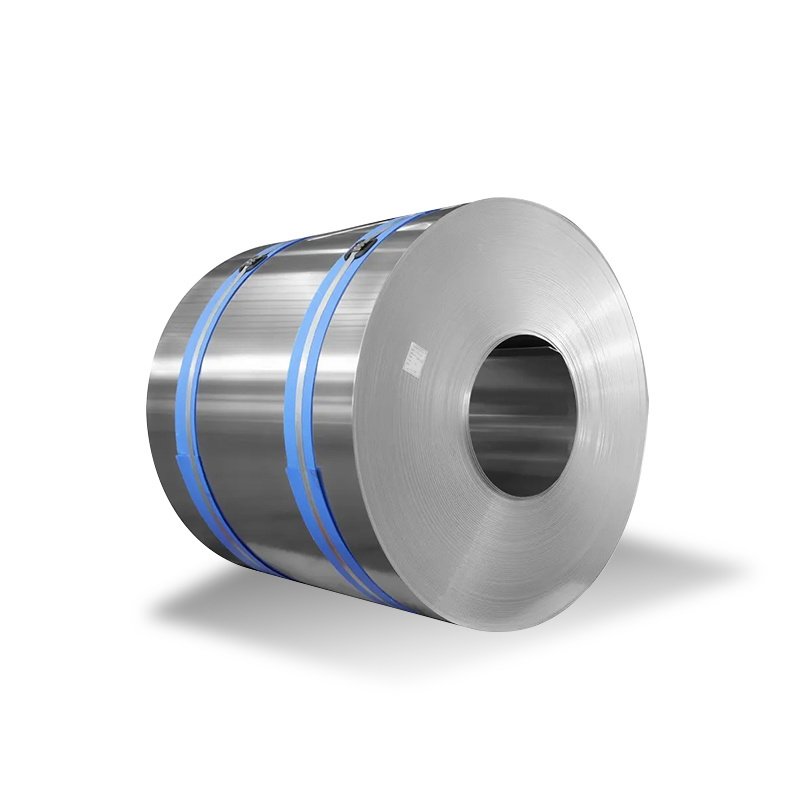

1100 aluminum coil has strong corrosion resistance and good plasticity. There are cold-rolled coil, hot-rolled coil, stretched coil and so on according to the different production process. Compared with 1060 aluminum coil, the strength of 1100 is slightly higher than that of 1060, so it is suitable for products with high strength requirements. However, since the aluminum content is not as high as that of 1060 aluminum coil, it is not recommended to use 1100 aluminum coil products in the heat dissipation and electrical conductivity industries. 1100 aluminum coil has good machining performance but lower cost. Therefore, 1100 aluminum coil has seen a gradual increase in usage in recent years, and it has become one of the most commonly used materials in the aluminum coil industry.
Product Parameters
Width | 20-3000mm or customized | Thickness | 0.1-120mm or customized |
Length | 100-12000mm or customized | Certificate | ISO, SGS, BV |
Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. | ||
Brand | 1000 Series: 1050 1060 1070 1100 1200 1235 etc. 3000 Series: 3003 3004 3005 3104 3105 3A21 etc. 5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 5A05 etc. 6000 Series: 6061 6063 6082 6A02 etc. 7000 Series: 7050 7475 7075 etc. 8000 Series: 8A06 8011 8090 etc. | ||
Surface | Coating, Embossing, Drawing, Polishing, Anodizing, etc. | ||
OEM Service | Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc. | ||
Delivery Time | Received 30% after deposit 7-15 working days | ||
Application | Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields | ||
Sample | Free Offers Sample | ||
Packaging | Strapping, Plastic bag, Film, Wooden pallet standard seaworthy export packing or according to customer requirement | ||
Chemical Composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | - | 0.04 | 0.03 | 0.05 | - | 99.70 |
1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 - 95.5 |
2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | Allowance |
3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | - | 0.15 | 0.1-0.2 | - | - | Allowance |
3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | Allowance |
3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Allowance |
3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Allowance |
5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | Allowance |
5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | Allowance |
5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Allowance |
5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | - | 0.20 | - | 0.05 | 0.05 | Allowance |
5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Allowance |
7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Allowance |
Mechanical properties
Tensile Strength (MPa) | Yield strength (MPa) | Hardness HB | Elongation Rate (%) |
89.6 | 34 | 23 | 15-28 |
Physical Performance
Density | Melting Point | Modulus of Elasticity | Thermal Conductivity |
2.71 Kg/m³ | 643-675.2 °C | 68.9 GPa | 222W/m.K |
Annealing State
Brand | Annealing State |
1xxx: 1050, 1050A, 1060, 1100 | O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
3xxx: 3003, 3004, 3005, 3105 | |
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 | O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
6xxx: 6061, 6082 | T4, T6, T451, T651 |
2xxx: 2024 | T3, T351, T4 |
7xxx: 7075 | T6, T651 |
Scope of Application
Aluminum Uses And Application Area | |
Food Packaging | Beverage can ends, cans, bottle caps, etc. |
Building | Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
Transportation | Auto parts, passenger car bodies, aviation ships and air cargo containers. |
Electronic Equipment | Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
Consumer Goods | Umbrellas, cooking utensils, sports equipment, etc |
Other | Military, color coated aluminum plate |
FAQ
Q:What about your price?
A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.
Q:What certifications do your products have?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:What kind of payment terms would you accept?
A:We always do T/T.30% T/T as deposit,70% T/T as balance.
Q:What is your MOQ?
A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
Q:What is the delivery time?
A:10-15 days
PACKING AND DELIVERY
PRODUCT TESTING
CLIENT FEEDBACK
Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
