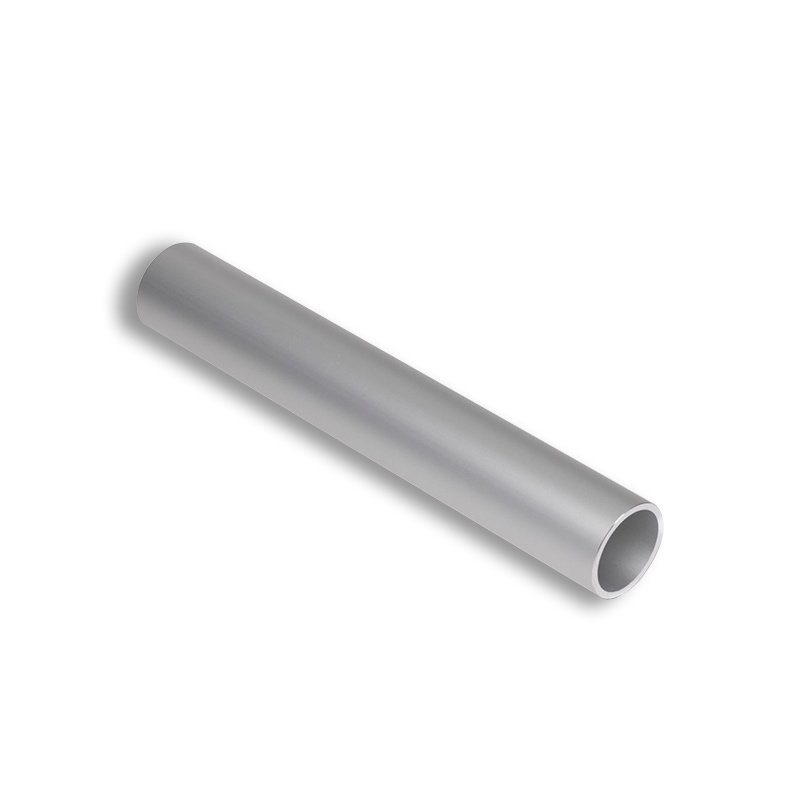

1070 aluminum pipe is made of a pure aluminium alloy as a wrought alloy that has high corrosion resistance and an excellent brazing ability. Its complementary elements include aluminium, iron, silicon, zinc, vanadium, copper, titanium, magnesium, and manganese. The high purity of 1070 aluminum alloy accounts for its plasticity and ductility, and products can be made through deep drawing, drawing and other forming processes. 1070 aluminum pipe has good corrosion resistance and is especially suitable for components, devices and structures working in hot and humid environments, such as chemical equipment, marine equipment, etc.
Product Parameters
Wall Thickness | 0.4-20mm or customized | Length | 5-2000mm or customized |
Outer Diameter | 10-2500mm or customized | Certificate | ISO, SGS, BV |
Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. | ||
Brand | 1000 Series: 1050 1060 1070 1100 1200 1235 etc. 3000 Series: 3003 3004 3005 3104 3105 3A21 etc. 5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 5A05 etc. 6000 Series: 6061 6063 6082 6A02 etc. 7000 Series: 7050 7475 7075 etc. 8000 Series: 8A06 8011 8090 etc. | ||
Surface | Coating, Embossing, Drawing, Polishing, Anodizing, etc. | ||
OEM Service | Punching, Cutting special size, Making flat surface, Surface treatment, etc. | ||
Delivery Time | Received 30% after deposit 7-15 working days | ||
Application | Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields | ||
Sample | Free Offers Sample | ||
Packaging | Strapping, Plastic bag, Film, Wooden pallet Standard seaworthy export packing or according to customer requirement | ||
Chemical Composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | - | 0.04 | 0.03 | 0.05 | - | 99.70 |
1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 - 95.5 |
2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | Allowance |
3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | - | 0.15 | 0.1-0.2 | - | - | Allowance |
3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | Allowance |
3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Allowance |
3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Allowance |
5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | Allowance |
5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | Allowance |
5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Allowance |
5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | - | 0.20 | - | 0.05 | 0.05 | Allowance |
5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Allowance |
6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Allowance |
7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Allowance |
Mechanical Properties
Tensile Strength (MPa) | Elongation Rate (%) | Yield Strength (MPa) |
≥75 | ≥ 4.5 | ≥35 |
Physical Performance
Density | Melting Point | Modulus of Elasticity | Thermal Conductivity | Thermal Expansion |
2.7 Kg/m³ | 640 °C | 68 GPa | 230 w/m K | 23×10-6/K |
Annealing State
Brand | Annealing State |
1xxx: 1050, 1050A, 1060, 1100 | O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
3xxx: 3003, 3004, 3005, 3105 | |
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 | O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
6xxx: 6061, 6082 | T4, T6, T451, T651 |
2xxx: 2024 | T3, T351, T4 |
7xxx: 7075 | T6, T651 |
Scope of Application
Aluminum Uses And Application Area | |
Food Packaging | Beverage can ends, cans, bottle caps, etc. |
Building | Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
Transportation | Auto parts, passenger car bodies, aviation ships and air cargo containers. |
Electronic Equipment | Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
Consumer Goods | Umbrellas, cooking utensils, sports equipment, etc |
Other | Military, color coated aluminum plate |
