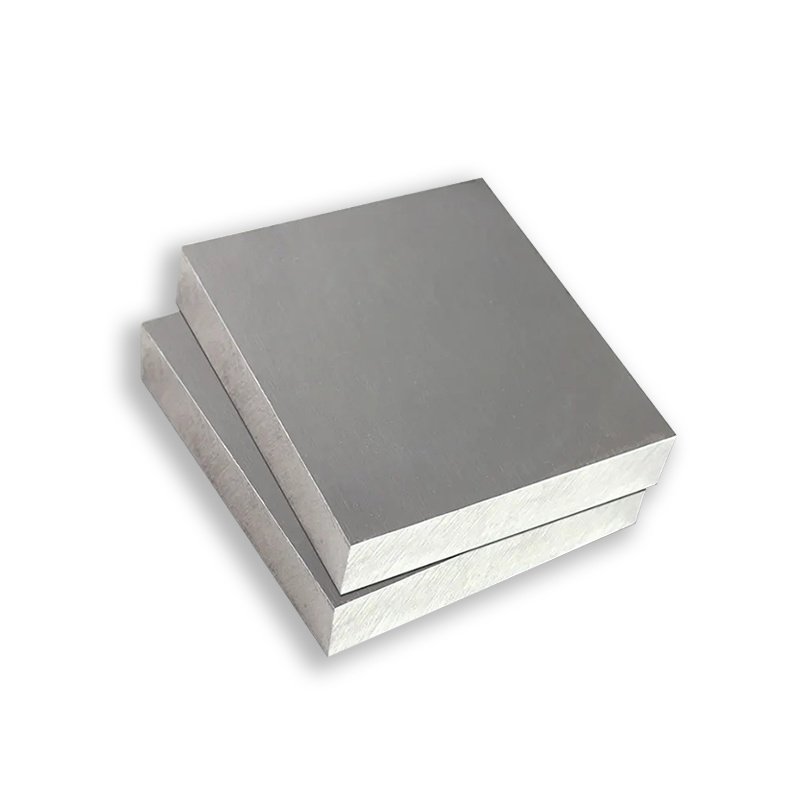

5083 aluminum is the most widely used anti-rust aluminum. This alloy has high strength, especially fatigue resistance: high plasticity and corrosion resistance. It cannot be strengthened by heat treatment. It has good plasticity during semi-cold work hardening and cold work. Because the material is a high-magnesium alloy, it has good strength, corrosion resistance, and machinability among non-heat-treatable alloys. The surface is beautiful after anodizing. Arc welding performance is good. The main alloying element in 5083 alloy is magnesium, which has good corrosion resistance and weldability, as well as medium strength. Excellent corrosion resistance makes 5083 alloy widely used in maritime applications such as ships, as well as automobiles, aircraft welding parts, subways and light rails, and pressure vessels that require strict fire protection.
Product Parameters
Width | 20-3000mm or Customized | Thickness | 0.1-120mm or Customized |
Length | 100-12000mm or Customized | Certificate | ISO, SGS, BV |
Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. | ||
Brand | 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075, etc. 8000 Series: 8A06, 8011, 8090, etc. | ||
Surface | Coating, Embossing, Drawing, Polishing, Anodizing, etc. | ||
OEM Service | Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc. | ||
Delivery Time | Received 30%, After deposit 7-15 working day | ||
Application | Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware And Other Fields, etc. | ||
Sample | Free Offers Sample | ||
Packaging | Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement | ||
Chemical Composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | - | 0.04 | 0.03 | 0.05 | - | 99.70 |
1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 - 95.5 |
2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | Margin |
3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | - | 0.15 | 0.1-0.2 | - | - | Margin |
3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | Margin |
3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Margin |
3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Margin |
5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | Margin |
5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | Margin |
5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Margin |
5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | - | 0.20 | - | 0.05 | 0.05 | Margin |
5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Margin |
7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Margin |
Mechanical Properties
Tensile Strength (MPa) | Yield Strength (MPa) | Elongation Rate (%) | Hardness (HV) |
290 | 145 | 22 | 87 |
Physical Performance
Density | Melting Point | Modulus of Elasticity | Thermal Conductivity |
2.65 Kg/m³ | 591-638 °C | 70.3GPa | 117W/m.K |
Annealing State
Brand | Annealing State |
1xxx: 1050, 1050A, 1060, 1100 | O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
3xxx: 3003, 3004, 3005, 3105 | |
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 | O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
6xxx: 6061, 6082 | T4, T6, T451, T651 |
2xxx: 2024 | T3, T351, T4 |
7xxx: 7075 | T6, T651 |
Scope of Application
Aluminum Uses And Application Area | |
Food Packaging | Beverage can ends, cans, bottle caps, etc. |
Building | Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
Transportation | Auto parts, passenger car bodies, aviation ships and air cargo containers. |
Electronic Equipment | Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
Consumer Goods | Umbrellas, cooking utensils, sports equipment, etc |
Other | Military, color coated aluminum plate |
FAQ
Q:What about your price?
A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.
Q:What certifications do your products have?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:What kind of payment terms would you accept?
A:We always do T/T.30% T/T as deposit,70% T/T as balance.
Q:What is your MOQ?
A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
Q:What is the delivery time?
A:10-15 days
PACKING AND DELIVERY
PRODUCT TESTING
CLIENT FEEDBACK
Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
