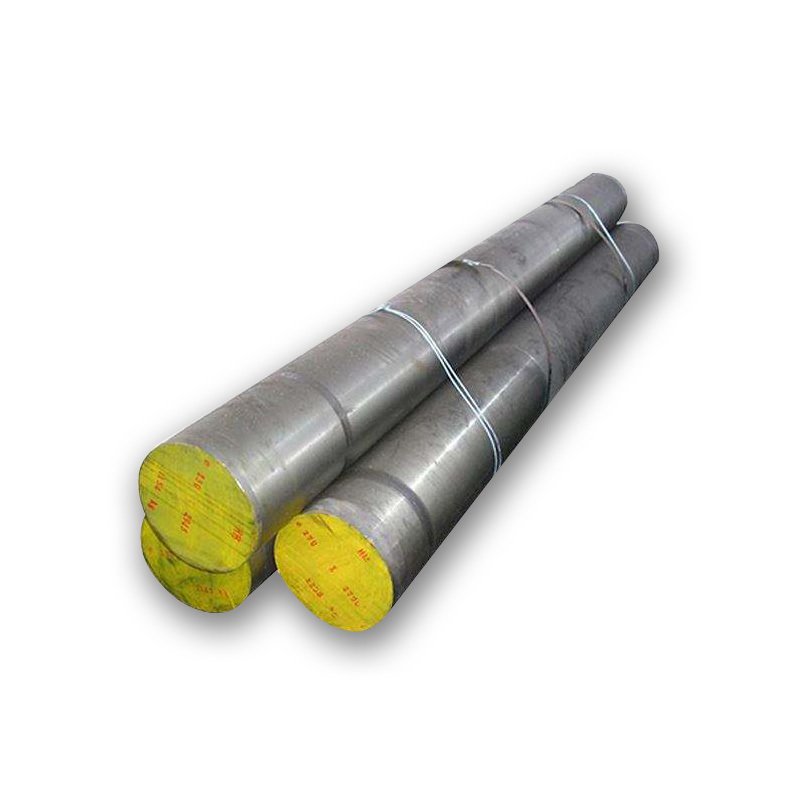

AISI/SAE 4130 Alloy Steel Bar

AISI 4130 steel bar is made of high-strength, low-alloy steel that is mainly used in high-temperature, high-pressure, and high-strength industrial fields. 4130 steel is a chromium-molybdenum low-alloy steel that has much higher strength and toughness than typical steel grades. Additionally, the reduced carbon content of this alloy, while limiting strength through thickness, provides better weldability than its 4140 steel counterpart. These properties make AISI 4130 steel bar a popular choice in the aerospace industry for manufacturing commercial and military aircraft components that require high strength and low weight.

Product Parameters

Product Name	AISI/SAE 4130 Alloy Steel Bar
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
Common Round Bar Specifications	3.0-50.8 mm, Over 50.8-300mm
Flat Steel Common Specifications	6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
Hexagon Bar Common Specifications	AF5.8mm-17mm
Square Bar Common Specifications	AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm
Length	1-6meters, Size Accept Custom
Diameter(mm)	Hot Rolling Round Bar	25-600	Cold Rolling Square Bar	6-50.8
	Hot Rolling Square Bar	21-54	Cold Rolling Hexagon Bar	9.5-65
	Cold Rolling Round bar	6-101.6	Forged Rebar	200-1000
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.



Chemical Composition

Grade	Mn	S	C	P	Si	Cr	Mo
AISI 4130	0.4-0.8	0.04	0.28-0.33	0.035	0.15-0.35	0.8-1.1	0.15-0.25



Mechanical Properties

Grade	Tensile Strength N/mm2 Min	Yield Strength N/mm2 Min	A, % Min	Z, % Min
AISI 4130	930	735	12	50



Scope of Application

SAE 4130 round bars are commonly used in structural applications, including brackets, gears, and some aircraft exteriors.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
