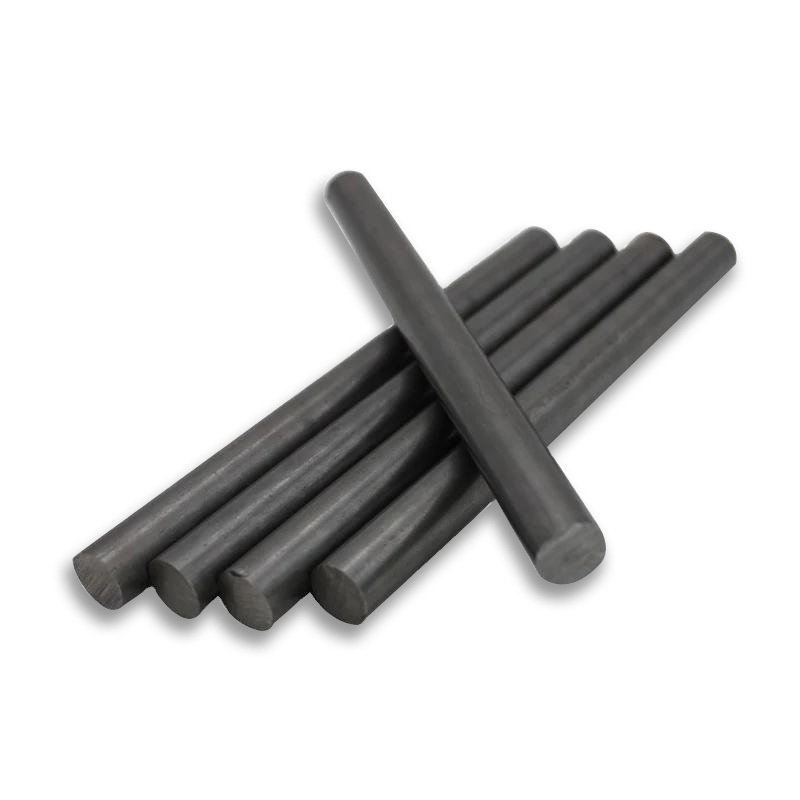

AISI/SAE 4340 Alloy Steel Bar

AISI 4340 is a commonly used alloy steel with high strength, high toughness, good wear resistance and corrosion resistance. Its moderate carbon content gives it good machinability and weldability. In addition, it also contains appropriate amounts of chromium, nickel and other elements, which further improves its performance. At the same time, its toughness and ductility are also quite good, and it can maintain good performance even in both high or low temperature environments. Due to the excellent physical and mechanical properties of 4340 steel, 4340 steel bars are also widely used in equipment manufacturing in corrosive environments such as petroleum, chemical industry, and ships.

Product Parameters

Product Name	AISI/SAE 4340 Alloy Steel Bar
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
Common Round Bar Specifications	3.0-50.8 mm, Over 50.8-300mm
Flat Steel Common Specifications	6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
Hexagon Bar Common Specifications	AF5.8mm-17mm
Square Bar Common Specifications	AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm
Length	1-6meters, Size Accept Custom
Diameter(mm)	Hot Rolling Round Bar	25-600	Cold Rolling Square Bar	6-50.8
	Hot Rolling Square Bar	21-54	Cold Rolling Hexagon Bar	9.5-65
	Cold Rolling Round bar	6-101.6	Forged Rebar	200-1000
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.



Chemical Composition

Grade	Mn	S	C	P	Si	Cr	Ni
AISI 4340	0.60-0.80	0.035	0.38-0.43	0.04	0.15-0.35	0.70-0.90	1.65-2.00



Mechanical Properties

Grade	Tensile Strength kg f/mm2	Yield Strength kg f/mm2	Elongation %	Hardness HB
AISI 4340	≥ 100	≥ 90	≥ 16	293-352



Scope of Application

AISI 4340 alloy steel is mainly used for power transmission gears and shafts, aircraft landing gear and other structural parts.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
