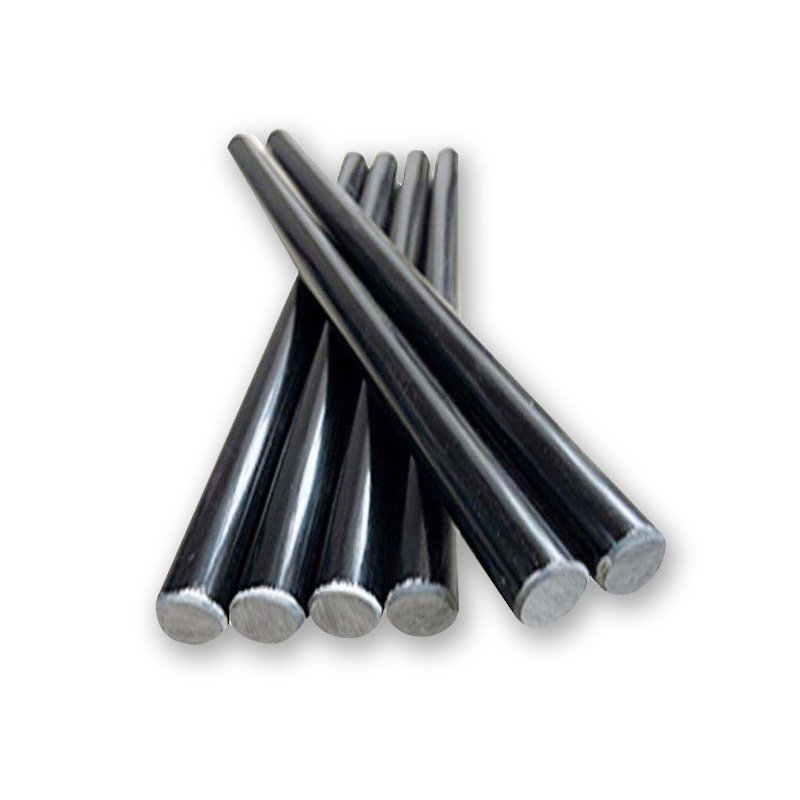

AISI/SAE 8620 Carbon Steel Bar

8620 alloy steel is a medium-carbon low-alloy steel with high hardness and dimensional stability, as well as high strength and plasticity. In addition, 8620 alloy steel also has good weldability, forgeability and processability, and is widely used in industrial fields such as manufacturing shaft parts, gears, carburized parts, crankshafts and machine tools. 8620 alloy steel is widely used in aviation, automobiles, machinery and other fields, especially in manufacturing high-load, high-strength and fatigue-resistant parts.

Product Parameters

Product Name	AISI/SAE 8620 Carbon Steel Bar
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
Common Round Bar Specifications	3.0-50.8 mm, Over 50.8-300mm
Flat Steel Common Specifications	6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
Hexagon Bar Common Specifications	AF5.8mm-17mm
Square Bar Common Specifications	AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm
Length	1-6meters, Size Accept Custom
Diameter(mm)	Hot Rolling Round Bar	25-600	Cold Rolling Square Bar	6-50.8
	Hot Rolling Square Bar	21-54	Cold Rolling Hexagon Bar	9.5-65
	Cold Rolling Round bar	6-101.6	Forged Rebar	200-1000
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.



Chemical Composition

C	Mn	Si	Mo	Cr	Ni	S	P
0.18-0.23	0.70-0.90	0.15-0.35	0.15-0.25	0.40-0.60	0.40-0.70	0.035	0.040



Mechanical Properties

Grade	Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation in 100-150 mm (%)	Reduction in Area	Hardness
SAE 8620	≥ 380	≥ 210	≥ 25	≥ 50	≤ 111HB



Scope of Application

AISI 8620 can be used in a variety of medium strength applications, such as camshafts, fasteners, gears and chains/chain pins.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
