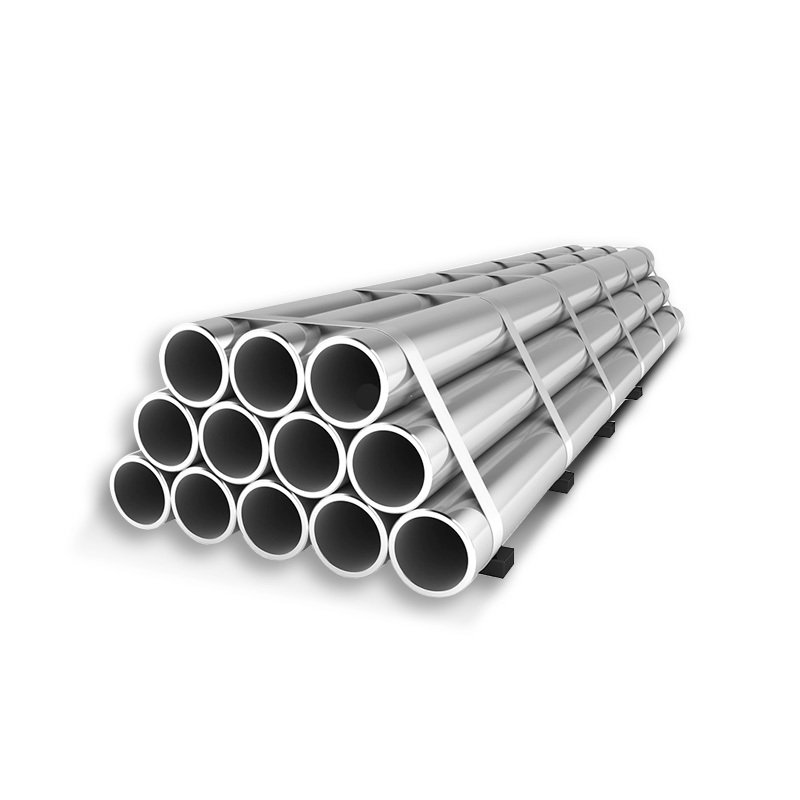

A53 Seamless & Welded Carbon Steel Pipe

ASTM A53 seamless steel pipe has high strength, good toughness, good processing performance and welding performance. A53 American standard seamless steel pipes are available in a wide range of specifications, with a wide range of outer diameters and wall thicknesses. Because ASTM A53 seamless carbon steel pipe has excellent material properties and good processing performance, it is widely used in petroleum, chemical industry, electric power, machinery manufacturing and other fields. For example, in the petrochemical industry, ASTM A53 steel pipes can be used to transport high-temperature and high-pressure oil, natural gas and other media.

Product Parameters

Product Name	A53 Seamless & Welded Carbon Steel Pipe
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	Seamless: 1/4"-36"	Welding: 21.3mm-3620mm
	Round Tube: 1/2"-10"	Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall Thickness	Seamless: 1.25mm-50mm	Welding: 1.65mm-65mm
Length	3-12 meters, Support customization
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.



Chemical Composition

A53	Grade	C	Mn	P	S	Cu	Ni	Cr	Mo	V
Type S (Seamless)	A	0.25	0.95	0.05	0.05	0.4	0.4	0.4	0.15	0.08
	B	0.3	1.2	0.05	0.05	0.4	0.4	0.4	0.15	0.08
Type E (Resistance Welding)	A	0.25	0.95	0.05	0.05	0.4	0.4	0.4	0.15	0.08
	B	0.3	1.2	0.05	0.05	0.4	0.4	0.4	0.15	0.08
Type F (Furnace Welding)	A	0.3	1.2	0.05	0.05	0.4	0.4	0.4	0.15	0.08



Mechanical Properties

A53	Grade A	Grade B
Tensile Strength Min. psi (MPa)	48,000 (330)	60,000 (415)
Yield Strength Min. psi (MPa)	30,000 (205)	35,000 (240)



Physical Performance

Density 20°C Kg/dm³	Modulus of Elasticity Kn/² mm				Coefficient of Thermal Conductivity 20°C W/m K	Heat Capacity 20°C J/kg K	Resistivity 20°C Ωmm²/m
	20 C°	300 C°	400 C°	450 C°
7.85	210	192	184	179	51	461	0.20



Scope of Application

Construction: underground pipeline, underground water, hot water transmission, mechanical processing, bearing sleeve, processing machinery parts, etc.
Electrical: natural gas transmission, hydroelectric fluid pipelines, anti-static pipes for wind farms, etc.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
