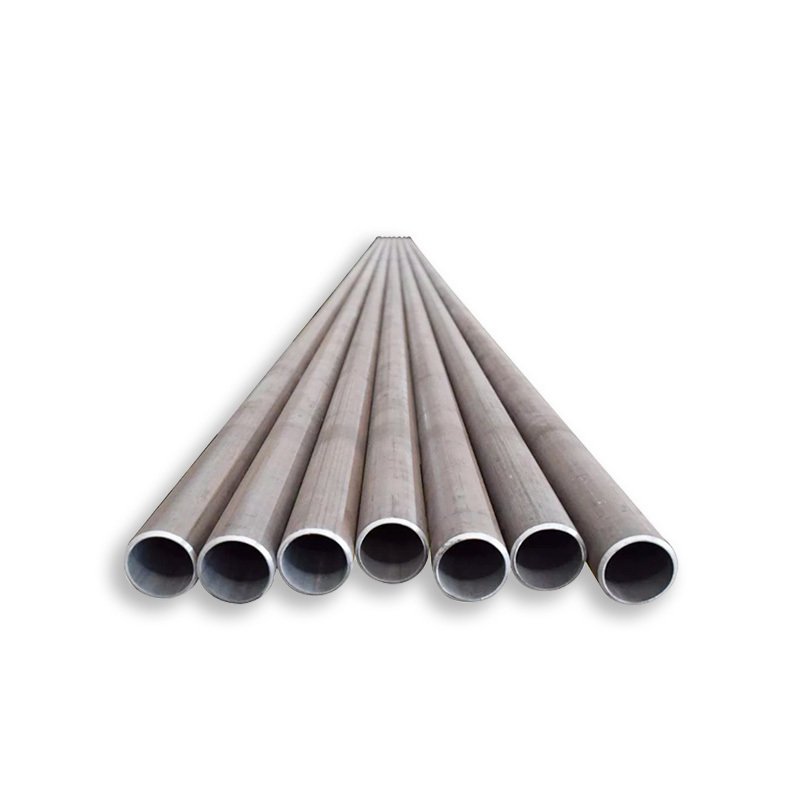

API 5CT Steel Pipe

API 5CT is a standard technical specification of steel pipes for casing and tubing in oil or gas industries. It can be used in oil or gas drilling and conveying. Commonly used oilfield API-5CT casing steel grades are J55, K55, N80-1, N80Q, P110. Casings are mostly used in oil well drilling. According to the API-5CT standard, pipes can be divided into STC (short thread), LTC (long thread) and BTC (support thread) and their joints.

Product Parameters

Product Name	API 5CT Steel Pipe
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	Seamless: 1/4"-36"	Welding: 21.3mm-3620mm
	Round Tube: 1/2"-10"	Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall Thickness	Seamless: 1.25mm-50mm	Welding: 1.65mm-65mm
Length	3-12 meters, Support customization
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.



Chemical Composition

Grade	C ≤	Si ≤	Mn ≤	P ≤	S ≤	Cr ≤	Ni ≤	With	V ≤	Als ≤
API 5CT J55	0.34-0.39	0.20-0.35	1.25-1.50	0.020	0.015	0.15	0.20	0.20	/	0.020
API 5CT K55	0.34-0.39	0.20-0.35	1.25-1.50	0.020	0.015	0.15	0.20	0.20	/	0.020
API 5CT N80	0.34-0.38	0.20-0.35	1.45-1.70	0.020	0.015	0.15	/	/	0.11-0.16	0.020
API 5CT L80	0.15-0.22	1.00	0.25-1.00	0.020	0.010	12.0-14.0	0.20	0.20	/	0.020
API 5CT J P110	0.26-035	0.17-0.37	0.40-0.70	0.020	0.010	0.80-1.10	0.20	0.20	0.08	0.020



Mechanical Properties

Grade	Yield Strength (Mpa)	Tensile Strength (Mpa)
API 5CT  J55	379-552	≥ 517
API 5CT  K55	≥ 655	≥ 517
API 5CT  N80	552-758	≥ 689
API 5CT  L80	552-655	≥ 655
API 5CT  P110	758-965	≥ 862



Scope of Application

API 5CT oil casing is mainly used to transport oil, natural gas, coal gas, water and other liquids, gases.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
