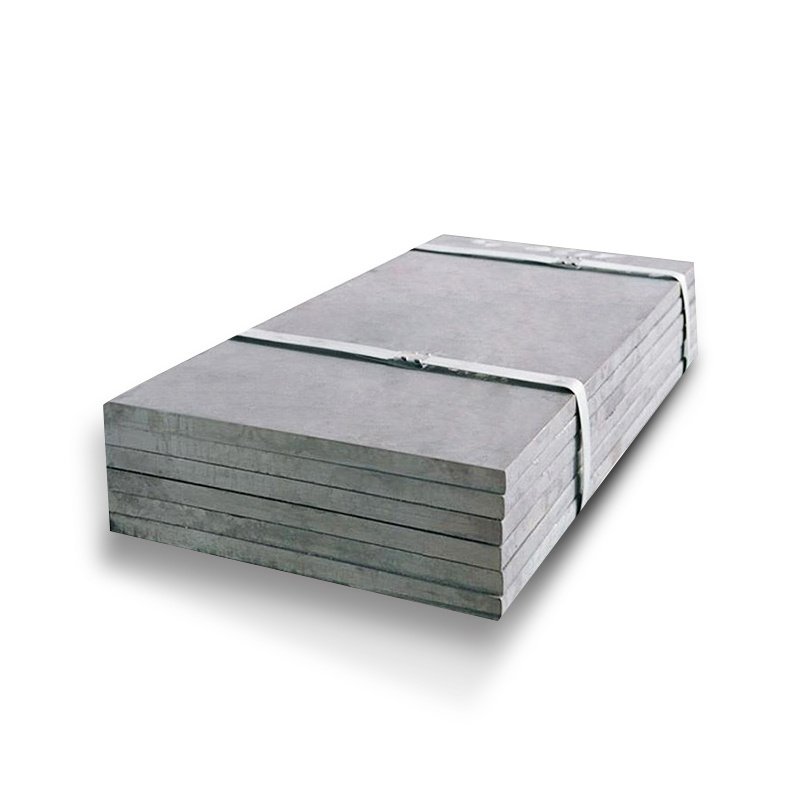

A515 Pressure Vessel Steel Plate

A515/SA-515 plate can be divided into 3 grades according to its minimum tensile strength: grade 60, grade 65 and grade 70. SA515 is a carbon sulfide steel plate for high-temperature pressure vessels that complies with ASTM A515/A515M standards. It has high strength and corrosion resistance and is suitable for manufacturing pressure vessels working in medium to high temperature environments. When using SA515 steel plate to manufacture pressure vessels, welding and heat treatment must be carried out in accordance with relevant standards and requirements to ensure the safety, reliability and durability of the vessel.

Product Parameters

Product Name	A515 Pressure Vessel Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



Chemical Composition

A515	C	Mn ≥	Si	P	S
Grade 60	0.24-0.31	0.98	0.13-0.45	0.035	0.035
Grade 65	0.28-0.33	0.98	0.13-0.45	0.035	0.035
Grade 70	0.31-0.35	1.3	0.13-0.45	0.035	0.035



Mechanical Properties

A515	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation Rate And 2 And (50mm) min.	Impact Test Temperature (°C)
Grade 60	415-550	220	25	-20, 40, -60
Grade 65	450-585	240	23	-20, 40, -60
Grade 70	485-620	260	21	-20, 40, -60



Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³



Scope of Application

ASTM A515 boiler vessel plate is mainly used for medium and high temperature welding boiler and other pressure vessel equipment.



Equivalent Material

ASTM A515	National Standard GB	Japanese Standard JIS	German Standard DIN	Legal Standard AFNOR	Conspire UNI	English Standard BS
Level 60	GB713 20g	JIS G3103 SB410	DIN 1715 1.0425	A48 CP, AP, FP	Fe 460-2-KW	Gr 360, 400
Level 65	GB713 22g	JIS G3103 SB450	DIN 1715 1.0435	A48 CP, AP, FP	Fe 460-2-KW	Gr 360, 400
Level 70	-	JIS G3103 SB480	DIN 1715 1.0844	A48 CP, AP, FP	Fe 460-2-KW	Gr 360, 400

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
