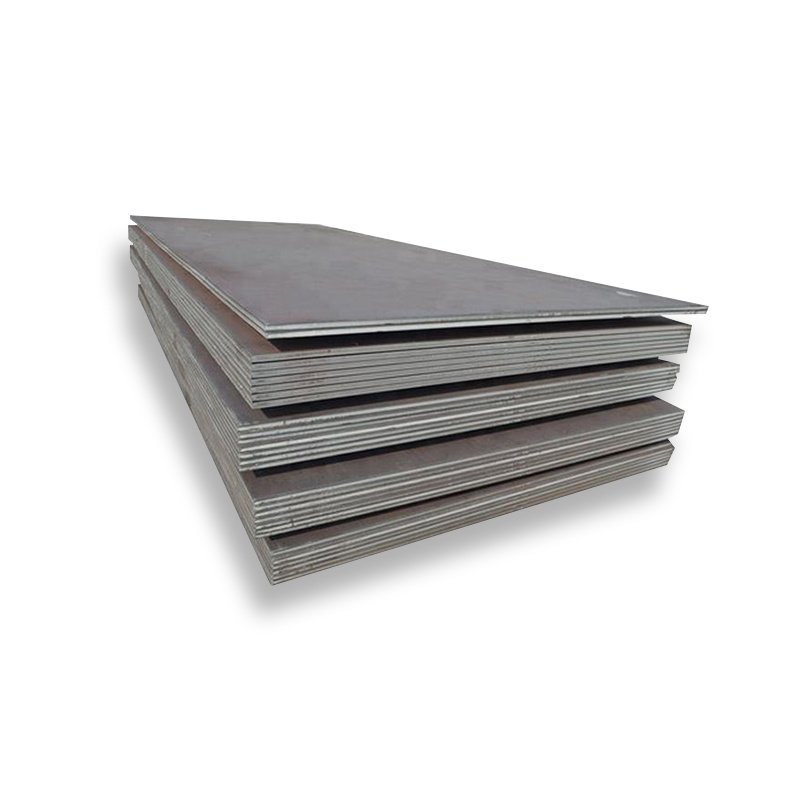

A573/A573M Carbon Steel Plate

A573/A573M steel plate has good impact resistance, small temperature deformation, good welding performance, micro-alloying, high purity, low carbon equivalent and strong resistance to hydrogen sulfur. Such plates are commonly used in petroleum, chemical industry, power stations, boilers and other industries to make reactors, heat exchangers, separators, spherical tanks, oil and gas tanks, liquefied gas tanks, nuclear reactor pressure shells, boiler drums, liquefied petroleum gas bottles, turbine casings and other equipment and components.

Product Parameters

Product Name	A573/A573M Carbon Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



Chemical Composition

A573	C max	Mn	P max	S max	Si
Grade 58	0.23	0.60-0.90	0.035	0.04	0.10-0.35
Grade 65	0.24-0.26	0.85-1.20	0.035	0.04	0.15-0.40
Grade 70	0.27-0.28	0.85-1.20	0.035	0.04	0.15-0.40



Mechanical Properties

A573	Tensile Strength		Yield Strength	Elongation %
Grade 58	58	400-490 Mpa	220 Mpa	21
Grade 65	65	450-530 Mpa	240 Mpa	20
Grade 70	70	485-620 Mpa	290 Mpa	28



Physical Performance

Physical Performance	Metric	Imperial
Density	7.85 g/cm3	0.282 lb/in³



Scope of Application

ASTM A573 grade steel plate for welded bridge structures.
