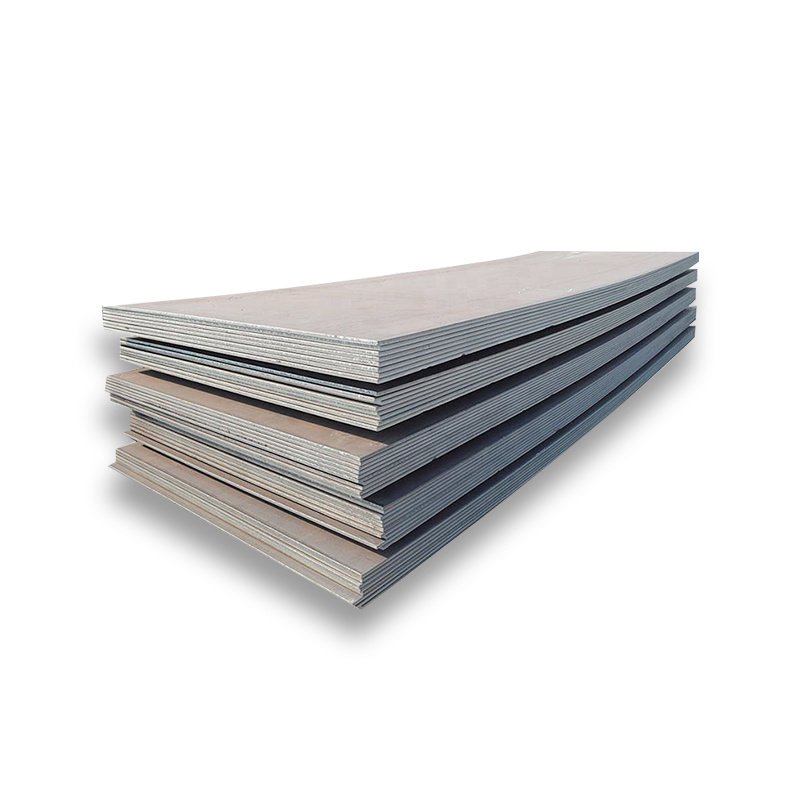

API Spec 5L Pipeline Steel Coil Steel Plate

API SPEC 5L-2011 is compiled and published by the American Petroleum Institute and is used throughout the world. The main materials of this pipe are L245, L290, L360, L415, L480, GR.B, X42, X46, X56, X65, X70, X80, X100 and other steel grades. PSL refers to the product specification level established for the API 5L standard. Piping specification classes are classified into PSL1 and PSL2. For pipeline standards, PSL1 and PSL2 pipelines have different levels of quality requirements. API Spec 5L pipeline steel plate is commonly used to manufacture pipeline steel pipes that extract oil, steam, and water on the ground in the oil and gas industry.

Product Parameters

Product Name	API Spec 5L Pipeline Steel Coil Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



Chemical Composition

API Spec 5L PSL 1	Brand	C	Mn	P	S
	B	≤ 0.28	≤ 1.20	≤ 0.030	≤ 0.030
	X42	≤ 0.28	≤ 1.30	≤ 0.030	≤ 0.030
	X46	≤ 0.28	≤ 1.40	≤ 0.030	≤ 0.030
	X52	≤ 0.28	≤ 1.40	≤ 0.030	≤ 0.030
API Spec 5L PSL 2	B	≤ 0.24	≤ 1.20	≤ 0.025	≤ 0.015
	X42	≤ 0.24	≤ 1.30	≤ 0.025	≤ 0.015
	X46	≤ 0.24	≤ 1.40	≤ 0.025	≤ 0.015
	X52	≤ 0.24	≤ 1.40	≤ 0.025	≤ 0.015



Mechanical Properties

Standard	Brand	Yield Strength (MPa)	Tensile Strength (MPa)
API Spec 5L PSL 1	A25	172	310
	A	207	331
	B	241	414
	X42	290	414
	X46	317	434
	X52	359	455
	X56	386	490
	X60	414	517
	X65	448	531
	X70	483	565
API Spec 5L PSL 2	B	290-496	414-758
	X42	317-524	434-758
	X46	359-531	455-758
	X52	386-544	490-758
	X56	414-565	517-758
	X60	448-600	531-758
	X65	483-621	565-758
	X70	552-690	621-827



Scope of Application

API Spec 5L specifies the manufacture of two product levels (PSL1 and PSL2). PSL refers to the product specification level established for the API 5L standard. Piping specification classes are classified into PSL1 and PSL2. For pipeline standards, PSL1 and PSL2 pipelines have different levels of quality requirements. API Spec 5L pipeline steel plate is used to manufacture pipeline steel pipes that extract oil, steam, and water on the ground in the oil and gas industry.



Equivalent Material

Materials No.	European Standard EN 10208-2	German Standard DIN 17172	API 5L
1.0457	L 245 NB	StE 240.7	Gr.B
1.0484	L 290 NB	StE 290.7	X42
1.0582	L 360 NB	StE 360.7	X52
1.8972	L 415 NB	StE 415.7	X60
1.0418	L 245 MB	StE 240.7 TM	Gr.B
1.0429	L 290 MB	StE 290.7 TM	X42
1.0578	L 360 MB	StE 360.7 TM	X52
1.8973	L 415 MB	StE 415.7 TM	X60
1.8975	L 450 MB	StE 445.7 TM	X65
1.8977	L 485 MB	StE 480.7 TM	X70

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
