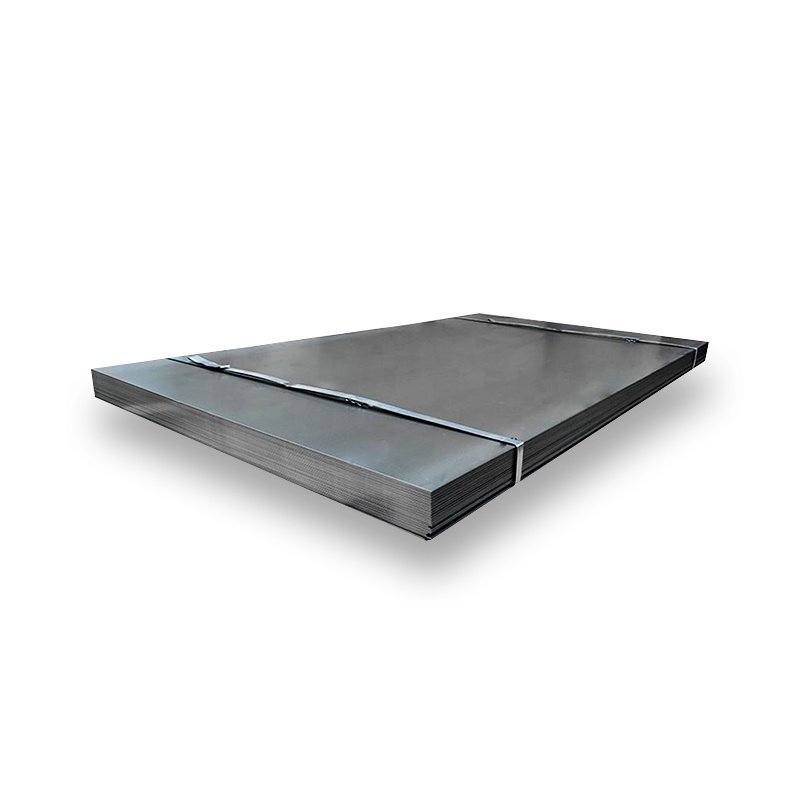

EN10025-2 S235/S275/S355 Carbon Steel Plate

EN10025-2 steel plate has good welding performance, plasticity, toughness and processing technology, good corrosion resistance, high strength and low cold brittle critical transition temperature. The use of high-strength low-alloy steel can effectively reduce the weight of the structure, improve the strength and stiffness of the structure, and improve durability while reducing the thickness of the structure. EN10025-2 steel plates are commonly used in construction equipment, crane booms, automobile frames and general manufacturing. They are suitable for use in low temperature environments.

Product Parameters

Product Name	EN10025-2 S235/S275/S355 Carbon Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



Chemical Composition

Brand	C			Si max	Mn max	P max	S max	N max	Cu max
	≤ 16	16-40	> 40
S235JR	0.17	0.17	0.20	-	1.40	0.035	0.035	0.012	0.55
S275JR	0.21	0.21	0.22	-	1.50	0.035	0.035	0.012	0.55
S275J0	0.18	0.18	0.18	-	1.50	0.030	0.030	0.012	0.55
S275J2	0.18	0.18	0.18	-	1.50	0.025	0.025	-	0.55
S355JR	0.24	0.24	0.24	0.55	1.60	0.035	0.035	0.012	0.55
S355J0	0.20	0.20	0.22	0.55	1.60	0.030	0.030	0.012	0.55
S355J2	0.20	0.20	0.22	0.55	1.60	0.025	0.025	-	0.55



Mechanical Properties

Thickness mm	Tensile Strength
	≤ 3	3-100	100-150	150-250	250-400
S235JR	360-510	360-510	350-500	340-490	-
S275JR	430-580	410-560	400-540	380-540	-
S275J0	430-580	410-560	400-540	380-540	-
S275J2	430-580	410-560	400-540	380-540	-
S355JR	510-680	470-630	450-600	450-600	-
S355J0	510-680	470-630	450-600	450-600	-
S355J2	510-680	470-630	450-600	450-600	450-600



Thickness mm	Yield Strength
	≤ 16	16-40	40-63	63-80	80-100	100-150	150-200	200-250	250-400
S235JR	235	225	215	215	215	195	185	175	-
S275JR	275	265	255	245	235	225	215	205	-
S275J0	275	265	255	245	235	225	215	205	-
S275J2	275	265	255	245	235	225	215	205	195
S355JR	355	345	335	325	315	295	285	275	-
S355J0	355	345	335	325	315	295	285	275
S355J2	355	345	335	325	315	295	285	275	265



Scope of Application

EN10025-2 steel plate structures are used in trucks, transmission towers, dump trucks, cranes, trailers, bulldozers, excavators, forestry machinery, etc.



Equivalent Material

European Standard	American Standard
S235	A283C
S275	A570Gr40
S355	A572Gr50

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
