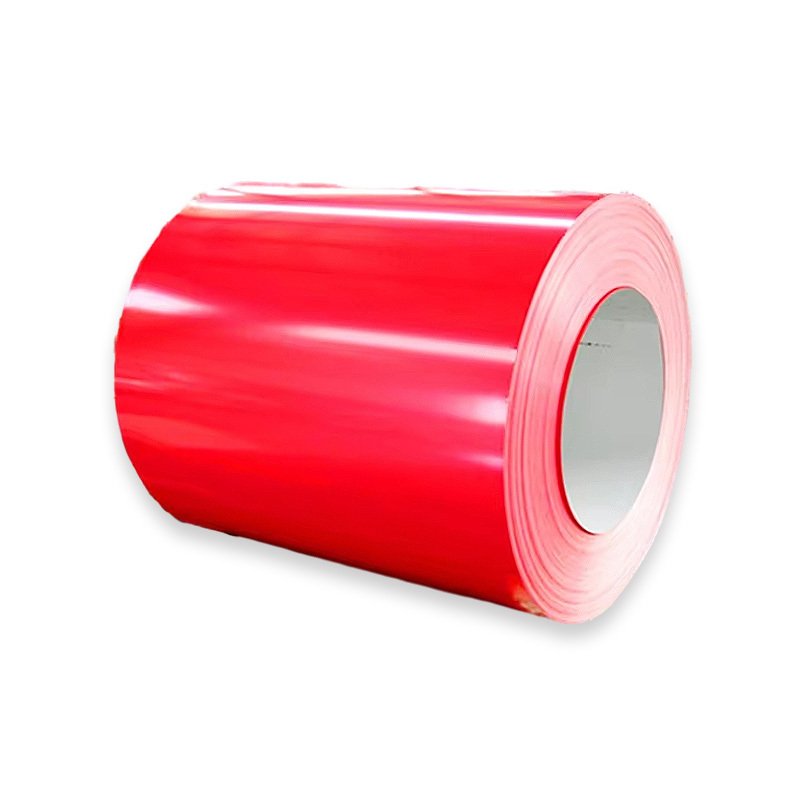

PPGL Steel Coil

PPGL is GL steel sheets coated with a colored paint layer.
Characteristics: PPGL provides enhanced corrosion resistance along with a wide range of color choices. It is suitable for architectural and industrial applications in harsh weather conditions.
Uses: Frequently used in the production of roofing, wall cladding, oil tanks, refrigeration equipment, and more.

PPGL stands for pre-painted galvalume steel, which is a kind of color-coated steel with GL as substrate. It combines the strength of steel with excellent anti-corrosion of Zn-Al coating. The galvalume coating is made of 55% aluminum, 43.4% zinc, and 1.6% silicon. Except for their excellent corrosion resistance, PPGL sheets also have high thermal reflectivity, which makes them heat-resisting.



Product Parameters

Product Name	PPGL Steel Coil
Thickness	0.13mm-0.8mm
Width	600mm-1250mm
Length	Support Customization
Color	According RAL Color Card (Can provide custom pattern)
Paint	PE, SMP, HDP, PVDF
Primer	Epoxy primer, Polyester primer, Water soluble acrylic primer, Polyurethane primer
Coating Thickness	Top Coat: 10-30mic, Back Paint: 5-25mic

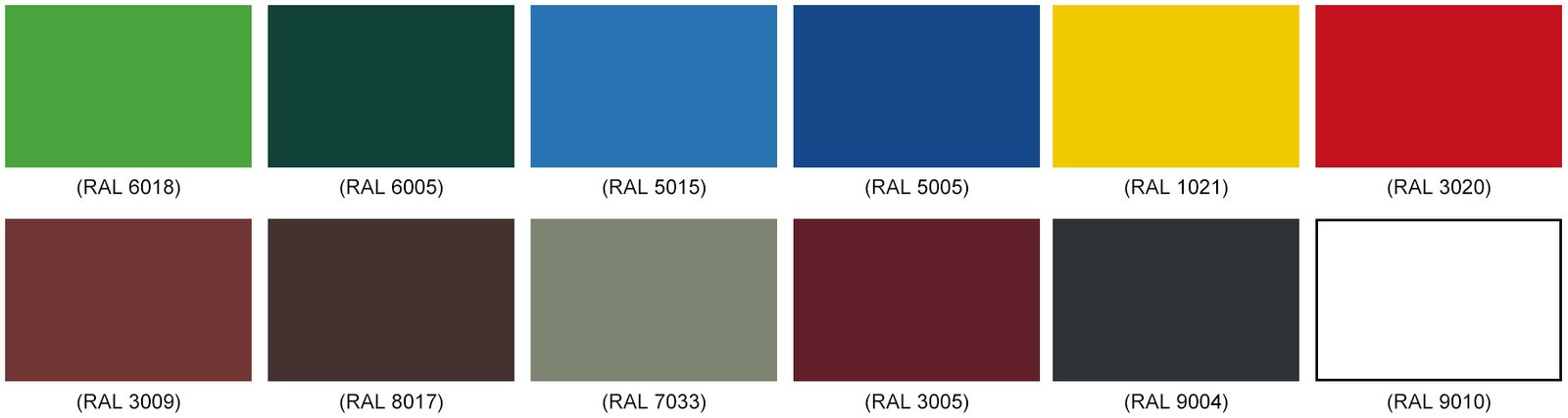

Color Selection

We provide many colors to choose from, the following are common colors, if you like other colors or patterns, please send us the RAL color code.



Surface Treatment
Laminated Film
The process is to coat a transparent organic film (30-50 µm) on the steel coil at high temperature. It has some unique properties, such as fire resistance, fingerprint resistance, excellent durability, anti-fouling ability, etc. Obviously, this treatment method can protect the steel coil well during storage and transportation.
Embossing
Embossed PPGI steel coil design has different patterns. Popular patterns are stucco, rhombus, etc. And it's customizable. Compared with the smooth steel coil, it has a vivid 3D effect.


Coating Type

In the coil coating, the durability of the role is the resin and pigment, the most commonly used finish polyester, silicon modified polyester, high durability polyester and polyvinylidene fluoride.
Polyester PE
Good adhesion, rich color, wide range in formability and outdoor durability, medium chemical resistance, low cost.
Silicon Modified Polyester SMP
The hardness, abrasion resistance and heat resistance of the coating film are good; as well as good external durability and powder resistance, gloss retention, general flexibility and medium cost.
High Durability Polyester HDP
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, good film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride PVDF
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good formability, dirt resistance, limited color, and high cost.


Scope of Application

Construction industry: such as roof, interior and exterior wall panels, balcony panels, suspended ceilings, partition walls, windows, door panels, etc.
Transportation: For example, car trim panels, train or ship decks, containers, etc.
Electrical equipment: mainly used for making freezers, washing machines, air conditioners and other enclosures. PPGI coils for home appliances have the best quality and the highest production requirements.
Furniture: such as wardrobes, lockers, radiators, lampshades, tables, beds, bookcases, shelves, etc.
Other industries: such as roller shutters, billboards, traffic signs, elevators, whiteboards, etc.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
