Colored Corrugated Roof Sheet

Corrugated color roof is a lightweight, strong, anti-corrosion building material. It is made of color-coated steel plate and designed in different styles, such as wavy, trapezoidal rib, tile, etc.

In addition, our corrugated steel roof panels are available in many colors and sizes. We also provide customized solutions to better meet your needs. Our color coated roof panels are suitable for many applications, such as garages, industrial workshops, agricultural buildings, barns, garden sheds, etc.



Product Parameters

Product Name	Color Coated Galvalume Steel Sheet PPGL
Thickness	0.2mm-1.2mm
Width	600mm-1250mm
Length	750mm-1100mm
Color	According RAL Color Card (Can provide custom pattern)
Shape	Wave, Trapezoid, Tile, Curve, etc.
Paint	PE, SMP, HDP, PVDF
Primer	Epoxy primer, Polyester primer, Water soluble acrylic primer, Polyurethane primer
Coating Thickness	Top: 11-35μm, Back: 5-14μm



Color Selection

We provide many colors to choose from, the following are common colors, if you like other colors or patterns, please send us the RAL color code.



Feature Introduction

Light Weight: The weight is 6-14 kg/m 2, which is equivalent to 1/30 of a brick wall.
Excellent Corrosion Resistance: Made of color-coated steel plate, it has excellent corrosion resistance and has a service life of more than 30 years.
High Strength: Its strength is very high and it has a high resistance to unnecessary damage or tearing.
Colorful Aurface: No need for decoration. In addition, it has excellent color retention.
Quick And Easy Installation: The construction period is shortened by more than 40%.
Environmental Protection: Compared with other building materials, it is easy to recycle and has less impact.


Shape Introduction

Bend Profile Roof Panel
The curved roof adopts the best grade design color coated steel plate and provides various sizes, sizes and designs. These roof panels have a variety of uses in building structures with large spatial spans. Due to the convenient and quick installation, these roof panels are made in full accordance with customer requirements and are widely praised as perfect architectural ideas. Our curved roof panels are available in various lengths and thicknesses according to customer's specific requirements.

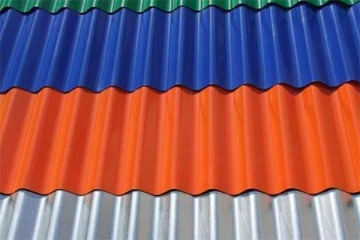

Wavy Corrugated Roof Slab
Wavy color coated panels are widely used as roofs or wall panels in industrial and civil buildings, warehouses, special buildings, etc. The most commonly used widths of corrugated roof panels are 780mm, 836mm, 852mm and 820mm. We can also customize the size, length and color of the wavy corrugated roof panels according to your needs!
Trapezoidal Corrugated Roof Slab
Trapezoidal profiles are large structural corrugated roof panel members due to their high load-bearing capacity. Due to the load-bearing effect of the arch, the arch groove can bridge spaces up to 20 m without using supports. The trapezoidal roof has excellent sound suppression characteristics. After testing, the noise reduction of the trapezoidal profile is evaluated as high as 53 decibels. Although the trapezoidal plate is light in weight, it is very durable. It turns out that they cannot be damaged by the degenerating effects of wind and atmospheric effects such as acid rain.

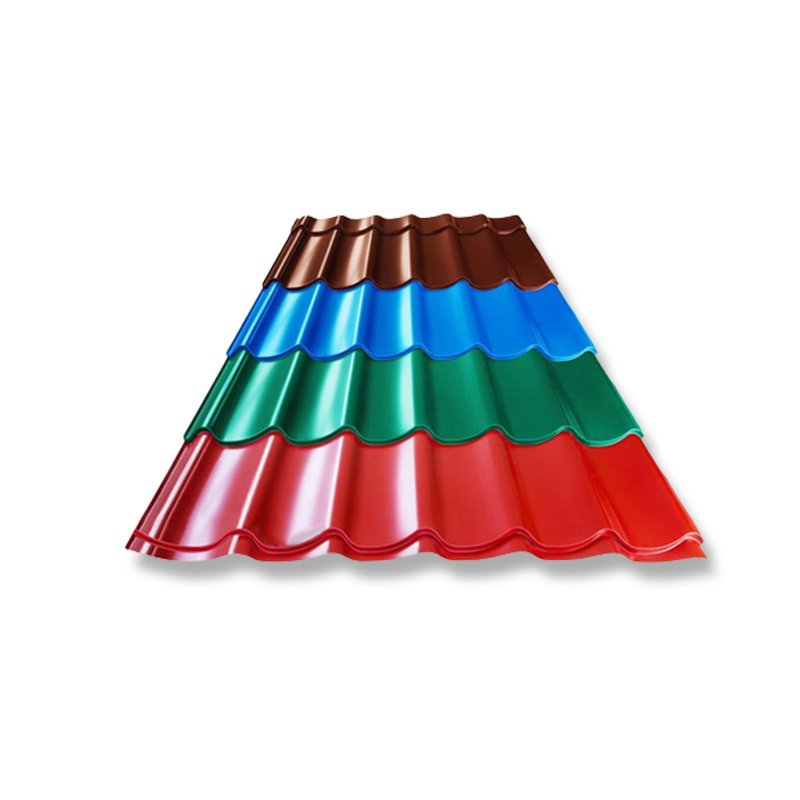

Corrugated Tile
Corrugated roof shingles combine the attractive style of traditional shingles with the lightweight nature of steel. It is an ideal material for many roofing applications, such as garden sheds, garages, summer houses and workshops. In the past, building a roof required dozens of individual tiles. The entire process is time-consuming, costly, and sometimes even endangers the safety of people passing. Now with this highly durable and easy-to-install material, the installation speed is greatly improved, and the entire construction process is safer and environmentally friendly.



Curved Corrugated Roof Slab	Curve Roof	Wavy Corrugated Roof Slab	Wavy Roof
Trapezoidal Corrugated Roof Slab	Trapezoidal Roof	Corrugated Tile	Color Tile



Scope of Application

Due to its high standards of corrosion resistance and waterproof properties. Color corrugated board is widely used in modern construction industry and residential field. For the construction industry, corrugated steel roofing is widely used in construction factories, warehouses, departments, shops, barns, stables, cowsheds, etc. Colored corrugated roofs also perform well in most residential construction projects, such as houses, temporary houses, garages, storage rooms, cabins, sheds, etc. Due to its low installation cost and good corrosion resistance, color coated corrugated board appears in more and more public buildings, including cinemas, exhibition halls, gymnasiums, schools and hospitals.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
