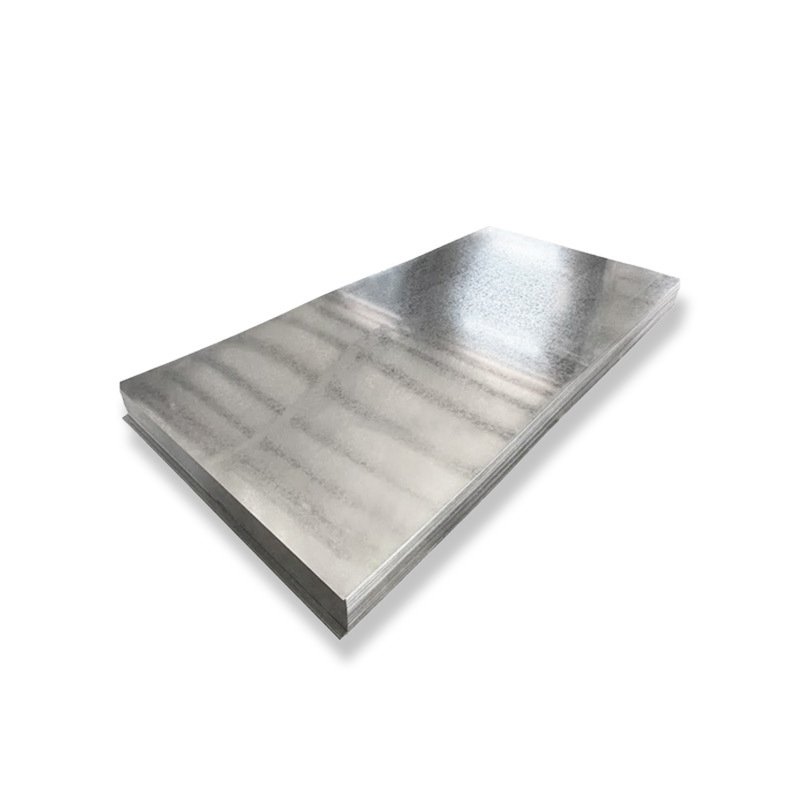

AZ50 Galvalume Steel Sheet

As the surface coating of AZ50 galvalume steel sheet is an alloy composed of aluminum, zinc and other trace elements, it has outstanding corrosion resistance and gradually replaces galvanized plate. Aluminum-zinc plated plate is mainly used for steel structure roof, wall surface, switch cabinet body and household appliance board. The mixed structure of hot dip aluminum zinc silicon coating has its unique advantages in corrosion resistance. AZ50 aluminized zinc is a high quality corrosion resistant steel. It is made of a combination of aluminum and zinc, with an aluminum content of at least 50%. AZ50 aluminized zinc is not only suitable for the exterior of your house, but also for structural purposes and industrial applications. This alloy has many advantages, including excellent strength, impact resistance and excellent weldability.

Scope of Application

Construction industry: such as roof, internal and external wall panels, sound insulation walls, pipes, garages, etc.
Automotive industry: such as mufflers, exhaust pipes, wiper accessories, fuel tanks, truck containers, etc.
Household appliances: such as refrigerator backplane, air conditioner, microwave oven, LED backlight, electric cabinet, etc
Agricultural use: such as greenhouse, granary, pig farm, chicken coop, etc
Other industries: such as heat exchangers, dryers, etc.


Product Parameters

Product Name	AZ50 Galvalume Steel Sheet
Thickness	0.12mm-6.00mm
Width	600mm-1500mm
Length	1m-12m, Support Customization
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Thickness of Aluminum Zinc Coating	30-185g/m²
Content of Al-Zn Coating	Al: 55%, Zn: 43.5%, Si: 1.5%



Chemical Composition

Al	Zn	Si	Fe	Cu	Cd	Pb	Sn	Ni	Close Cr
55-58	41-43	1.5-2	0.25	0.03	0.05	0.01	0.05	0.05	0.05



Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-



Galvanized Surface Selection

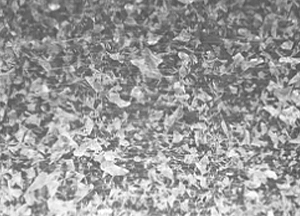

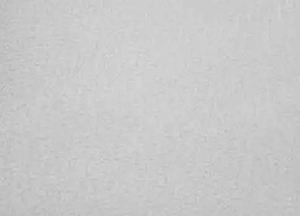

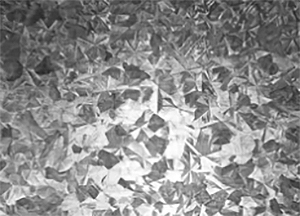

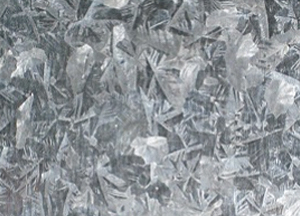

Zero Spangle	Minimized Spangle	Normal Spangle	Large Spangle



Type of Coating	Recommended Coating Weight
Aluminum-zinc Alloy	30/40/50/60/75/90/100/150
A: Coating quality50g/㎡,approximately equal to the coating thickness13.3pm



Project	Classification	Symbol
Type of Coating	Aluminum-zinc Alloy	AZ
Surface Finish	Conventional Sequins	R
	Minimize Sequins	M
	Skin Through	S
Surface Treatment	Chromate Passivation	c
	Non-chromate Passivation	C5
	Chromate Passivationoiling	CO
	Chromium-free Passivationoiling	CO5
	Anti-fingerprint	N
	Chromate-free/Anti-fingerprint	N5
	No chromate high weather resistance fingerprint	NW
	Oil filling	0
	No treatment	U



Material Comparison

Chinese Standard	European Standards	American Standard	Japanese Standard
DC51D+AZ	DX51D+AZ	CS Type B, Type C	SGLCC
DC52D+AZ	DX52D+AZ	DS	SGLCD
S250GD+AZ	S250GD+AZ	255	-
S300GD+AZ	-	-	-
S350GD+AZ	S350GD+AZ	345	Class1 SGLC490
S550GD+AZ	S550GD+AZ	550	SGLC570

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
