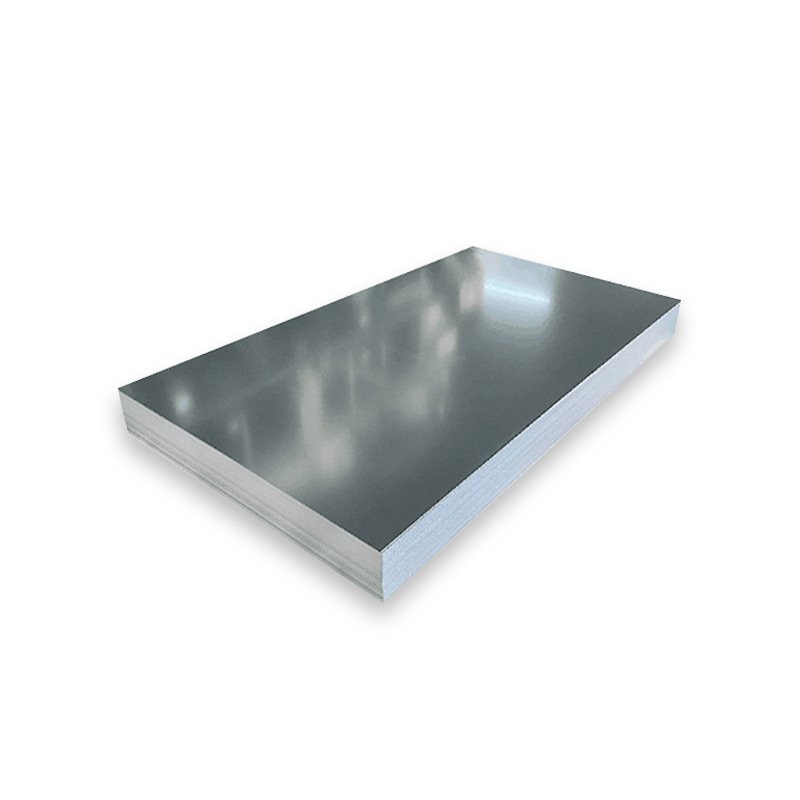

Galvalume Steel Sheet

Through electrolytic galvanizing, a uniform and dense zinc layer is finally formed on the surface of the steel, but the mechanical properties of the material are still maintained. Electrogalvanized steel is usually sold in coil or sheet form. EG coil is a kind of material that can be cut, slitted and profiled for other purposes. The steel grade of galvanized steel consists of base metal grade, galvanized (E), galvanized layer type and weight. The electro-galvanized products based on SPCC, SPCD, SPCE, SPCF and SPCG are named SECC, SECD, SECE, SECF and SECG respectively.

The production process of aluminum zinc plating is as follows:
Uncoiling-cleaning-annealing-zinc pot-cooling-air knife-straightening-post-treatment-coiling
Heat Reflection
People use it as a thermal insulation material, and its thermal reflectivity is up to twice that of galvanized steel.
Heat Resistance
Galvanized steel coil has good heat resistance and can withstand high temperatures above 300°C, which is very similar to the oxidation resistance of aluminized steel at high temperatures. Commonly used in chimney tubes, ovens, illuminators, fluorescent lampshades, etc.
Corrosion Resistance
The key to the corrosion resistance of aluminized zinc steel coil is the protective performance of aluminum. Once the zinc is worn, the aluminum forms a dense layer of aluminum oxide, preventing further internal corrosion.
Economy
The density of 55% AL-Zn is smaller than that of Zn. Therefore, when the coating weight and thickness are the same, the area of the aluminum-zinc plated steel sheet is 3% larger than that of the galvanized steel sheet.
Easy to Paint
The coating material on the aluminized zinc steel plate has excellent adhesion, and can be directly coated with tar on advertising boards and common plates without pretreatment such as weathering.

Scope of Application

Construction industry: such as roof, internal and external wall panels, sound insulation walls, pipes, garages, etc.
Automotive industry: such as mufflers, exhaust pipes, wiper accessories, fuel tanks, truck containers, etc.
Household appliances: such as refrigerator backplane, air conditioner, microwave oven, LED backlight, electric cabinet, etc
Agricultural use: such as greenhouse, granary, pig farm, chicken coop, etc
Other industries: such as heat exchangers, dryers, etc.



Product Parameters

Product Name	Galvalume Steel Sheet
Thickness	0.12mm-6.00mm
Width	600mm-1500mm
Length	1m-12m, Support Customization
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Thickness of Aluminum Zinc Coating	30-185g/m²
Content of Al-Zn Coating	Al: 55%, Zn: 43.5%, Si: 1.5%



Chemical Composition

Al	Zn	Si	Fe	Cu	Cd	Pb	Sn	Ni	Close Cr
55-58	41-43	1.5-2	0.25	0.03	0.05	0.01	0.05	0.05	0.05



Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-



Galvanized Surface Selection

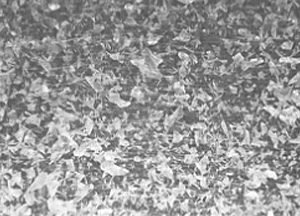

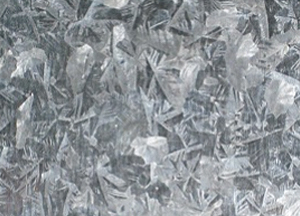

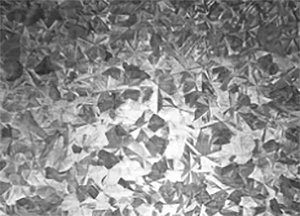

Zero Spangle	Minimized Spangle	Normal Spangle	Large Spangle



Type of Coating	Recommended Coating Weight
Aluminum-zinc Alloy	30/40/50/60/75/90/100/150
A: Coating quality50g/㎡,approximately equal to the coating thickness13.3pm



Project	Classification	Symbol
Type of Coating	Aluminum-zinc Alloy	AZ
Surface Finish	Conventional Sequins	R
	Minimize Sequins	M
	Skin Through	S
Surface Treatment	Chromate Passivation	c
	Non-chromate Passivation	C5
	Chromate Passivationoiling	CO
	Chromium-free Passivationoiling	CO5
	Anti-fingerprint	N
	Chromate-free/Anti-fingerprint	N5
	No chromate high weather resistance fingerprint	NW
	Oil filling	0
	No treatment	U



Material Comparison

Chinese Standard	European Standards	American Standard	Japanese Standard
DC51D+AZ	DX51D+AZ	CS Type B, Type C	SGLCC
DC52D+AZ	DX52D+AZ	DS	SGLCD
S250GD+AZ	S250GD+AZ	255	-
S300GD+AZ	-	-	-
S350GD+AZ	S350GD+AZ	345	Class1 SGLC490
S550GD+AZ	S550GD+AZ	550	SGLC570

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
