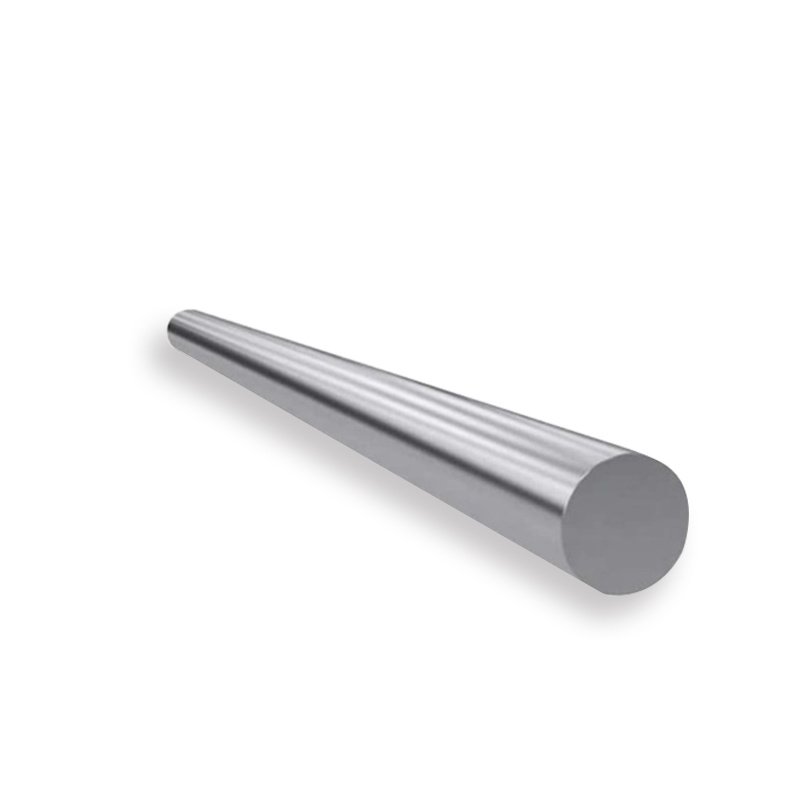

409 Stainless Steel Bar

409 stainless steel is distinguished from other types of stainless steel for its chemical composition.  Iron, with large amounts of chromium and small amounts of carbon, manganese, silicon and nitrogen compose this material. Iron is the primary element of 409 stainless steel, providing its strength and stability. Chromium accounts for its corrosion resistance and helps form a protective oxide layer on the surface. Carbon helps increase the hardness and wear resistance. Manganese acts as a stabilizer to prevent excessive grain growth during heat treatment. Silicon enhances oxidation resistance while preventing scaling at high temperatures. Nitrogen improves mechanical properties such as tensile strength and yield strength. This unique combination of elements gives 409 stainless steel excellent thermal expansion capabilities, making it suitable for high-temperature applications without compromising its structural integrity or dimensional stability. Its chemical composition also provides good solderability, thus simplifying the manufacturing process.

Product Parameters

Product Name		409 Stainless Steel Bar
Type		Steel Bar
Outer Diameter	Round Bar	4mm-500mm
	Hexagon Bar	18mm-57mm (11/16″ to 2-3/4″)
	Square Bar	18mm-47mm (11/16″ to 1-3/4″)
	Flat Steel	1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc.
Scope of Application		Stainless steel bars are used in a variety of industries such as shipbuilding, Defense, Automotive, Textiles, Paper and pulp, Manufacturing, Cement, Heavy earthmoving equipment and construction, etc.



Chemical Composition

C	Si	Mn	Cr	Ni	S	P
≤ 0.08	≤1.0	≤1.0	10.5～11.75	≤ 0.5	≤ 0.045	≤ 0.045



Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥360	≥175	≥25	≤ 162HBW



Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(NΩ.m)
7.80	200	11.0	25.8	600

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
