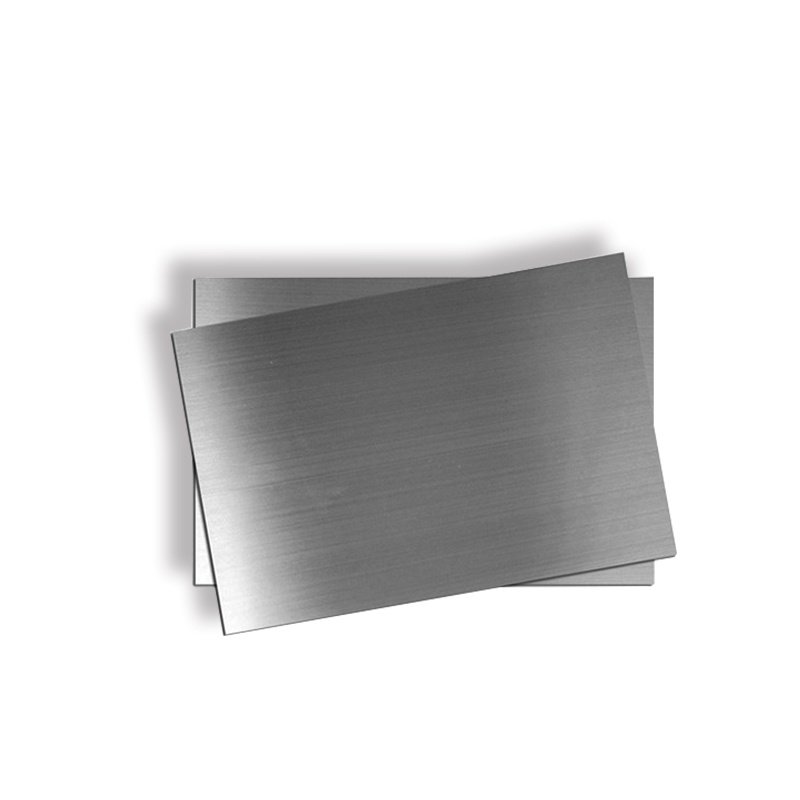

301 Stainless Steel Plate

301 stainless steel is a metastable austenitic stainless steel that has a complete austenitic structure under full solid solution conditions.  Among stainless steels, 301 is the steel type that is most easily strengthened by cold deformation.  Through cold deformation processing, the strength and hardness of the steel can be improved, and sufficient plasticity and toughness can be retained.  In addition, this steel has good rust resistance under atmospheric conditions.  301 is mainly used in the cold working state for equipment parts that can withstand higher loads, reduce the weight of the equipment and make it rust-free.  In addition, this steel is prone to work hardening when impacted by external forces and can absorb more impact energy, providing more reliable safety protection for equipment and personnel.  However, 301 stainless steel plate has poor corrosion resistance in chemical media such as acid, alkali and salt, so it is not recommended for use in harsh corrosive environments.

Product Parameters

Product Name	301 Stainless Steel Plate
Type	Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application	Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging, Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.
Certificate	ISO, SGS, BV, etc.
Production Technology	Hot Rolling, Cold Rolling
Edge Processing	Edging, Trimming



Chemical Composition

C	Si	Mn	Cr	Ni	S	P
≤ 0.15	≤ 1.0	≤ 2.0	16.0～18.0	6.0～8.0	≤ 0.03	≤ 0.045



Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥ 520	≥ 205	≥ 40	≤ 187HB ;≤ 90HRB;≤ 200HV



Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(μohm.in)
7.88	193	16.9	16.2	27.4

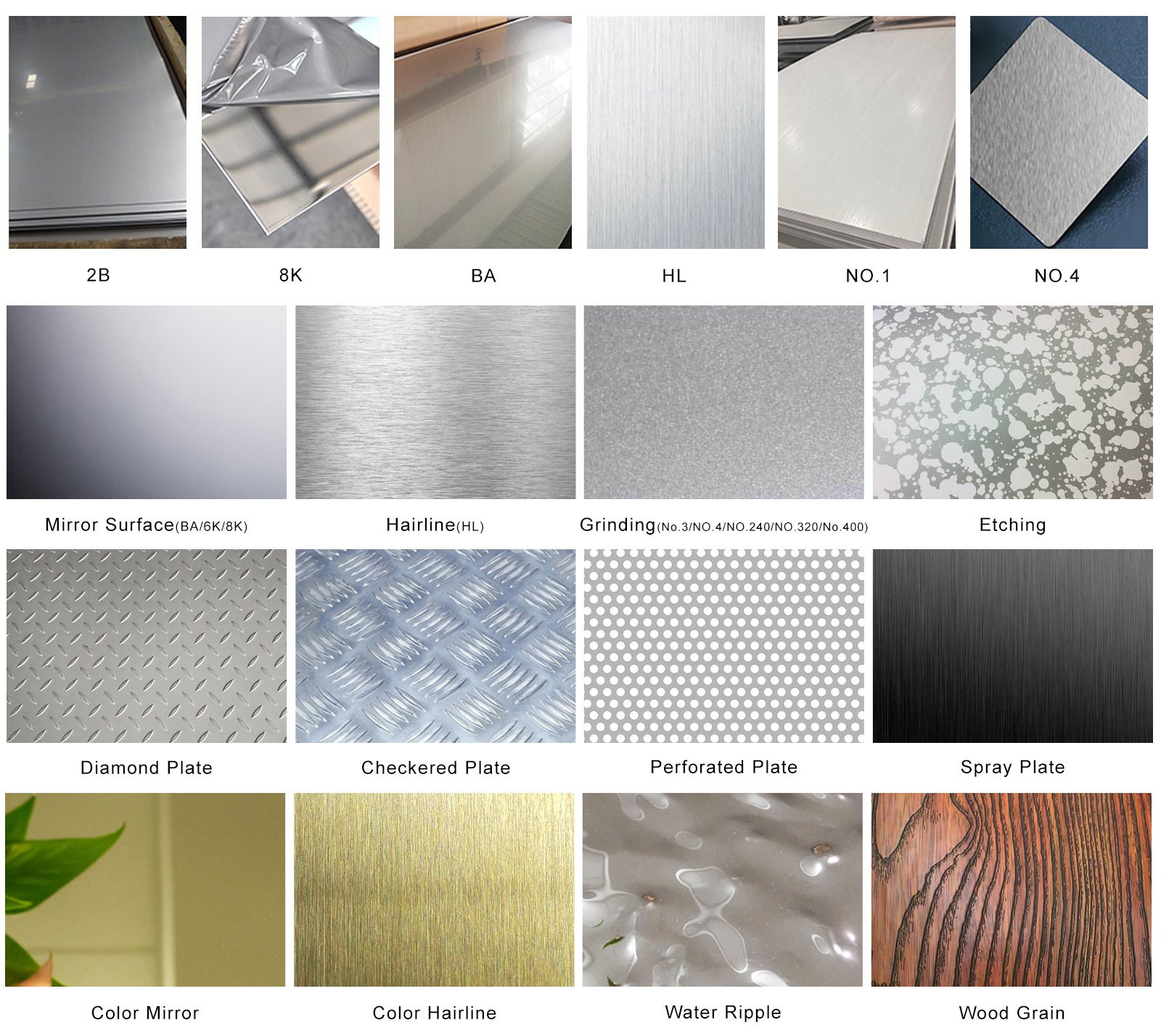

Surface Selection

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
