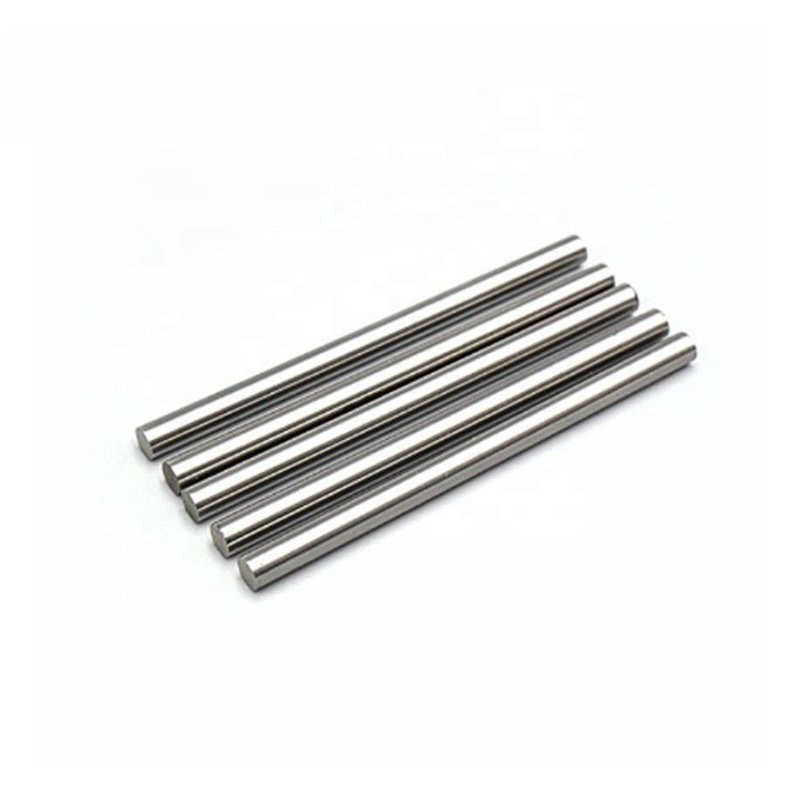

Inconel 600 Bar

Inconel 600 alloy is mainly composed of nickel and chromium. In addition, the alloy contains a smaller proportion of iron, as well as trace amounts of silicon, carbon and manganese. This unique chemical composition gives Inconel 600 bars excellent corrosion resistance and mechanical strength at high temperatures. Inconel 600 alloy exhibits excellent mechanical properties over a wide temperature range and is capable of use at temperatures up to 1093°C (2000°F) while maintaining good creep and fracture resistance. Its corrosion resistance is particularly outstanding and it can resist a variety of corrosive media, including seawater, organic acids, and high-temperature and high-pressure steam environments.



Product Parameters

Product Name		Inconel 600 Bar
Outer Diameter	Round Bar	4mm-500mm
	Hexagon Bar	18mm-57mm (11/16″ to 2-3/4″)
	Square Bar	18mm-47mm (11/16″ to 1-3/4″)
	Flat Steel	1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling



Chemical Composition

C	Si	S	Cr	Mn	Fe	Ni	Cu
0.15 max	0.5 max	0.015 max	14.0 - 17.0	1.0 max	6.0 - 10.0	72.0 min	0.5 max



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
110	85	10



Physical Performance

	Units	Temperature in°C
Density	8.47 g/cm³	Room
Specific Heat	0.106 Kcal/kg.C	22°
Melting Range	1354-1413°C	-
Modulus of Elasticity	214 KN/mm²	22°
Electrical Resistivity	103 µΩ.cm	Room
Coefficient of Expansion	13.3 µm/m °C	20 - 100°
Thermal Conductivity	14.9 w/m-° K	20°



Scope of Application

The average utilization of this nickel alloy includes the chemical, pulp and paper, aerospace, nuclear engineering and heat treatment industries.
