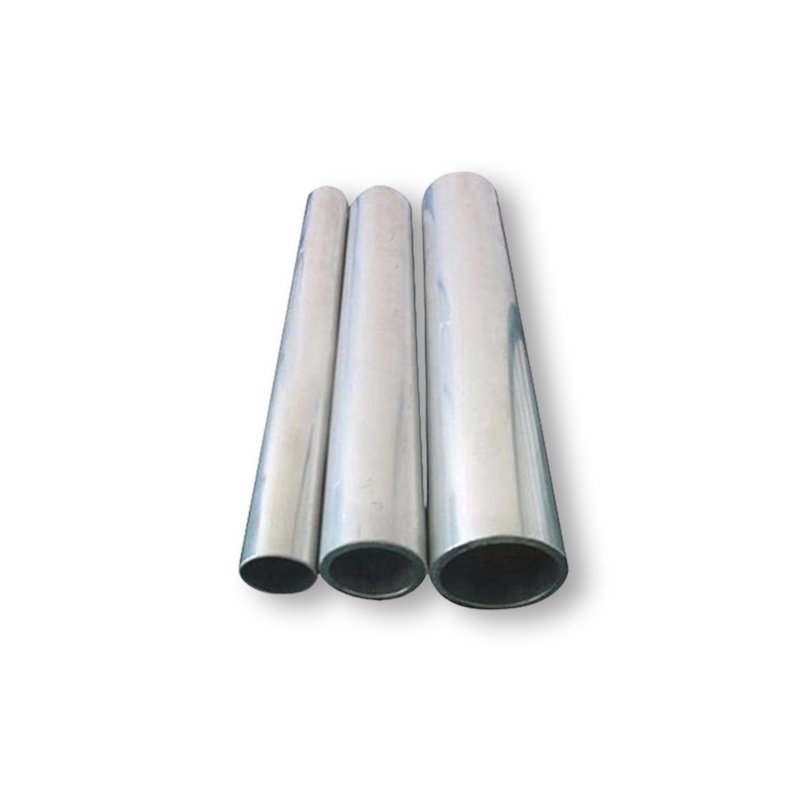

Hastelloy B-2 Pipe

Hastelloy B2 pipe has a chemical composition mainly including nickel, chromium, molybdenum and a small amount of iron, tungsten and other elements. The combination of these elements leads to excellent corrosion resistance and high-temperature strength. Among them, the nickel element provides good corrosion resistance, the chromium element enhances the material's corrosion resistance in an oxidizing environment, and the molybdenum element improves the material's corrosion resistance in a reducing environment. Moreover, the addition of elements such as iron and tungsten further add to the strength and hardness of the material. Hastelloy B2 pipes have good processing properties and can be used for hot processing and cold processing. Hot processing includes casting, hot rolling, heat treatment and other processes, while cold processing includes cold rolling, cold drawing, stamping and other processes.



Product Parameters

Product Name		Hastelloy B-2 Pipe
Outer Diameter	Round Pipe	4mm-200mm
	Square Pipe	10*10mm-100*100mm
	Rectangular Pipe	10*20mm-50*100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling



Chemical Composition

C	Si	P	S	Cr	Mn	Fe	Co	Ni	Mo
0.02 max	0.1 max	0.04 max	0.03 max	1.0 max	1.0 max	2.0 max	1.0 max	Remainder	26.0 - 30.0



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
110	51	40



Physical Performance

	Units	Temperature in°C
Density	9.22 g/cm³	22°C
Specific Heat	0.089 Kcal/kg.C	Room
Melting Range	1370-1418°C	-
Modulus of Elasticity	217 KN/mm²	Room
Electrical Resistivity	137 µΩ.cm	0 °
Coefficient of Expansion	10.3 µm/m °C	20-93°
Thermal Conductivity	11.1 w/m-° K	0°



Scope of Application

B- 2 is used in chemical processes, vacuum furnaces, mechanical parts in reduced pressure environments, etc.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
