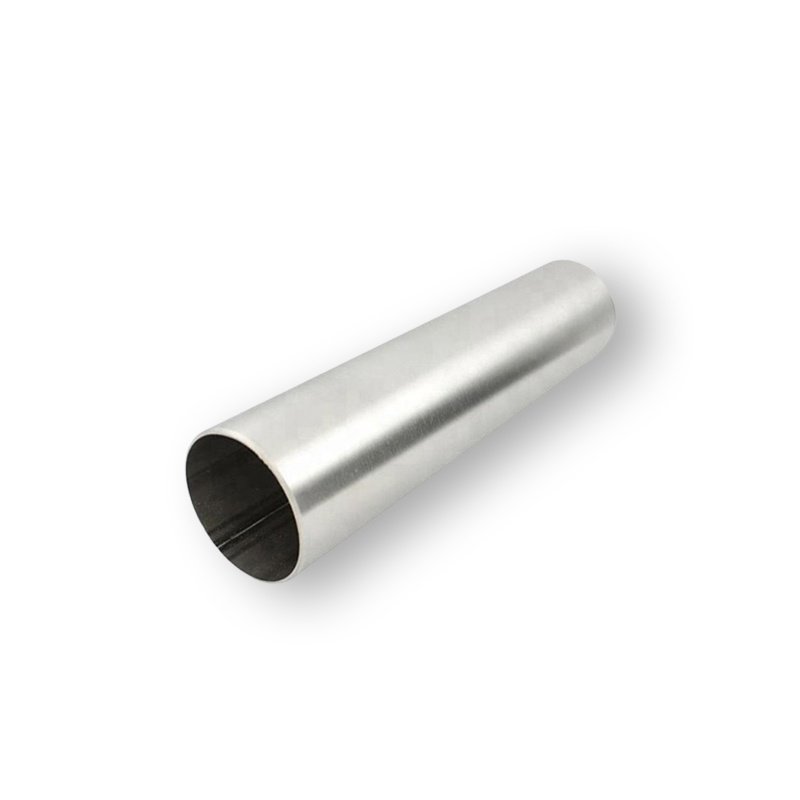

Hastelloy C-22 Pipe

The main elements of Hastelloy C22 pipe include cobalt, chromium, tungsten, molybdenum and small amounts of aluminum, titanium and nitrogen. Cobalt element improves the strength and hardness of the alloy, chromium element has an important impact on the corrosion resistance of the alloy, tungsten and molybdenum can increase the high-temperature strength of the alloy. Moreover, the addition of aluminum and titanium elements can refine the grains and improve the toughness of the alloy, while the addition of nitrogen can improve the strength and corrosion resistance of the alloy. Besides, it has good plasticity and toughness and can work with both cold and hot processing. Hastelloy C22 pipe also features excellent oxidation resistance and creep resistance at high temperatures. Hastelloy C22 pipes are commonly used in aerospace, chemical industry, petroleum and other fields because of its excellent corrosion resistance and high temperature strength.



Product Parameters

Product Name		Hastelloy C-22 Pipe
Outer Diameter	Round Pipe	4mm-200mm
	Square Pipe	10*10mm-100*100mm
	Rectangular Pipe	10*20mm-50*100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling



Chemical Composition

C	Si	P	S	V	Cr	Mn	Fe	Co	Ni	Mo	W
0.015 max	0.08 max	0.02 max	0.02 max	0.35 max	20.0 - 22.5	0.50 max	2.0-6.0	2.5 max	Remainder	12.5 - 14.5	2.5 - 3.5



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
100	45	45



Physical Performance

	Units	Temperature in°C
Density	8.69 g/cm³	24°C
Specific Heat	0.093 Kcal/kg.C	52°
Melting Range	1357-1399°C	-
Modulus of Elasticity	205.5 KN/mm²	-
Electrical Resistivity	113.7 µΩ.cm	24 °
Coefficient of Expansion	12.4 µm/m °C	24-93°
Thermal Conductivity	10.1 w/m-° K	48°



Scope of Application

C- 276 alloy is used in pesticide production, phosphoric acid production, pickling system, plate heat exchanger, selective leaching system, SO2 cooling tower, sulfonation system, shell and tube heat exchanger, surfacing welding valve, etc.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
