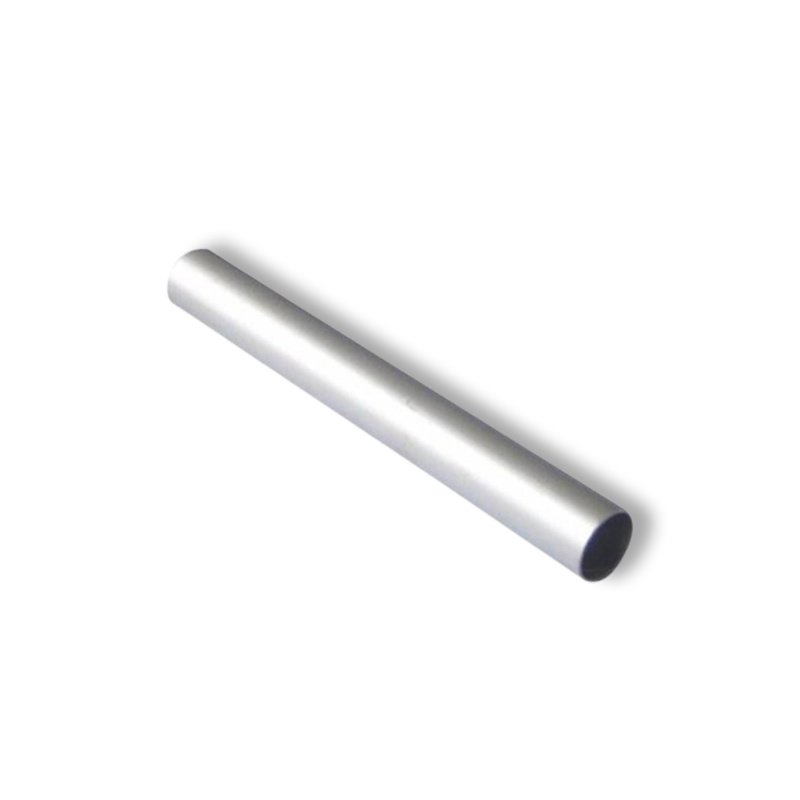

Hastelloy C-276 Pipe

Hastelloy C276 is a nickel-based alloy that has excellent corrosion resistance and high temperature strength. Due to the unique composition and specially processed processing technology, Hastelloy C276 pipe can maintain stable performance in various harsh environments. Its high corrosion resistance makes it widely used in the marine, chemical and petroleum industries. In high-temperature environments, the strength and ductility of Hastelloy C276 can maintain a high level, which allows it to maintain stable performance in high-temperature environments. In addition, the welding performance of Hastelloy C276 pipe is also very good and it can be connected through various welding processes. Because of the particularity of its composition and processing technology, the processing of Hastelloy C276 pipe requires special equipment and technology.



Product Parameters

Product Name		Hastelloy C-276 Pipe
Outer Diameter	Round Pipe	4mm-200mm
	Square Pipe	10*10mm-100*100mm
	Rectangular Pipe	10*20mm-50*100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling



Chemical Composition

C	P	Si	S	V	Cr	Mn	Fe	Co	Ni	Mo	W
0.01 max	0.08 max	0.04 max	0.03 max	0.35 max	14.5 - 16.5	1.0 max	4.0 - 7.0	2.5 max	Remainder	15.0 - 17.0	3.0 - 4.5



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
100	41	40



Physical Performance

	Units	Temperature in°C
Density	8.69 g/cm³	22°
Specific Heat	0.102 Kcal/kg.C	Room
Melting Range	1323-1371°C	-
Modulus of Elasticity	205 KN/mm²	Room
Electrical Resistivity	129.5 µΩ.cm	24°
Coefficient of Expansion	11.2 µm/m °C	24-93°
Thermal Conductivity	10.2 w/m-° K	38°



Scope of Application

C- 276 alloys are mostly used as part of the most severe situations, for example, chemical processing, pollution control, pulp and paper production; industrial and municipal waste treatment and acid natural gas recovery.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
