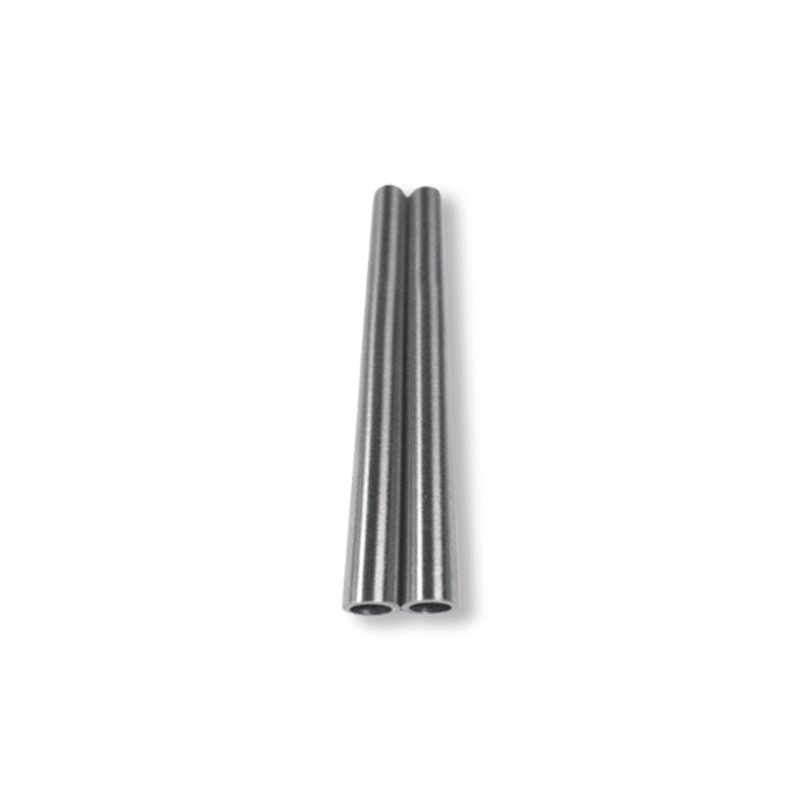

Inconel 718 Pipe

Inconel 718 is known for being a high-strength, high-temperature, corrosion-resistant nickel-based alloy whose chemical composition includes elements such as nickel, chromium, molybdenum, iron, cobalt, aluminum, titanium, zirconium, carbon, and manganese. Inconel 718 pipe has a melting point of 1430°C and displays effective heat and temperature resistance. It also works well at low temperatures. This nickel superalloy has the inherent ability to create a strong and stable oxide layer when heated. In addition, the layer makes this Inconel variant significantly resistant to oxidation, thus protecting it from corrosion. Inconel 718 pipe can be manufactured through a variety of processing methods, such as forging, hot rolling, cold drawing and welding. One thing to keep in mind is it is prone to oxidation and hardening at high temperatures, and appropriate preheating and post-processing measures are necessary to reduce this phenomenon.



Product Parameters

Product Name		Inconel 718 Pipe
Outer Diameter	Round Pipe	4mm-200mm
	Square Pipe	10*10mm-100*100mm
	Rectangular Pipe	10*20mm-50*100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling



Chemical Composition

B

C

Al

Si

P

S

Ti

Cr

Mn

Fe

Co

Ni

Cu

Mo

Cb (Nb Ta)

0.006 max

0.08 max

0.20-0.80

0.35 max

0.015 max

0.015 max

0.65-1.15

17.00-21.00

0.35 max

Remainder

1.0 max

50.00 - 55.00

0.30 max

2.80 - 3.30

4.75 - 5.50



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
180	150	12



Physical Performance

	Units	Temperature in°C
Density	8.19 g/cm³	Room
Specific Heat	0.104 Kcal/kg.C	21°
Melting Range	1260-1366°C	-
Modulus of Elasticity	199.9 KN/mm²	21°
Electrical Resistivity	125 µΩ.cm	Room
Coefficient of Expansion	13.0 µm/m °C	20 - 100°
Thermal Conductivity	11.1 w/m-° K	21°



Scope of Application

This nickel steel alloy can be manufactured rapidly and can be welded in an annealed or precipitation (age) hardened condition. This superalloy is used as part of various commercial enterprises, such as aerospace, marine engineering, chemical processing, pollution control equipment and nuclear reactors.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
