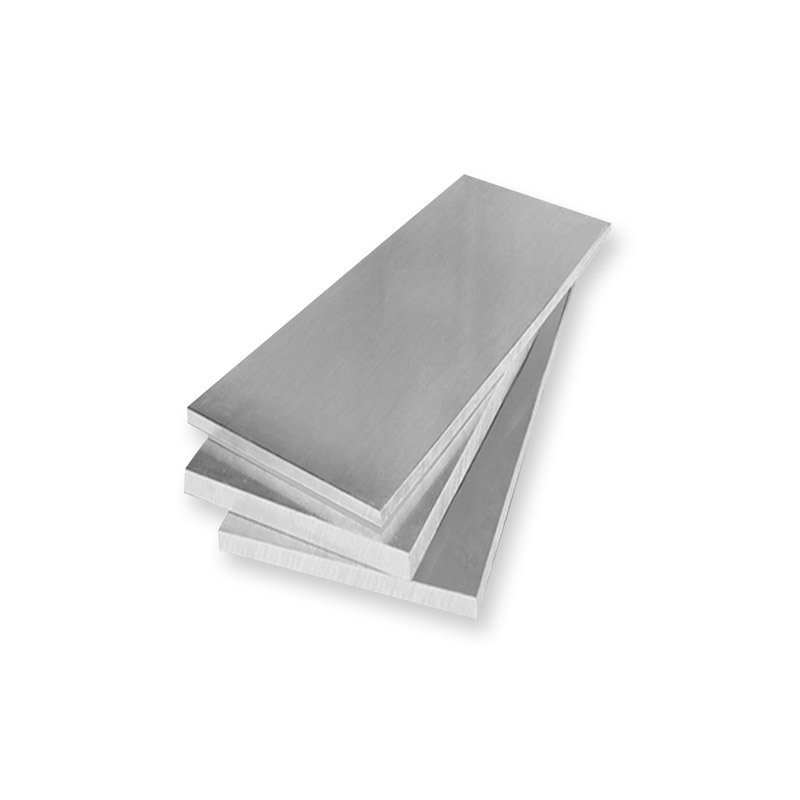

Inconel 600 Plate

Inconel 600 alloy is mainly composed of nickel and chromium, with a nickel content of approximately 72% and a chromium content of approximately 14%-17%. In addition, the alloy contains a smaller proportion of iron, as well as trace amounts of silicon, carbon and manganese. This unique chemical composition gives Inconel 600 plate excellent corrosion resistance and mechanical strength at high temperatures. Inconel 600 alloy exhibits excellent mechanical properties over a wide temperature range and is capable of use at temperatures up to 1093°C (2000°F) while maintaining good creep and fracture resistance. Its corrosion resistance is particularly outstanding and it can resist a variety of corrosive media, including seawater, organic acids, and high-temperature and high-pressure steam environments.



Product Parameters

Product Name	Inconel 600 Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Certificate	ISO, SGS, BV
Production Technology	Hot Rolling, Cold Rolling



Chemical Composition

C	Si	S	Cr	Mn	Fe	Ni	Cu
0.15 max	0.5 max	0.015 max	14.0 - 17.0	1.0 max	6.0 - 10.0	72.0 min	0.5 max



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
110	85	10



Physical Performance

	Units	Temperature in°C
Density	8.47 g/cm³	Room
Specific Heat	0.106 Kcal/kg.C	22°
Melting Range	1354-1413°C	-
Modulus of Elasticity	214 KN/mm²	22°
Electrical Resistivity	103 µΩ.cm	Room
Coefficient of Expansion	13.3 µm/m °C	20 - 100°
Thermal Conductivity	14.9 w/m-° K	20°



Scope of Application

The average utilization of this nickel alloy includes the chemical, pulp and paper, aerospace, nuclear engineering and heat treatment industries.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
