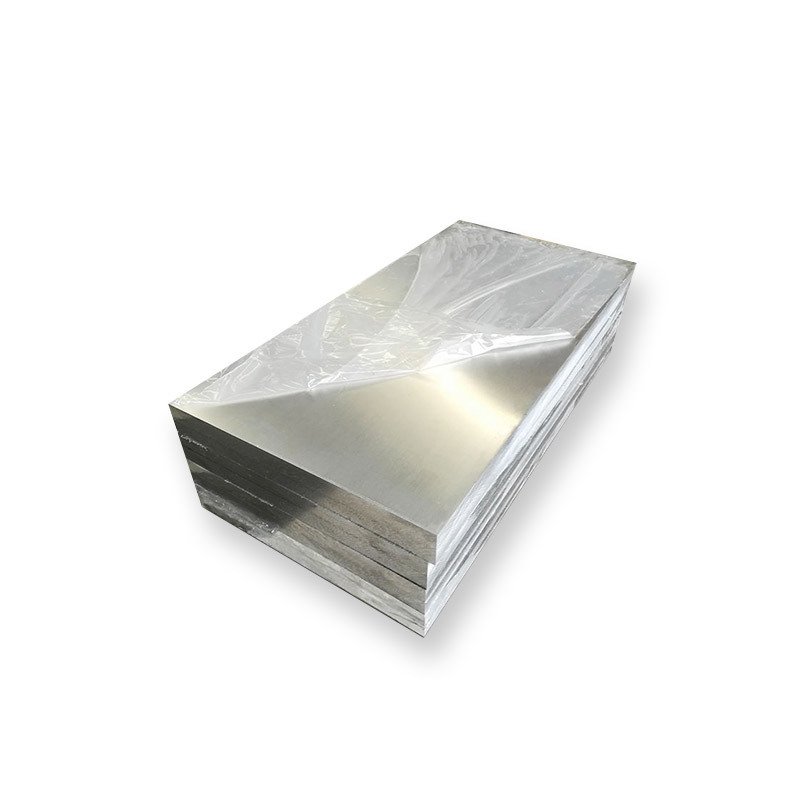

Inconel 601 Plate

Inconel 601 is a nickel-based high-temperature alloy whose main components are nickel, chromium, aluminum and iron. Among them, nickel accounts for the majority, with a content generally above 58%, while chromium and aluminum account for about 19% and 1.0% respectively. In addition, it also contains small amounts of elements such as copper and manganese, which can enhance the strength and corrosion resistance of the material. Inconel 601 plate has excellent high temperature strength, corrosion resistance and oxidation resistance. At high temperatures, its strength and hardness can be maintained at a high level, while having good plasticity and toughness. In an acidic environment, Inconel 601 plate exhibits good corrosion resistance and can effectively resist erosion by corrosive media such as chloride ions and sulfides.



Product Parameters

Product Name	Inconel 601 Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Certificate	ISO, SGS, BV
Production Technology	Hot Rolling, Cold Rolling



Chemical Composition

C	Al	Si	S	Cr	Mn	Fe	Ni	Cu
0.1 max	1.0-1.7	0.5 max	0.015 max	21.0-25.0	1.0 max	Remainder	58.0-63.0	1.0 max



Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
80	30	30



Physical Performance

	Units	Temperature in°C
Density	8.11 g/cm³	Room
Specific Heat	0.107 Kcal/kg.C	20°
Melting Range	1360-1411°C	-
Modulus of Elasticity	206.5 KN/mm²	20°
Electrical Resistivity	118 µΩ.cm	20°
Coefficient of Expansion	13.75 µm/m °C	20 - 100°
Thermal Conductivity	11.2 w/m-° K	20°



Scope of Application

The 601 characteristics of Inconel make it widely used in the fields of heat treatment, chemical treatment, pollution control, aerospace and power generation. Therefore, it is not recommended to use the alloy 601 in a strongly reduced sulfur-containing environment.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
