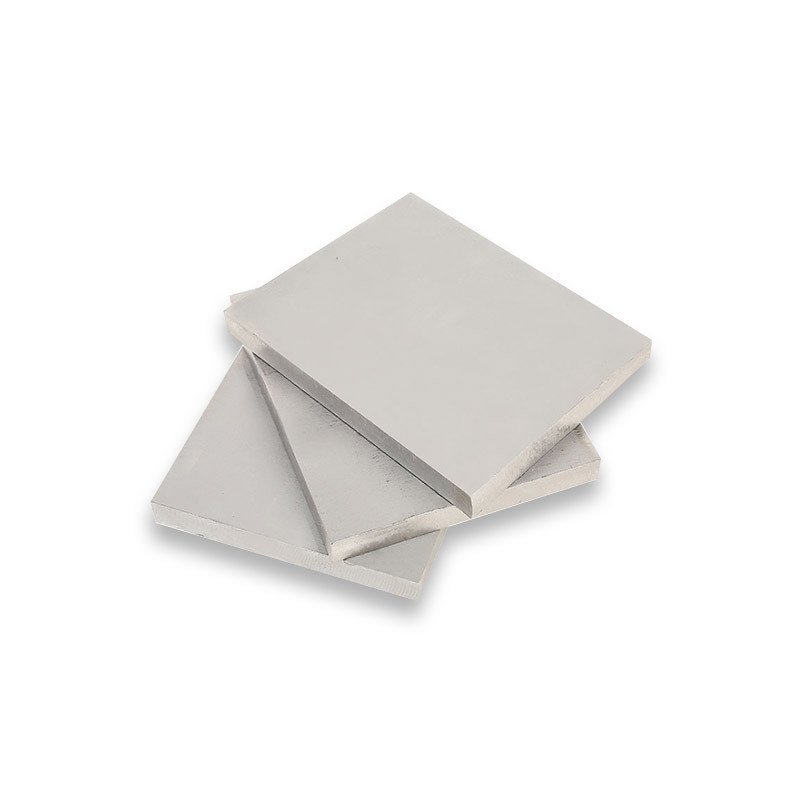

Titanium Alloy Grade 5 Ti 6Al-4V Plate

Grade 5 titanium is the most commonly used alloy and it is an alpha+beta alloy. Grade 5 titanium alloys account for 50% of total titanium usage worldwide. Typically, Ti-6Al-4V is used for applications below 400°C. It is significantly stronger than "commercially pure" titanium (grades 1-4) due to its heat treatment possibility. This grade offers an excellent combination of strength, corrosion resistance, weldability and workability, making it the first choice for many applications. Alpha alloys contain elements such as aluminum and tin and are preferred for high-temperature applications because of their superior creep characteristics. These α-stable elements either suppress changes in the phase transition temperature or increase the phase transition temperature. Beta alloys contain transition elements such as vanadium, niobium and molybdenum, which tend to lower the alpha to beta phase transition temperature. Beta alloy has excellent hardenability and responds quickly to heat treatment. These materials are highly forgeable and have high fracture toughness.



Product Parameters

Product Name	Titanium Alloy Grade 5 Ti 6Al-4V Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Certificate	ISO, SGS, BV
Production Technology	Hot Rolling, Cold Rolling



Chemical Composition & Mechanical Properties

STM/ASME		GB	JIS	Element Content（wt%）						Mechanical Properties
				N,max	C,max	H,max	Fe,max	O,max	Others	Strength Of Extension	Ductility
										Mpa,min	%，min
Pure Titanium	Gr.1	TA1	Class1	0.03	0.08	0.015	0.2	0.18	-	240	24
	Gr.2	TA2	Class2	0.03	0.08	0.015	0.3	0.25		345	20
	Gr.3	TA3	Class3	0.05	0.08	0.015	0.3	0.35		450	18
	Gr.4	TA4	Class4	0.05	0.08	0.015	0.5	0.4		550	15
Titanium Alloy	Gr.5	TC4	Class60	0.05	0.08	0.015	0.4	0.2	AI:5.5-6.75	895	10
		Ti-6A1-4V							V:3.5-4.5
	Gr.7	TA9	Class12	0.03	0.08	0.015	0.3	0.25	Pd:0.12-0.25	345	20
	Gr.9	TC2	Class61	0.03	0.08	0.015	0.25	0.15	AI:2.5-3.5	620	15
									V:2.0-3.0
	Gr.11	TA9-1	Class11	0.03	0.08	0.015	0.2	0.18	Pd:0.12-0.25	240	24
	Gr.23	TC4 ELI	Class60E	0.03	0.08	0.0125	0.25	0.13	AI:5.5-6.5	828	10
									V:3.5-4.5



Scope of Application

Used in aircraft turbines, engine components, aircraft structural components, aerospace fasteners, high-performance automation parts, marine applications, sports equipment, etc.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
