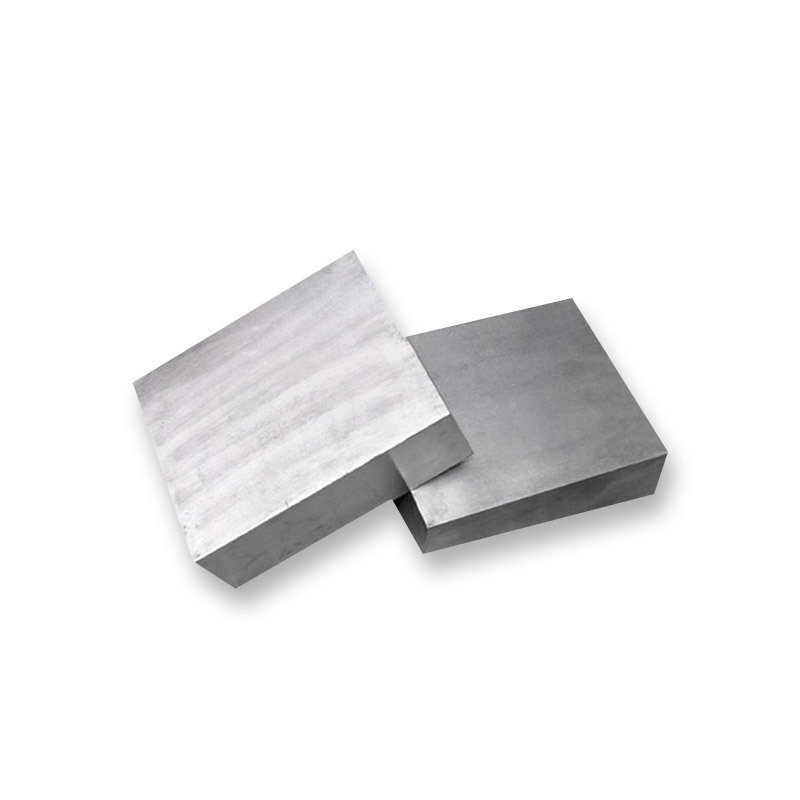

Titanium Grade 2 Plate

Grade 2 titanium is industrial pure titanium. The strength is not high, but the plasticity is good, It is easy to process and form. Stamping, welding, machinable processing performance is good.  Grade 2 titanium has good corrosion resistance in the atmosphere, sea water, wet chlorine and oxidation, neutral, weak reducing medium. It has better oxidation resistance than most austenitic stainless steel, but weaker heat resistance. Titanium alloy usually operates in humid atmosphere and seawater media, it is particularly resistant to pitting corrosion, acid corrosion, and stress corrosion. Moreover, it is resistant to alkali, chloride, chlorine-based organic substances, nitric acid, and sulfuric acid. etc. However, titanium has poor corrosion resistance to media with reducing oxygen and chromium salts.



Product Parameters

Product Name	Titanium Grade 2 Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Certificate	ISO, SGS, BV
Production Technology	Hot Rolling, Cold Rolling



Chemical Composition & Mechanical Properties

STM/ASME		GB	JIS	Element Content（wt%）						Mechanical Properties
				N,max	C,max	H,max	Fe,max	O,max	Others	Strength Of Extension	Ductility
										Mpa,min	%，min
Pure Titanium	Gr.1	TA1	Class1	0.03	0.08	0.015	0.2	0.18	-	240	24
	Gr.2	TA2	Class2	0.03	0.08	0.015	0.3	0.25		345	20
	Gr.3	TA3	Class3	0.05	0.08	0.015	0.3	0.35		450	18
	Gr.4	TA4	Class4	0.05	0.08	0.015	0.5	0.4		550	15
Titanium Alloy	Gr.5	TC4	Class60	0.05	0.08	0.015	0.4	0.2	AI:5.5-6.75	895	10
		Ti-6A1-4V							V:3.5-4.5
	Gr.7	TA9	Class12	0.03	0.08	0.015	0.3	0.25	Pd:0.12-0.25	345	20
	Gr.9	TC2	Class61	0.03	0.08	0.015	0.25	0.15	AI:2.5-3.5	620	15
									V:2.0-3.0
	Gr.11	TA9-1	Class11	0.03	0.08	0.015	0.2	0.18	Pd:0.12-0.25	240	24
	Gr.23	TC4 ELI	Class60E	0.03	0.08	0.0125	0.25	0.13	AI:5.5-6.5	828	10
									V:3.5-4.5



Scope of Application

Used in fuselage and aircraft engine parts, marine chemical parts, condenser pipes, heat exchangers.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
