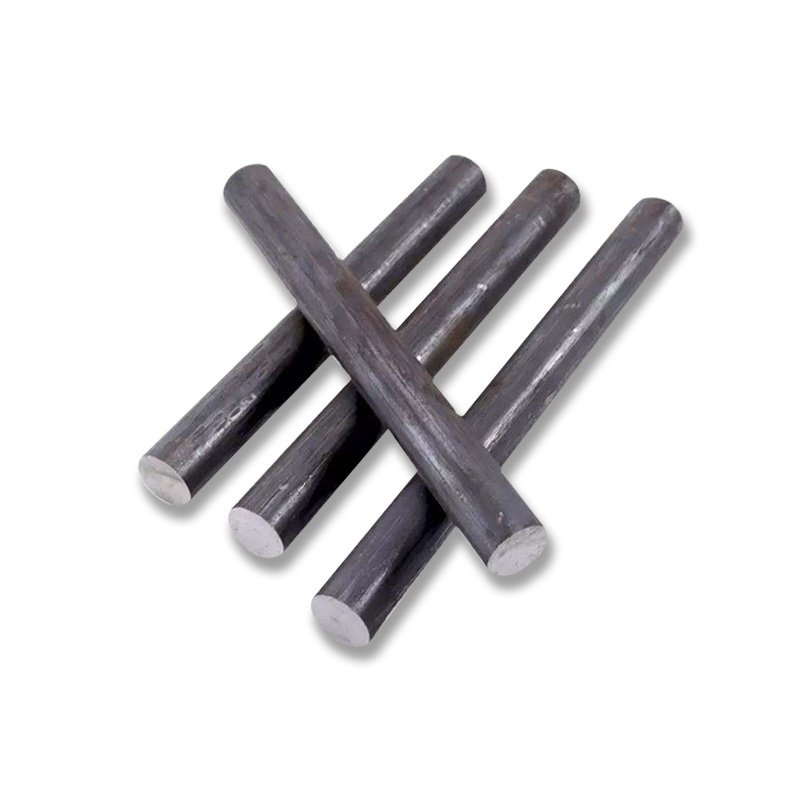

A572/S355JR Round Steel Bar

A572 steel bar is made of a low-carbon, low-alloy high-strength steel employing the electric furnace steelmaking technology. So the main component is scrap iron. Resulting from its reasonable composition design and strict process control, A572 steel bar is widely favored for high purity and excellent performance. Its molten steel pouring manufacturing method not only gives the steel coil good density and uniformity, but also ensures that the steel bar has superior mechanical properties after cooling. A572 carbon steel bar is widely used in construction, bridges, heavy machinery and other fields. At the same time, it shows outstanding performance in welding, forming and corrosion resistance with its low carbon and low alloy characteristics.

Product Parameters

Product Name	A572/S355JR Round Steel Bar
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
Common Round Bar Specifications	3.0-50.8 mm, Over 50.8-300mm
Flat Steel Common Specifications	6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
Hexagon Bar Common Specifications	AF5.8mm-17mm
Square Bar Common Specifications	AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm
Length	1-6meters, Size Accept Custom
Diameter(mm)	Hot Rolling Round Bar	25-600	Cold Rolling Square Bar	6-50.8
	Hot Rolling Square Bar	21-54	Cold Rolling Hexagon Bar	9.5-65
	Cold Rolling Round bar	6-101.6	Forged Rebar	200-1000
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.



Chemical Composition

A572	C	Mn	P	S	Si
Grade 42	0.21	1.35	0.03	0.03	0.15-0.4
Grade 50	0.23	1.35	0.03	0.03	0.15-0.4
Grade 60	0.26	1.35	0.03	0.03	0.40
Grade 65	0.23-0.26	1.35-1.65	0.03	0.03	0.40



Mechanical Properties

A572	Yield Strength (Ksi)	Tensile Strength (Ksi)	Elongation % 8 inches
Grade 42	42	60	20
Grade 50	50	65	18
Grade 60	60	75	16
Grade 65	65	80	15



Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³



Scope of Application

ASTM A572 carbon steel low-alloy steel is widely used as bridge panels, support plates, mechanical mounting plates, etc. for construction equipment, transmission towers, racks and other equipment.



Equivalent Material

EU	German Standard	Japanese Standard	French Standard	British Standard	Canada	Italy	Spain	National Standard	International	Portugal	India
EN	DIN,WNr	JIS	AFNOR	BS	HG	UNI	UNE	GB	ISO	NP	IS
S355JR	St52-3	SM490A	E36-2	50B	350W	Fe510B	AE355B	Q345B	E355C	FE510-B	IS961

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
