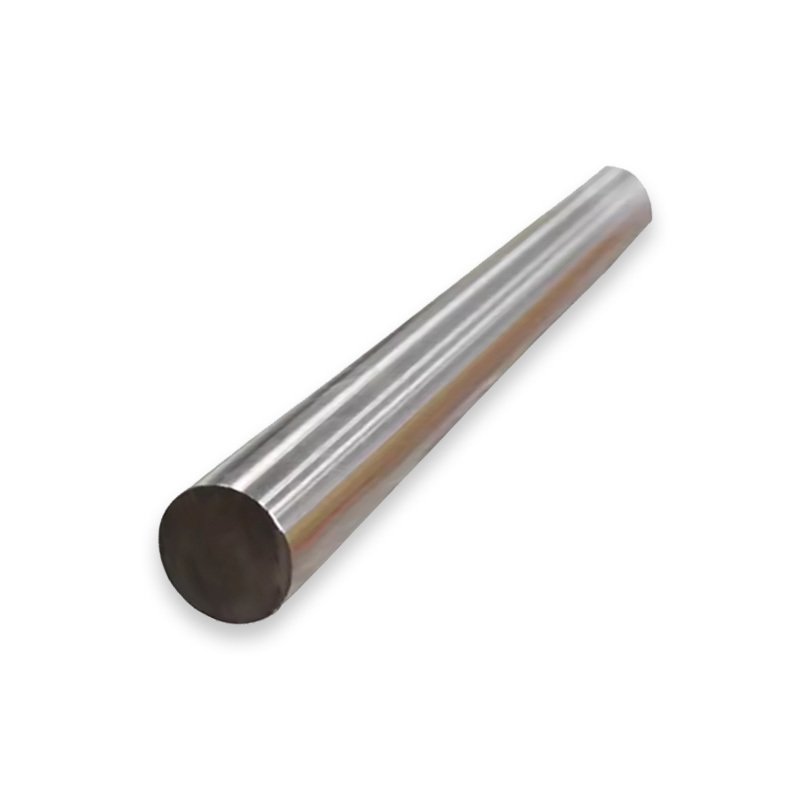

Bright Steel Bar

Bright bars are raw materials that are created from stainless steel alloys through a cold drawing technique in a cold reduction mill. They have a geometrically precise molecular structure with an extremely smooth surface finish which always appears bright, giving it the name ‘Bright Bar’. It mainly comprises stainless steel with varying addition of carbon and traces of other elements like chromium, manganese, iron, etc. Bright bars are widely utilized by almost all industries due to their strength, durability and most importantly, their corrosion-resistant properties. They have excellent weldability and machinability, which makes them highly favorable for precision machining components and constructing large, sturdy structures.

Product Parameters

Product Name	Bright Steel Bar
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
Common Round Bar Specifications	3.0-50.8 mm, Over 50.8-300mm
Flat Steel Common Specifications	6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
Hexagon Bar Common Specifications	AF5.8mm-17mm
Square Bar Common Specifications	AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm
Length	1-6meters, Size Accept Custom
Diameter(mm)	Hot Rolling Round Bar	25-600	Cold Rolling Square Bar	6-50.8
	Hot Rolling Square Bar	21-54	Cold Rolling Hexagon Bar	9.5-65
	Cold Rolling Round bar	6-101.6	Forged Rebar	200-1000
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.



What are the types of bright bars?

Bright Round Bars:
A bright round bar is designed through extensive heat treatment to provide extreme hardness. Its properties can be easily enhanced by adding other elements to the alloy.
The most commonly used round bar grades include 201, 202, 304, 309, 316, 316L, 316Ti, 321 and the 400 series.
Bright Rectangular Bars:
Rectangular bars are highly resistant to heat and external impacts, which makes them highly preferable for manufacturing small machining components.
Stainless steel rectangular bars are heat-treated, cold drawn, annealed and tempered before they are formed for machining.
A typical stainless steel rectangular bar ranges from 12mm-50mm in diameter.
Bright Hex Bars:
The hexagonal shape of hex bars is primarily meant for manufacturing small fasteners and threaded components such as nuts, valves, hose ends, fasteners, hex bolts, etc.
Hex bars are extensively used in all fastening applications due to their reliable strength and durability. They are also available in both 300 and 400 series grades.



The bright bar manufacturing process

Bright Bars are produced by using the process of cold drawing, centerless grinding, peeling, shaving, turning, or a combination of these processes. As a result, it has better dimensional accuracy, smooth surface, straightness and is usually free from surface defects.
Raw Material
The raw material is made into a hot-rolled steel bar. Because the high temperatures extrude the hot-rolled products, they generally acquire a rough and scaled surface property and may show the difference in shape and size.
Drawing
The material is brought to room temperature during this process. One end of the bars goes to the gripping device of the drawing machine. The drawing machine pulls the bar through the die. The die cause reduction in the diameter of the original bar, which eventually increases the length of the bars.
Finished Product
The bright bar’s finished product creates a perfect polished finish. This process increases mechanical properties, helps improve machining characteristics, and presents precise & uniform diameter tolerances.



Scope of Application

Bright bars are a prime component for manufacturing in various industries such as:
● Engineering and construction to provide prompt stability, strength and durability to giant structures.
● In the automobile industry for designing frames and chassis
● For designing railings, trellis and fences in societies and public places
● For manufacturing of machine components in various shapes and sizes
● For making micro-size to mega-size fastener products for all industrial and non-industrial applications.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
