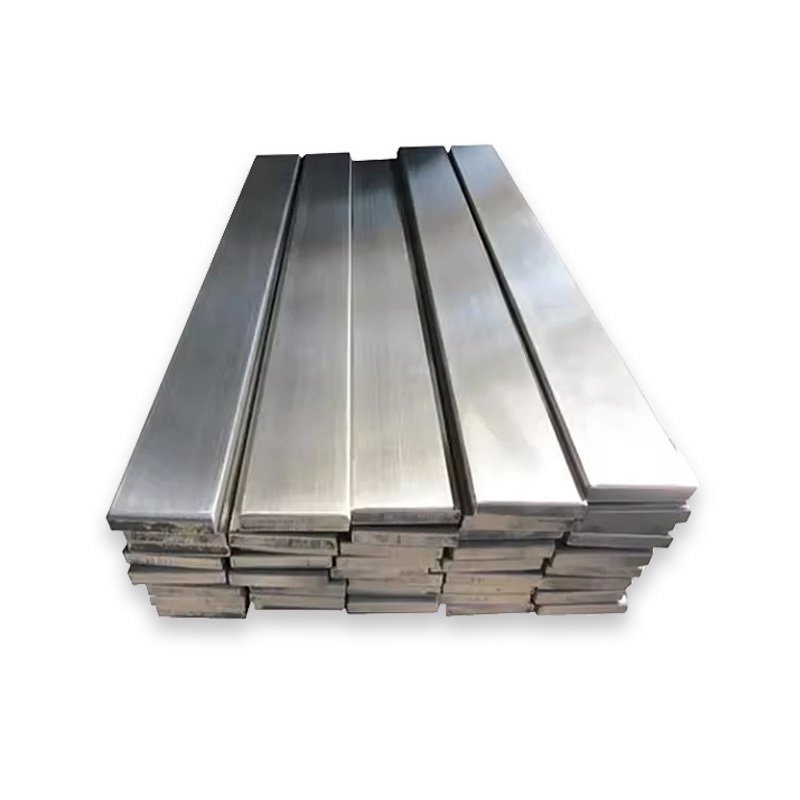

Steel Flat Bar

PRODUCTS DESCRIPTION

Flat bars are a flat, rectangular section with square edges varying in sizes. This cost-effective steel product is suitable for a wide variety of applications and is distributed into the construction, engineering, manufacturing, mining, grating, fabrication and many other industries. The flat bar's versatility is the main reason it is usable throughout various industries, along with the excellent strength and formability combination of steel.

Product Parameters

Product Name	Steel Flat Bar
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
Flat Steel Common Specifications	6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
Length	1-6meters, Size Accept Custom
Diameter(mm)	Hot Rolling Round Bar	25-600	Cold Rolling Square Bar	6-50.8
	Hot Rolling Square Bar	21-54	Cold Rolling Hexagon Bar	9.5-65
	Cold Rolling Round bar	6-101.6	Forged Rebar	200-1000
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Flat Bars (Dimensions and Properties)

Thickness	Mass in kg/m for widths in mm
mm	20	25	30	40	45	50	60	65	70	80	90
5	0.785	0.981	1.18	1.57	1.77	1.96	-	-	-	-	-
6	0.942	1.18	1.41	1.88	2.12	2.36	2.83	3.06	3.30	3.77	4.24
8	1.26	1.57	1.88	2.51	-	3.14	3.77	4.08	4.40	5.02	5.65
10	1.57	1.96	2.36	3.14	-	3.93	4.71	5.10	5.50	6.28	7.07
12	-	2.36	2.83	3.77	4.24	4.71	5.65	6.12	6.59	7.54	8.48
16	-	-	-	5.02	-	6.28	7.54	8.16	8.79	10.0	11.3
20	-	-	-	6.28	-	7.85	9.42	10.2	11.0	12.6	14.1
25	-	-	-	7.85	-	9.81	11.8	12.8	13.7	15.7	17.7
30	-	-	-	-	-	-	-	-	-	18.8	-
40	-	-	-	-	-	-	-	-	-	25.1	-

Thickness	Mass in kg/m for width in mm
mm	100	110	130	150	180	200	250	300
6	5.18	4.71	-	-	-	-	-	-
8	6.28	6.91	8.16	9.42	-	-	-	-
10	7.85	8.64	10.2	11.8	14.1	15.7	-	-
12	9.42	10.4	12.2	14.1	17.0	18.8	-	-
16	12.6	-	16.3	18.8	22.6	25.1	31.4	37.7
20	15.7	-	20.4	23.6	28.3	31.4	39.2	47.1
25	19.6	-	25.5	29.4	35.3	39.2	49.1	58.9
30	23.6	-	31.6	35.3	42.4	47.1	58.9	70.6
40	31.4	-	-	47.1	56.5	62.8	78.5	94.2
45	39.2	-	-	-	-	-	-	106
50	-	-	-	-	-	-	-	118

Scope of Application

Home appliances
Steel is used in hundreds of appliances in the home. Fridges, freezers, microwaves, extractor hoods and washing machines all use mild steel. The metal is given layers of coatings and its surface is treated to make the products safe, reliable and long-lasting. It also helps protect against wear and tear, and corrosion. Flat steel bars are also used in garage doors, latches and heaters, as well as many other elements of residential construction.
Building frames
Steel flat bars have a major role to play in frame construction. The parts can be pre-fabricated in the factory, while girders and angles can be bought ready-made, saving time spent building. Steel flat bars function in the same way as hollow steel sections or may be used in many different types of building installations together with hollow steel bars. Steel flat bars are so versatile that they can be made to take any shape and clad with any materials.
Structures within the energy industry
For decades, steel beams and bars have provided the infrastructure for everything from refineries to pressure valves, and are going to come into play more than ever before with renewable energy infrastructure too. They are also used as the foundation in water tower structures and as concrete-reinforcing bars for foundations in water gates, generators and turbines.

Ornamental/artistic pieces
Flat steel bars are so malleable and workable that they lend themselves to endless forms of art, decor and industrial art pieces. From sculptures to modern shelving units, well-chosen steel flat bars can be used in just about anything. Steel sections that go through additional manufacturing processes are given a smoother finish and outer layering, giving pieces of art a cleaner, sharper appearance as well as a more reflective surface. Stunning works of art can also be made from scrap steel bars.

FAQ

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

PACKING AND DELIVERY

PRODUCT TESTING

CLIENT FEEDBACK

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
