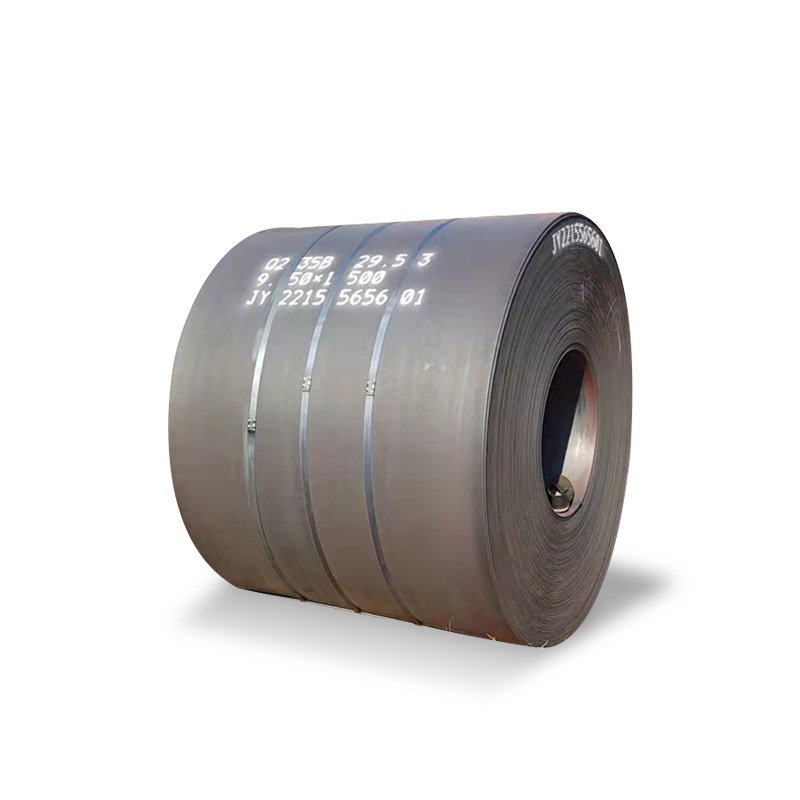

A285 Pressure Vessel Carbon Steel Coil

A285 pressure vessel steel coil consists of 3 grades: Grade A, Grade B, and Grade C. A285 coils have good welding performance and can meet the fusion welding requirements of pressure vessel equipment. ASTM A285 Boiler vessel steel coils are widely applied in petroleum, chemical, boiler and other industries, and is used in the production of reactors, heat exchangers, separators, spherical tanks, gas tanks, liquefied gas tanks, nuclear reactor pressure shells, boiler drums, liquefied petroleum gas cylinder plants, hydropower stations High-pressure water pipes, turbine casings and other equipment and components.

Product Parameters

Product Name	A285 Pressure Vessel Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



Chemical Composition

A285	C	Mn	P	S
Class A	0.17	0.98	0.025	0.025
Class B	0.22	0.98	0.025	0.025
Class C	0.28	0.98	0.025	0.025



Mechanical Properties

A285	Thickness mm	Yield Mpa	Tensile Strength Mpa	Elongation (%)
Class A	6-50	165	310-450	30 %
	50-200	165	310-450	27 %
Class B	6-50	185	345-485	28 %
	50-200	185	345-485	25 %
Class C	6-50	205	380-515	27 %
	50-200	205	380-515	23 %



Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³



Scope of Application

ASTM A285 boiler vessel plate is a medium and low strength carbon steel plate for pressure vessel. It is widely used in the manufacture of reactor, heat exchanger, separator, spherical tank, oil and gas tank, nuclear reactor pressure shell, high pressure water pipe, turbine shell and other equipment.



Equivalent Material

National Standard	American Standard	European Standard	German Standard	Japan Standard	France	United Kingdom	Italy	Australia	ISO	India
20	A285	P235GH (1.0345)	1.0345	SB410	A37AP	141-360	Fe 360-1KG	St35KW	P3	Grade 1
	A285 Gr.C		ASt35	SGV410	A37CP	161 Gr.360	Fe 360-1KW

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
