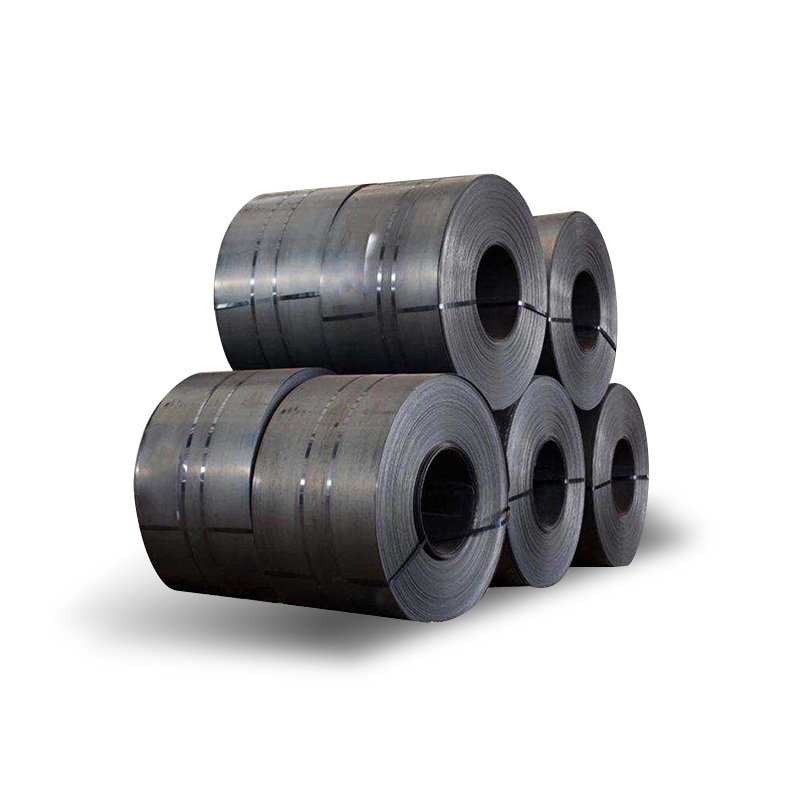

A387 Pressure Vessel Carbon Steel Coil

A387 pressure vessel steel coil covers the grades of grade 5, grade 9, grade 11, grade 12, grade 22, grade 91 and other grades in accordance with the alloy elements contained. Except for grades 21L, 22L, 91 and 911, each grade of ASTM A387 boiler vessel coil has two tensile strength categories according to its heat treatment: Class 1 and Class 2. A387 is a chromium-molybdenum alloy steel for pressure vessels. It has outstanding high-temperature strength, oxidation resistance and sulfide corrosion resistance. The working environment of this material is usually harsh, and the working medium can be reaction products such as hydrogen, hydrogen sulfide, wax oil, gasoline, diesel, and thermal synthesis gas, as well as raw oil.

Product Parameters

Product Name	A387 Pressure Vessel Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



Chemical Composition

A387	UNS	C	Mn	P	S	Si	Cr	Mo
Level 5	S50200	≤ 0.15	0.25-0.66	0.025	0.025	≤ 0.55	3.90-6.10	0.40-0.70
Level 9	K90941	≤ 0.15	0.25-0.66	0.025	0.025	≤ 1.05	7.90-10.10	0.85-1.15
Level 11	K11789	0.04-0.17	0.35-0.73	0.025	0.025	0.44-0.86	0.94-1.56	0.40-0.70
Level 12	K11757	0.04-0.17	0.35-0.73	0.025	0.025	0.13-0.45	0.74-1.21	0.40-0.65
Level 22	K21590	0.04-0.15	0.25-0.66	0.025	0.025	≤ 0.50	1.88-2.62	0.85-1.15
Class 22L	K21590	≤ 0.12	0.25-0.66	0.025	0.025	≤ 0.50	1.88-2.62	0.85-1.15
Class 91	K90901	0.06-0.15	0.25-0.66	0.025	0.012	0.18-0.56	7.90-9.60	0.80-1.10



Mechanical Properties

A387	Category	Tensile Strength Mpa	Yield Strength Mpa	Elongation Gauge Length 2in. [50mm] %
Level 5	Section Category 1	415-585	205	18
	Section Category 2	515-690	310	18
Level 9	Section Category 1	415-585	205	18
	Section Category 2	515-690	310	18
Level 11	Section Category 1	415-585	240	22
	Section Category 2	485-620	310	22
Level 12	Section Category 1	380-550	230	22
	Section Category 2	450-585	275	22
Level 22	Section Category 1	415-585	205	18
	Section Category 2	515-690	310	18



Physical Performance

Physical Performance	Metric	Imperial
Density	7.7-8.03 g/cm3	7.7-8.03 g/cm3



Scope of Application

The molybdenum composition in ASTM A387 boiler vessel plate can improve its tensile strength at high temperature, and make it have higher oxidation and corrosion resistance by increasing the lattice strain. ASTM A387 Boiler Container Plates are ideal for use in heat-resistant pressure vessels and sour gas environments.



Equivalent Material

American Standard ASTM	European Standard ASME	German Standard EN 10028	English standard DIN	Legal standard BS	Russian standard AFNOR 36206
A387 5	SA387 5	X12CrMo5	-	-	-
A387 9	SA387 9	-	-	-	-
A387 11	SA387 11	13CrMoSi5-5	-	621B	-
A387 12	SA387 12	13CrMo4-5	13CrMo44	620B	15CD2.05
A387 22	SA387 22	10/11CrMo9-10	10CrMo9-10	622-515B	12CD9-10
A387 91	SA387 91	10CrMoVNb9-1	-	--	-

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
