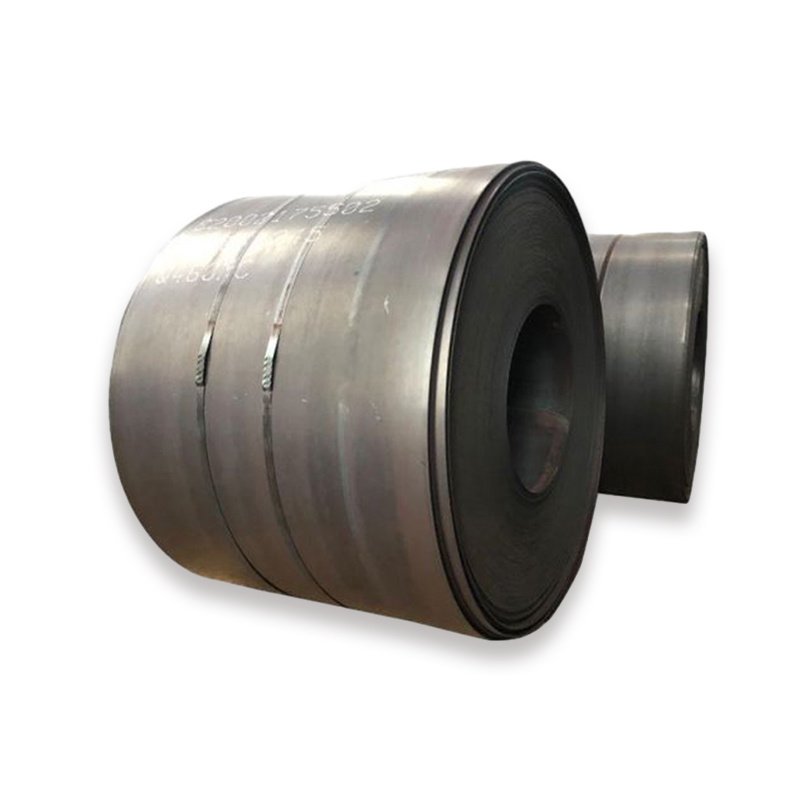

DC01/DC02/DC03/DC04 Cold Rolled Steel Coil

DC steel coils have high tensile strength and elongation, giving them good processing properties during the manufacturing process. This makes DC steel coil widely used in the manufacturing of automotive parts, home appliances, construction and other parts that require high strength and precision. DC steel coil has excellent weldability and machinability with its low carbon content. So it can be processed through various welding and cutting processes, such as arc welding, gas shielded welding, laser cutting, etc., to meet the needs of material processing performance in different fields. Lastly, it meets the requirements of environmental protection and sustainable development by releasing low carbon emission.

Product Parameters

Product Name	DC01/DC02/DC03/DC04 Cold Rolled Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



Chemical Composition

C: max. 0,08 %

Mn: max. 0,40 %

P: max. 0,03 %

S: max. 0,03 %



Mechanical Properties

Steel Grade	Yield Strength (MPa) min	Tensile Strength (MPa) min	Elongation % min	Old Description
DC01	≤ 280	270-410	28	St 12-03
DC03	≤ 240	270-370	34	St 13-03
DC04	≤ 210	270-350	38	St 14-03
DC05	≤ 180	270-330	40	St 15-03
DC06	≤ 170	270-330	41	-
DC07	≤ 150	250-310	44	-



Scope of Application

DC01 can be used for simple forming work, for example Bending, embossing, beading and pulling.

DC03 is suitable for forming requirements like Deep drawing and difficult profiles suitable.

DC04 is suitable for high deformation requirements.

DC05 is a thermal forming grade, it is suitable for higher forming requirements.

DC06 is a grade for special deep drawing, suitable for the higher deformation requirements.

DC07, this superior deep drawing quality is suitable for highest deformation requirements.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
