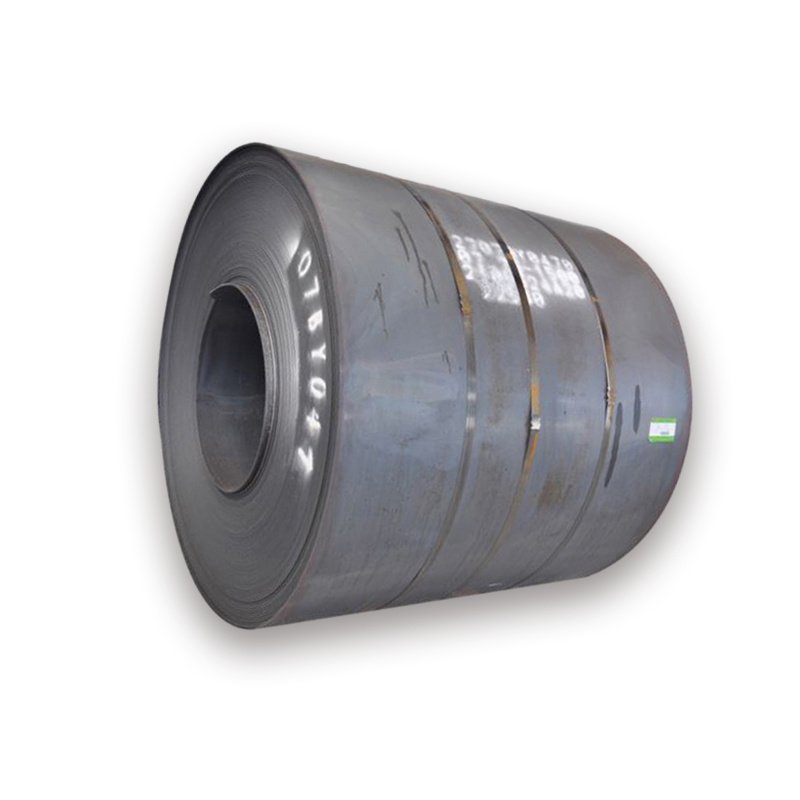

SPCC/SPCC/SPCD/SPCE Cold Rolled Steel Coil

SPCC steel coil comes with impressive properties, making it an ideal choice across various industries. A key advantage is its high tensile strength, giving it the capacity to deal with heavy loads and resist deformation. So SPCC steel coil is especially suitable for applications requiring superior durability and structural integrity. Another notable feature of SPCC steel coil is its excellent formability as the coil can be easily shaped and molded into different sizes and dimensions without compromising its structural integrity. This flexibility makes it suitable for manufacturing processes like stamping, bending and deep drawing. SPCC steel coils have a uniform appearance that adds a professional feel to finished products using this material. Additionally, this surface helps greatly in preventing corrosion, thus extending the life of the coils.

Product Parameters

Product Name	SPCC/SPCC/SPCD/SPCE Cold Rolled Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



Chemical Composition

SPCC Grade: C≦0.15; Mn≦0.60; P≦0.100; S≦0.035
SPCCT Grade: C≦0.15; Mn≦0.60; P≦0.100; S≦0.035
SPCD Grade: C≦0.10; Mn≦0.50; P≦0.040; S≦0.035
SPCE Grade: C≦0.08; Mn≦0.45; P≦0.030; S≦0.030
SPCF Grade: C≦0.06; Mn≦0.45; P≦0.030; S≦0.030
SPCG Grade: C≦0.02; Mn≦0.25; P≦0.020; S≦0.020



Mechanical Properties

Hardness: Heat Treatment Code HRBS HV10
Annealed A – –
Annealed + Finishing S – –
1/8 hard 8 50~71 95~130
1/4 hard 4 65~80 115~150
1/2 hard 2 74~89 135~185
Full hard 1 ≥85 ≥170



Scope of Application

SPCC/SPCCT: Common & General Use; Characteristics: Suitable for bending processing and simple deep drawing processing, is the most demand varieties; Applications: Refrigerators, rails, switchboards, iron baskets and so on.

SPCD: Drawing & Stamping Use; Characteristics: Second only to SPCE, is the quality of the smaller deviation of the drawing steel plate; Applications: Automobile chassis, roof and so on.

SPCE/SPCF: Deep Drawing & Stamping Use; Characteristics: Grain is adjusted, deep drawing performance is excellent, after the stamping can get a beautiful surface. Applications: Car fender, rear side panels and so on.

SPCG: Extra-Deep Drawing & Stamping & Punching Use; Characteristics: Very low carbon cold rolled steel, excellent deep drawing processability. Applications: Car interior board, surface and so on.

Remarks: SPCCT is users specified the grade of SPCC which need to ensure that the tensile strength and extensibility of the species. SPCF, SPCG will need to ensure that there have non-aging (not due to the occurrence of tensile deformation of the property), after outside factory for 6 months – that is, SPCC, SPCD, SPCE if stored for a long time, will produce mechanical performance changes, especially to reduce the cold stamping performance, it should be used as soon as possible.SPCC series catalog need to make provision for hardness and surface in advance when ordering.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
