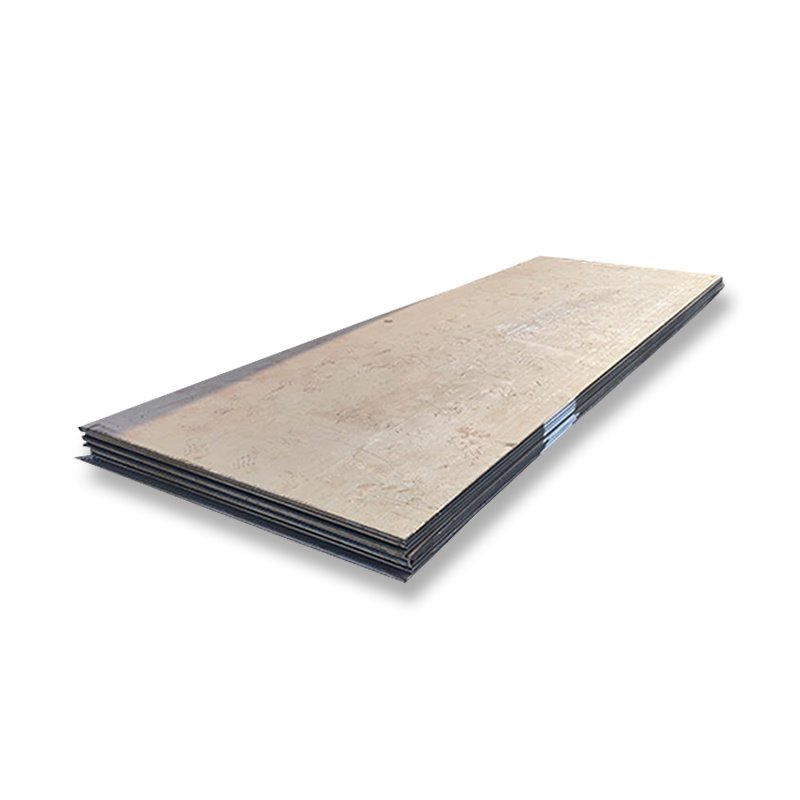

A572/S355JR Carbon Steel Plate

A572 is a low-carbon, low-alloy high-strength steel plate produced using electric furnace steelmaking technology. Its main component is scrap iron. Through reasonable composition design and strict process control, A572 steel plate has high purity and excellent performance. Molten steel pouring, as its main manufacturing method, not only gives the steel plate good density and uniformity, but also ensures that the steel plate has superior mechanical properties after cooling. Flat plate and rectangle are its main shape characteristics, which make it easy to undergo further processing. This kind of steel plate is widely used in construction, bridges, heavy machinery and other fields. At the same time, due to its low carbon and low alloy characteristics, it performs well in welding, forming and corrosion resistance.

Product Parameters

Product Name	A572/S355JR Carbon Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



Chemical Composition

A572	C	Mn	P	S	Si
Grade 42	0.21	1.35	0.03	0.03	0.15-0.4
Grade 50	0.23	1.35	0.03	0.03	0.15-0.4
Grade 60	0.26	1.35	0.03	0.03	0.40
Grade 65	0.23-0.26	1.35-1.65	0.03	0.03	0.40



Mechanical Properties

A572	Yield Strength (Ksi)	Tensile Strength (Ksi)	Elongation %8 inches
Grade 42	42	60	20
Grade 50	50	65	18
Grade 60	60	75	16
Grade 65	65	80	15



Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³



Scope of Application

ASTM A572 carbon steel low-alloy steel is widely used as bridge panels, support plates, mechanical mounting plates, etc. for construction equipment, transmission towers, racks and other equipment.



Equivalent Material

EU	German Standard	Japanese standard	French Standard	British Standard	Canada	Italy	Spain	National Standard	International	Portugal	India
EN	DIN, WNr	JIS	AFNOR	BS	HG	UNI	UNE	GB	ISO	NP	IS
S355JR	St52-3	SM490A	E36-2	50B	350W	Fe510B	AE355B	Q345B	E355C	FE510-B	IS961

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
