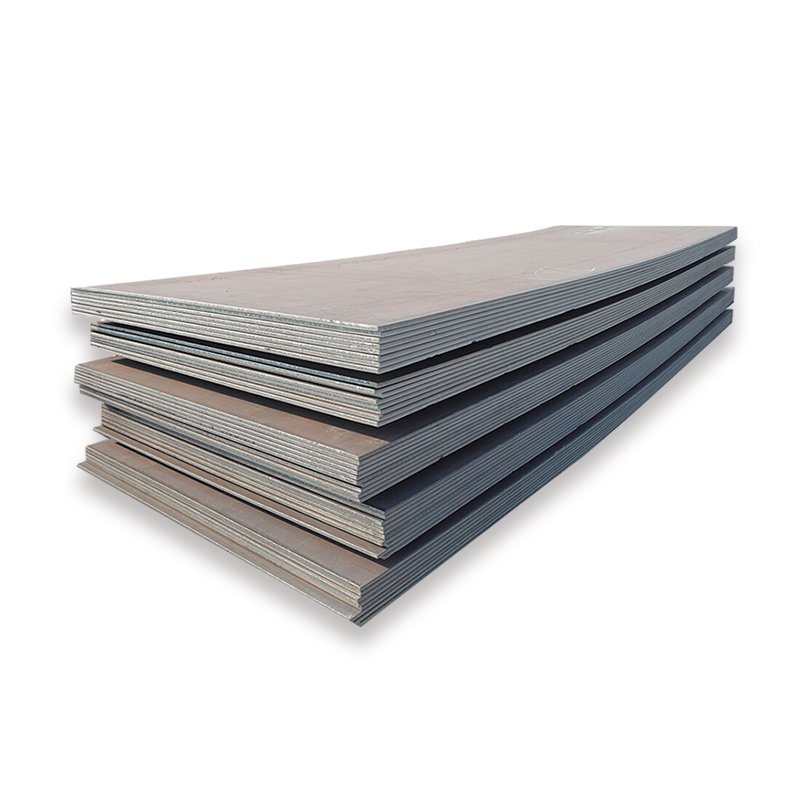

SPCC/SPCC/SPCD/SPCE Cold Rolled Steel Plate

SPCC steel is known for its impressive properties, making it a popular choice across various industries. One of its key properties is its high tensile strength, allowing it to withstand heavy loads and resist deformation. This makes SPCC steel ideal for applications where durability and structural integrity are critical. Another notable property of SPCC steel is its excellent formability. It can be easily shaped and molded into different sizes and dimensions without compromising its structural integrity. This flexibility makes it suitable for manufacturing processes such as stamping, bending and deep drawing. SPCC steel plates have a smooth surface finish that helps enhance its aesthetics. Its uniform appearance adds a professional feel to finished products made from this material. Additionally, this smooth surface helps prevent corrosion, extending the life of products made of SPCC steel.

Product Parameters

Product Name	SPCC/SPCC/SPCD/SPCE Cold Rolled Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



Chemical Composition

SPCC Grade: C≦0.15; Mn≦0.60; P≦0.100; S≦0.035
SPCCT Grade: C≦0.15; Mn≦0.60; P≦0.100; S≦0.035
SPCD Grade: C≦0.10; Mn≦0.50; P≦0.040; S≦0.035
SPCE Grade: C≦0.08; Mn≦0.45; P≦0.030; S≦0.030
SPCF Grade: C≦0.06; Mn≦0.45; P≦0.030; S≦0.030
SPCG Grade: C≦0.02; Mn≦0.25; P≦0.020; S≦0.020



Mechanical Properties

Hardness: Heat Treatment Code HRBS HV10
Annealed A – –
Annealed + Finishing S – –
1/8 hard 8 50~71 95~130
1/4 hard 4 65~80 115~150
1/2 hard 2 74~89 135~185
Full hard 1 ≥85 ≥170



Scope of Application

SPCC/SPCCT: Common & General Use; Characteristics: Suitable for bending processing and simple deep drawing processing, is the most demand varieties; Applications: Refrigerators, rails, switchboards, iron baskets and so on.

SPCD: Drawing & Stamping Use; Characteristics: Second only to SPCE, is the quality of the smaller deviation of the drawing steel plate; Applications: Automobile chassis, roof and so on.

SPCE/SPCF: Deep Drawing & Stamping Use; Characteristics: Grain is adjusted, deep drawing performance is excellent, after the stamping can get a beautiful surface. Applications: Car fender, rear side panels and so on.

SPCG: Extra-Deep Drawing & Stamping & Punching Use; Characteristics: Very low carbon cold rolled steel, excellent deep drawing processability. Applications: Car interior board, surface and so on.

Remarks: SPCCT is users specified the grade of SPCC which need to ensure that the tensile strength and extensibility of the species. SPCF, SPCG will need to ensure that there have non-aging (not due to the occurrence of tensile deformation of the property), after outside factory for 6 months – that is, SPCC, SPCD, SPCE if stored for a long time, will produce mechanical performance changes, especially to reduce the cold stamping performance, it should be used as soon as possible.SPCC series catalog need to make provision for hardness and surface in advance when ordering.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
