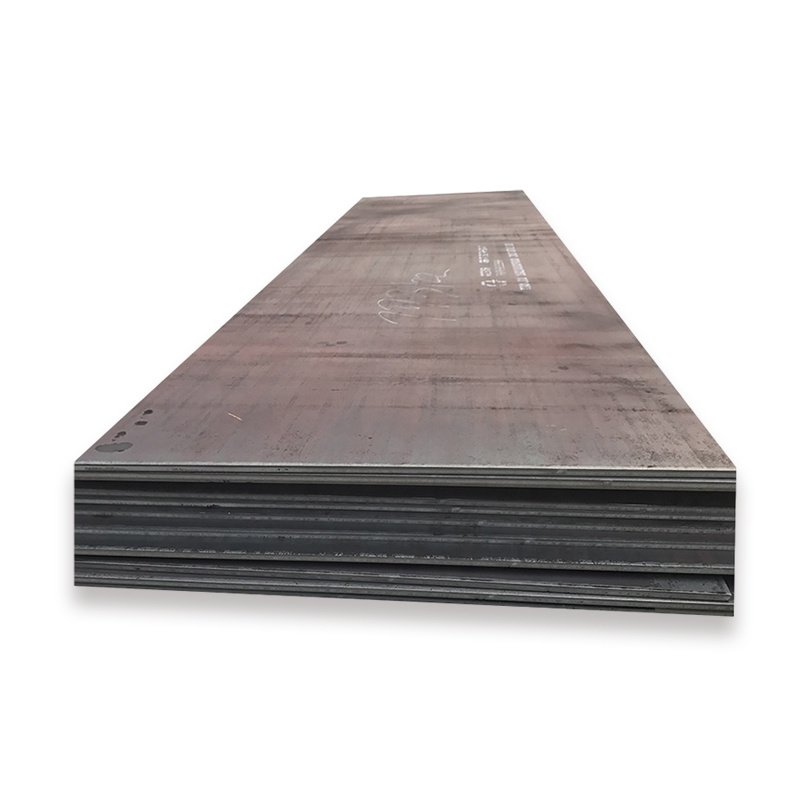

DC01/DC02/DC03/DC04 Cold Rolled Steel Plate

DC steel plates have high tensile strength and elongation, giving them good processing properties during the manufacturing process and is easy to bend, stamp, form and weld. This makes DC steel plates widely used in the manufacturing of automotive parts, home appliances, construction and other parts that require high strength and precision. DC steel plates’ s low carbon content gives them excellent weldability and machinability. They can be processed through various welding and cutting processes, such as arc welding, gas shielded welding, laser cutting, etc., to meet the needs of material processing performance in different fields. Lastly, the carbon emission is low and meets the requirements of environmental protection and sustainable development.

Product Parameters

Product Name	DC01/DC02/DC03/DC04 Cold Rolled Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



Chemical Composition

C: max. 0,08 %

Mn: max. 0,40 %

P: max. 0,03 %

S: max. 0,03 %



Mechanical Properties

Steel Grade	Yield Strength (MPa) min	Tensile Strength (MPa) min	Elongation % min	Old Description
DC01	≤280	270-410	28	St 12-03
DC03	≤240	270-370	34	St 13-03
DC04	≤210	270-350	38	St 14-03
DC05	≤180	270-330	40	St 15-03
DC06	≤170	270-330	41	-
DC07	≤150	250-310	44	-



Scope of Application

DC01 can be used for simple forming work, for example Bending, embossing, beading and pulling.

DC03 is suitable for forming requirements like Deep drawing and difficult profiles suitable.

DC04 is suitable for high deformation requirements.

DC05 is a thermal forming grade, it is suitable for higher forming requirements.

DC06 is a grade for special deep drawing, suitable for the higher deformation requirements.

DC07, this superior deep drawing quality is suitable for highest deformation requirements.

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
