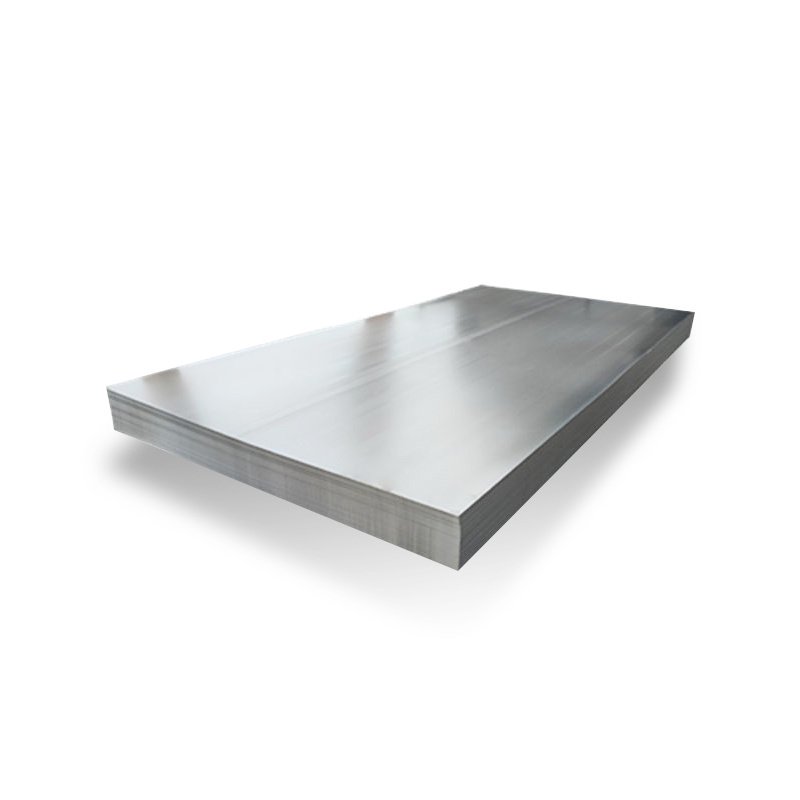

A588 Alloy Structural Steel Plate

A588 alloy structural steel plate not only has high weather resistance to resist atmospheric corrosion, but also has good mechanical properties. As a matter of fact, this steel plate can form a protective layer on the surface of the metal substrate through alloying of Cu, P, Cr, Ni, etc., thus having high atmospheric corrosion resistance. The steel plate has high tensile strength and yield strength at room temperature, and has good elongation properties. The steel plates are widely used in structural engineering fields such as bridges, high-rise buildings, towers, and transmission towers. Its weather resistance can provide long-term structural stability and strong resistance to atmospheric corrosion, thus extending the service life of the structure.

Product Parameters

Product Name	A588 Alloy Structural Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



Chemical Composition

A588	C	Mn	P	S	Si	Ni	Cr	Cu	V
Grade A	0.19 %	0.80-1.25 %	0.03 %	0.03 %	0.30-0.65 %	0.40 %	0.40-0.65 %	0.25-0.40 %	0.02-0.10 %
Grade B	0.20 %	0.75-1.35 %	0.03 %	0.03 %	0.15-0.50 %	0.50 %	0.40-0.70 %	0.20-0.40 %	0.01-0.10 %
Grade C	0.17 %	0.50-1.20 %	0.03 %	0.03 %	0.25-0.50 %	0.40 %	0.40-0.70 %	0.30-0.50 %	-



Mechanical Properties

Thickness	Yield Strength (Ksi)	Tensile StrengthMin (ksi)	Min. 2" Elongation %	Min. 8" Elongation %
Below 4 mm	50	70	21	18
4in. - 5in.	46	67	21	-
5in. - 8in.	42	63	21	-



Scope of Application

ASTM A588 alloy steel has many applications: outdoor sculpture, crane, bridge, rail car, transmission tower, highway pole and shipbuilding.



Equivalent Material

American Standard ASTM A588	ASME SA588	German Standard DIN, WNr	United Kingdom BS	Italy UNI	European Standard EN
A588 Grade A	SA588 Grade A	WTSt 52-3	WR 50 C	Fe510 D2K1	S355J2 G1W

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
