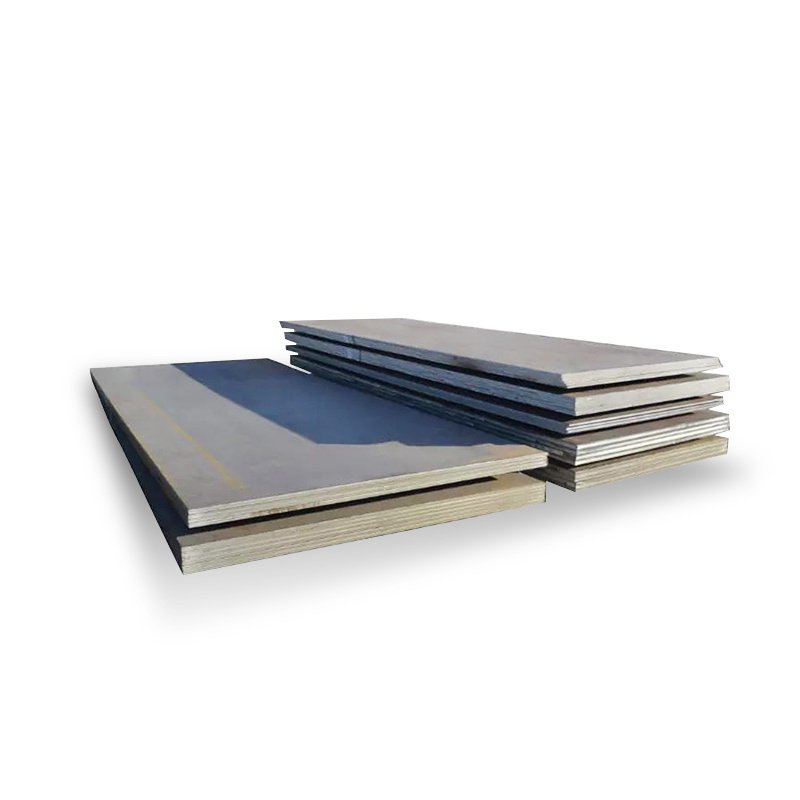

DIN 17155 Pressure Vessel Steel Plate

DIN 17155 pressure vessel plate not only has very high strength but also has very good toughness, wear resistance, fatigue resistance, impact resistance, easy welding processability and cold forming performance. DIN 17155 pressure vessel steel plate is widely used in gas, petrochemical and other industries, especially suitable for manufacturing boilers, medium and high temperature heat-resistant pressure vessels, heat exchangers, spherical tanks, separators, nuclear reactor vessels, oil and gas tanks, liquid oil storage tanks, hydraulic Bracket etc.

Product Parameters

Product Name	DIN 17155 Pressure Vessel Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



Chemical Composition

DIN 17155	C	Si	Mn	P	S	Al	Cr	Cu	Ni	Mo
15Mo3	0.12-0.20	0.10-0.35	0.40-0.90	0.035	0.03	-	0.25	0.3	0.3	0.25-0.35
13CrMo44	0.08-0.18	0.10-0.35	0.40-0.10	0.035	0.03	-	0.70-1.10	0.3	-	0.4-0.6
17Mn4	0.14-0.20	0.4	0.90-1.40	0.035	0.03	0.02	0.25	0.3	0.3	0.1
10CrMo9-10	0.06-0.15	0.5	0.40-0.70	0.035	0.03	-	2.00-2.50	0.3	-	0.9-1.0
19Mn6	0.2	0.5	0.90-1.70	0.03	0.025	0.02	0.3	0.3	0.3	0.08
HI	0.16	0.35	0.40/1.20	0.03	0.025	0.02	0.3	0.3	0.3	0.08
HII	0.2	0.35	0.50-1.30	0.035	0.03	0.02	0.25	0.3	0.3	0.1



Scope of Application

DIN 17155 pressure vessel steel plates are widely used in gas, petrochemical and other industries, especially in the manufacture of boilers, medium and high temperature heat-resistant pressure vessels, heat exchangers, spherical tanks, separators, nuclear reactor vessels, oil and gas tanks, liquid oil storage tanks, hydraulic supports, etc.



Equivalent Material

DIN 17155	Material No.	EN 10028-2	UNI 5869	BS 1501	A 36087	ASTM	JIS G3115
HI	1.0345	P235GH	Fe360 - 1KW	161 Gr.360 / 164 Gr.360	A37RCI	A285 Gr.C / A414 Gr.C / A516 Gr.55	SPV 24
HII	1.0425	P265GH	Fe410 - 1KW	161 Gr.400 / 164 Gr.400 / 224 Gr.400	A42RCI	A414 Gr.E / A516 Gr.60	-
17Mn4	1.0481	P295GH	Fe460 - 1KW	224 Gr.490	A47RCI	A414 Gr.F / A516 Gr.65	SPV 32
19Mn6	1.0473	P355GH	Fe510 - 1KW	-	A52RCI	A414 Gr.G	SPV 36
15Mo3	1.5415	16Mo3	15Mo3	1503 - 243 B	16Mo3	A204 Gr.B	-
13CrMo44	1.7335	13CrMo4-5	14CrMo4.5	620 Gr.27	14CrMo4.5	A387 Gr.12	-
10CrMo910	1.7380	10CrMo9-10	-	622 Gr.31	-	A387 Gr.22	-

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
