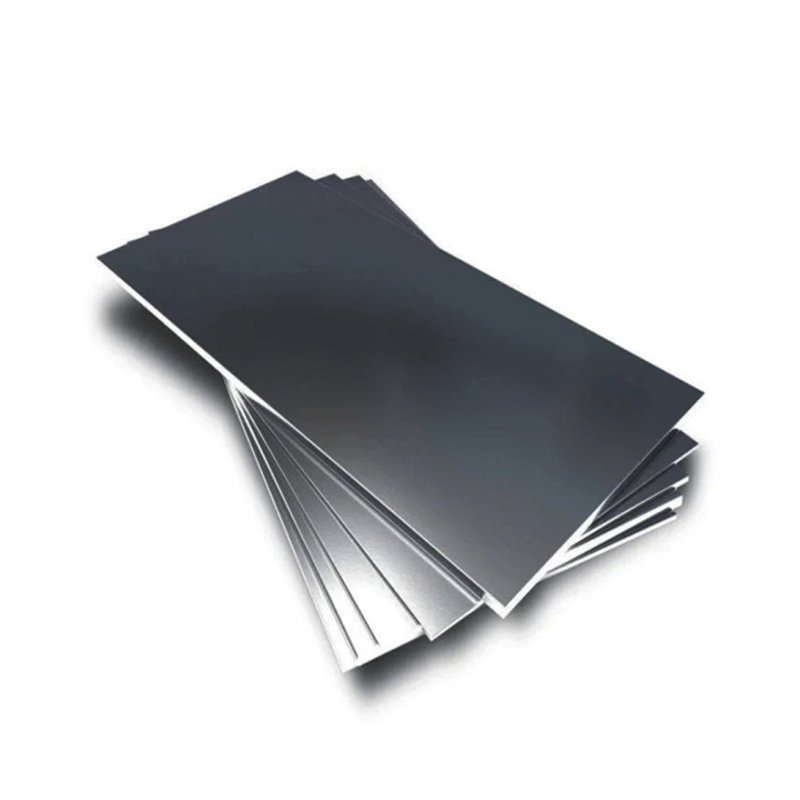

409 Stainless Steel Plate

The chemical composition of 409 stainless steel sets it apart from other types of stainless steel.  It is mainly composed of iron, with large amounts of chromium and small amounts of carbon, manganese, silicon and nitrogen.  Iron is the primary element of 409 stainless steel, providing its strength and stability.  Chromium gives the alloy corrosion resistance and helps form a protective oxide layer on the surface.  Carbon helps increase the material's hardness and wear resistance.  Manganese acts as a stabilizer to prevent excessive grain growth during heat treatment.  Silicon enhances oxidation resistance while minimizing scaling at high temperatures.  Nitrogen improves mechanical properties such as tensile strength and yield strength.  This unique combination of elements gives 409 stainless steel excellent thermal expansion capabilities, making it suitable for high-temperature applications without compromising its structural integrity or dimensional stability.  Its chemical composition also provides good solderability, thus simplifying the manufacturing process.

Product Parameters

Product Name	409 Stainless Steel Plate
Type	Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application	Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging, Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.
Certificate	ISO, SGS, BV, etc.
Production Technology	Hot Rolling, Cold Rolling
Edge Processing	Edging, Trimming



Chemical Composition

C	Si	Mn	Cr	Ni	S	P
≤ 0.08	≤1.0	≤1.0	10.5～11.75	≤ 0.5	≤ 0.045	≤ 0.045



Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥360	≥175	≥25	≤ 162HBW



Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(NΩ.m)
7.80	200	11.0	25.8	600

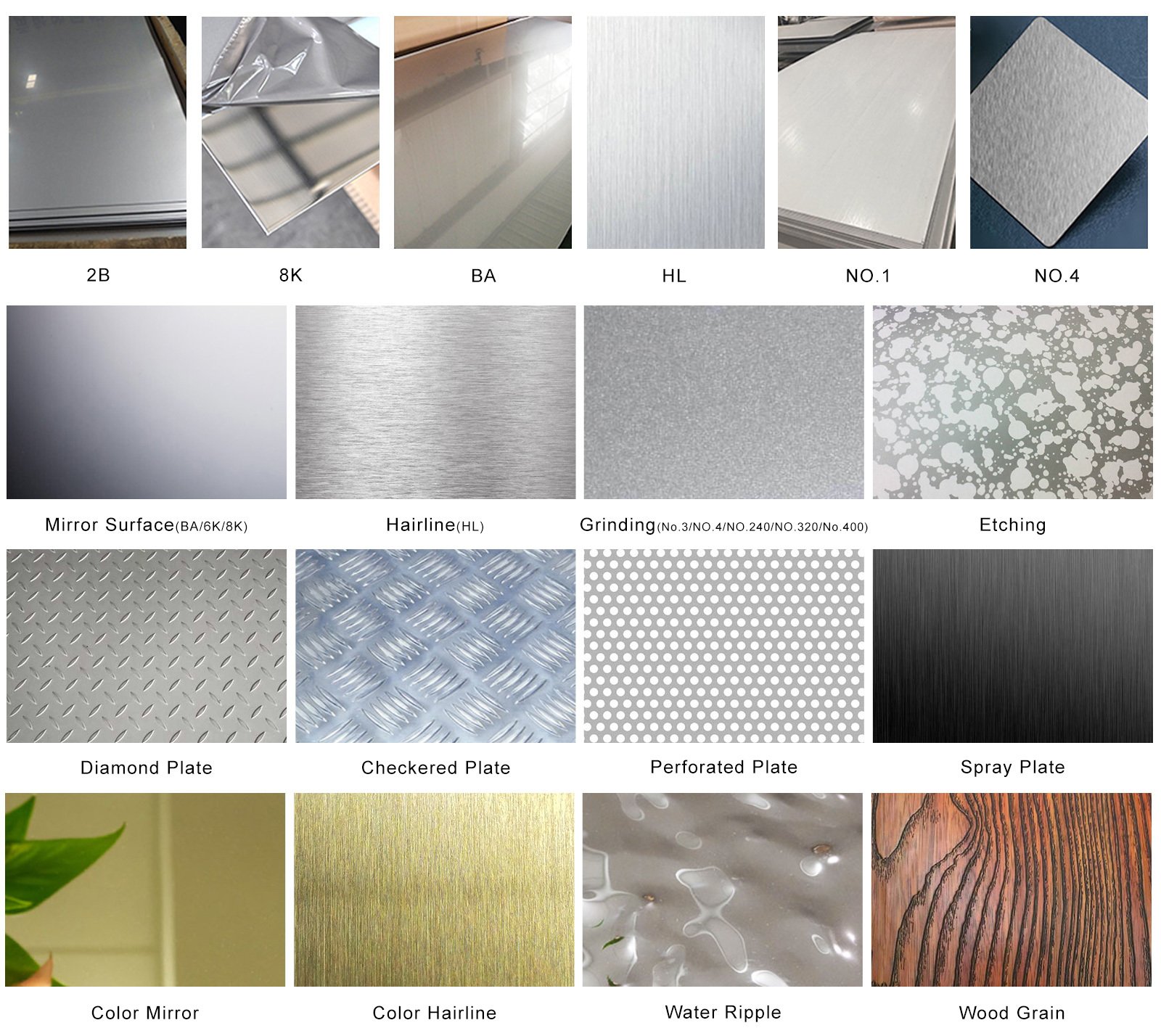

Surface Selection

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
